Krone EasyCut B 970 - Folding up the Front Guard; Fold down the Front Guard

Operation 8
Front guard 8.1
EasyCut B 970
Original Operating Instructions 150000711_01_en 49
8.1.1 Folding up the front guard

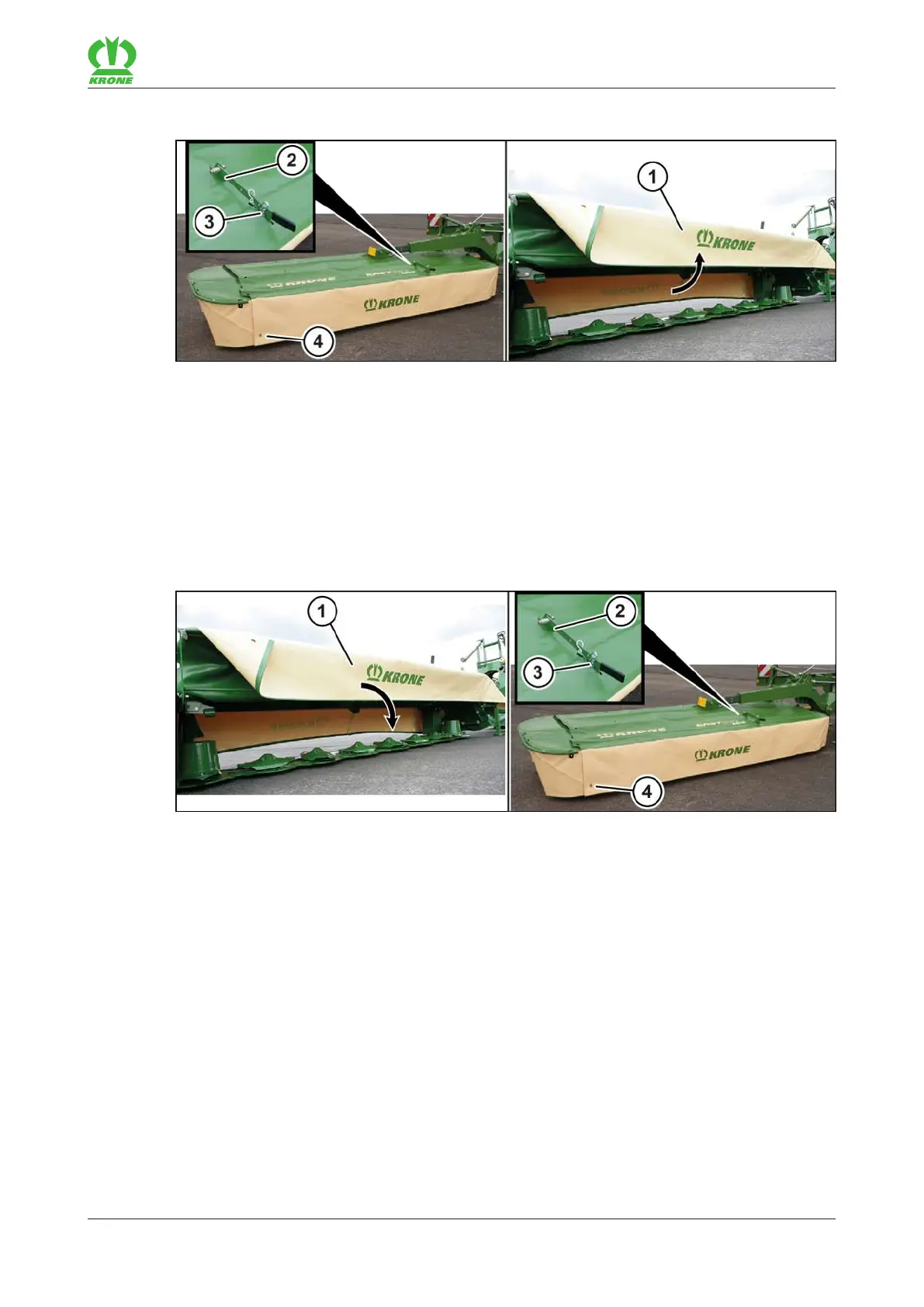

KMG000-006
ü The machine is in the working position, refer to page52.
ü The machine is shut down and safeguarded, refer to page24.
 Open the turnlock fasteners (4).
 Pull the spring cotter pin (3) and pull the locking (2) off the bolt.
 Fold up the front guard(1), place the locking(2) onto the bolt and secure it with the spring
cotter pin(3).
8.1.2 Fold down the front guard
KMG000-077
ü The machine is in the working position, refer to page52.
ü The machine is shut down and safeguarded, refer to page24.
 Pull the spring cotter pin (3) and pull the locking (2) off the bolt.
 Fold down the front guard(1), place the locking(2) onto the bolt and secure it with the
spring cotter pin(3).
 Close the turnlock fasteners (4).
