8 Operation
8.2 Side guard
50
EasyCut B 970
Original Operating Instructions 150000711_01_en
8.2 Side guard

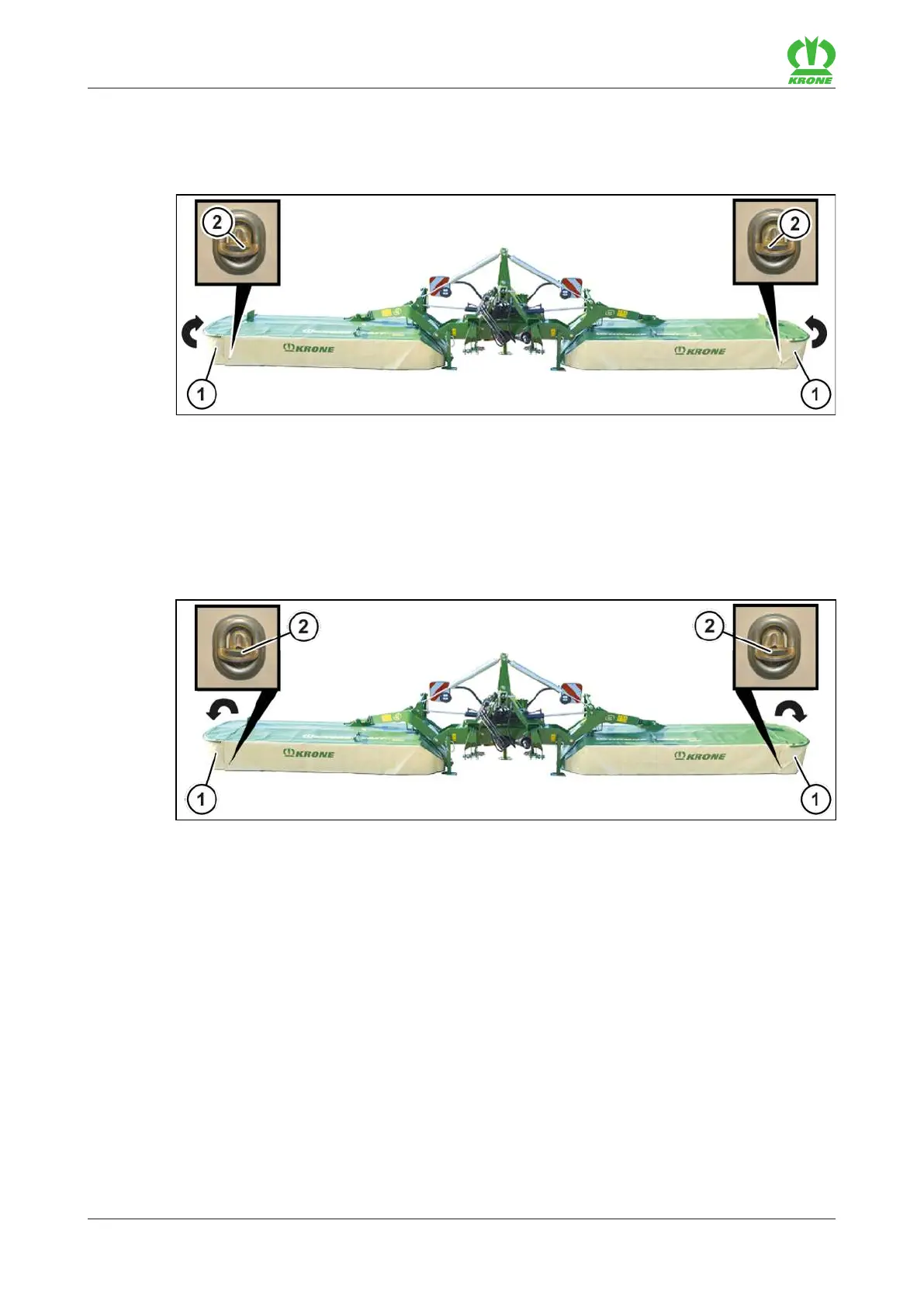

8.2.1 Folding up side guard (transport position)
KMG000-058
ü The machine is in the working position, refer to page52.
ü The machine is shut down and safeguarded, refer to page24.
 Open the turnlock fasteners (2).
 Fold up the side guard(1) until the side guard(1) engages in the latch.
8.2.2 Folding down side guard (working position)
KMG000-027
ü The machine is in the working position, refer to page52.
ü The machine is shut down and safeguarded, refer to page24.
 Fold down the side guard (1).
 Ensure that the side guard(1) is secured by the locking, refer to page63.
 Close the turnlock fasteners(2).
