5 Control and Display Elements

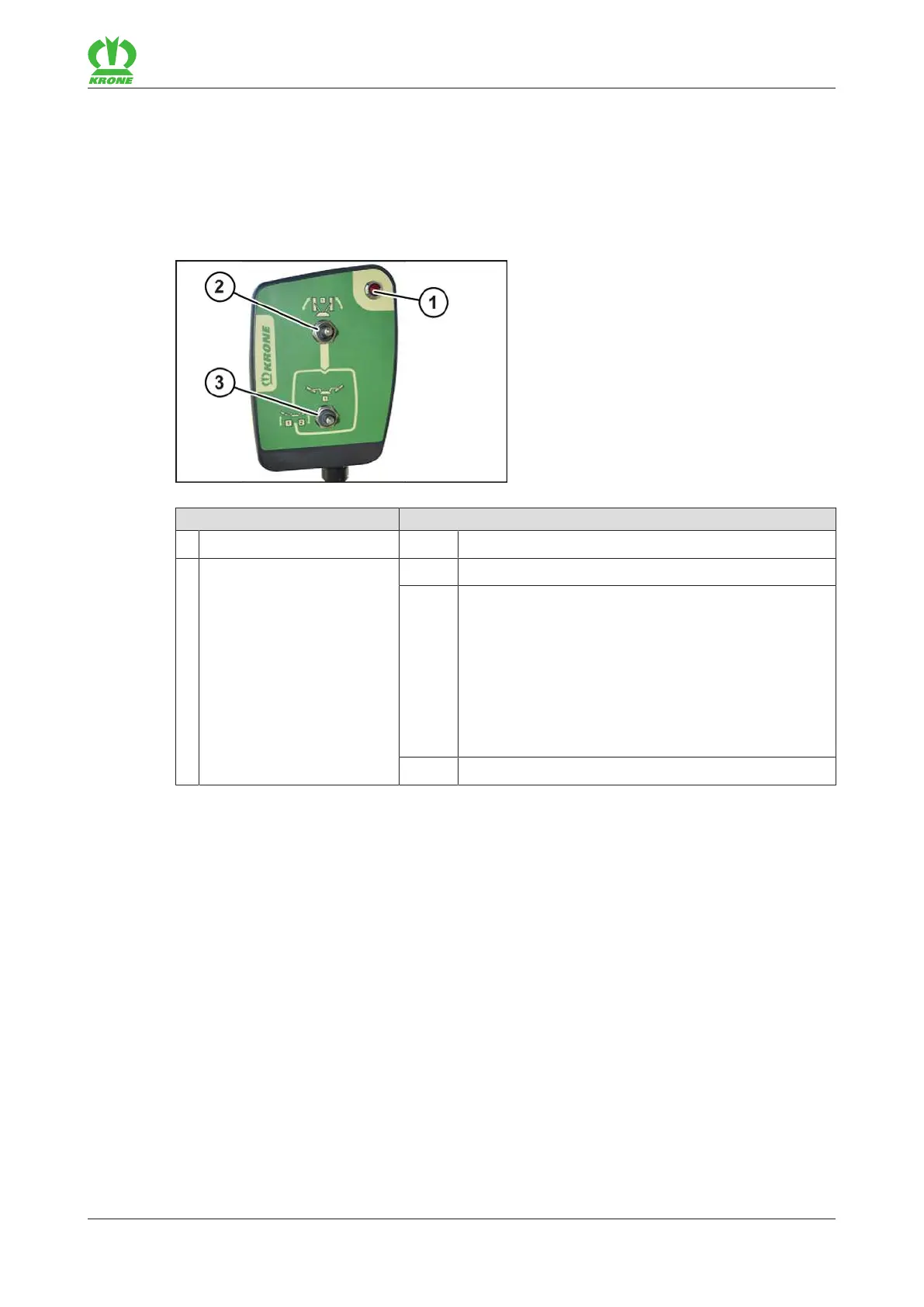

5.1 Operation panel
The operation panel is used to preselect different functions of the machine. The actual functions
are executed via the control units of the tractor. The following table explains the function of the
individual switches.
KMG000-001
Designation Function
1 Red indicator lamp Is lit when the operation panel is switched on.
2 Toggle switch Middle Operation panel OFF (warning light (1) OFF)
Top Double-acting control unit (2+/2-)
(2-)
Lowers both mowers from transport position to head-
land position.
(2+)
Raises both mowers from headland position to trans-
port position.
Bottom Activates the lower toggle switch (3).
