9 Driving and transport
9.1 Prepare the machine for road travel
56
EasyCut B 970
Original Operating Instructions 150000711_01_en

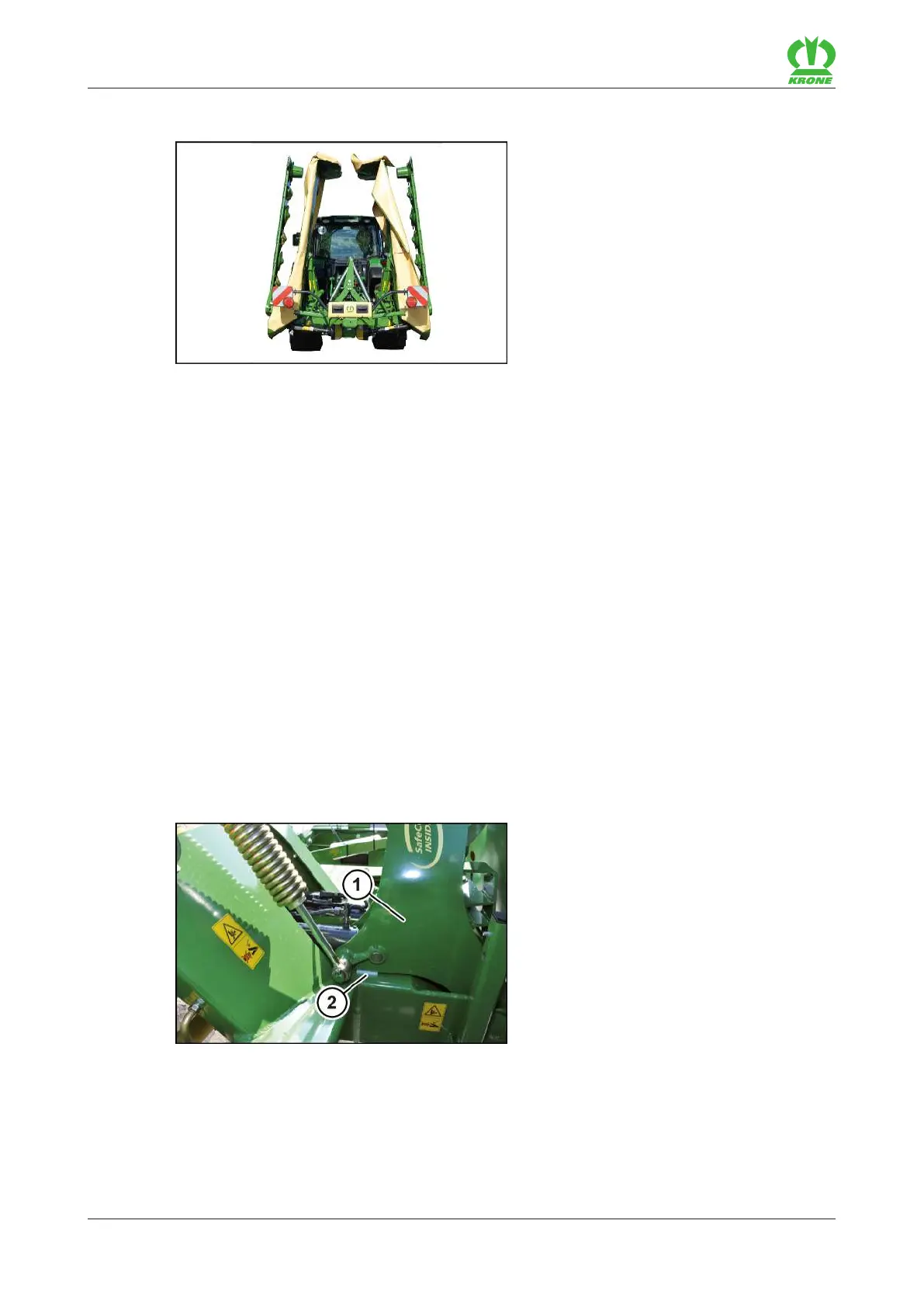

9.1 Prepare the machine for road travel
KMG000-041
ü The machine is completely and correctly hitched to the tractor, refer to page43.
ü The machine is shut down and safeguarded, refer to page24.
ü The hydraulic hoses are connected, refer to page44.
ü The operation panel is connected, refer to page45.
ü The universal shaft is mounted, refer to page46.
ü The front guards are closed and locked, refer to page49.
ü The side guards are folded up, refer to page50.
ü The parking jacks are in the transport position, refer to page51.
ü The road lighting has been connected, tested and is functioning properly, refer to page46.
ü The machine is in the transport position, refer to page53.
ü The outrigger arms have been fully retracted and locked.
ü The stop cocks on the hydraulic hoses are closed, refer to page52.
ü The control units on the tractor are in neutral position and locked.
ü The operation panel is switched off, refer to page52.
 Lower the machine via the rear hydraulics until the maximum transport height reaches or
falls below 4 m.
 Ensure adequate ground clearance.
9.2 Checking transport position of outrigger arms
KMG000-091
The mowers are secured against unintentional lowering by folding them up as far as the limit
stop (2).
 Make certain after swivelling the mowers up that the outrigger arms (1) right and left are fully
lowered and that they rest on the end stops (2).
