8.3 Operate the support jack
8.3.1 Move parking jacks into transport position

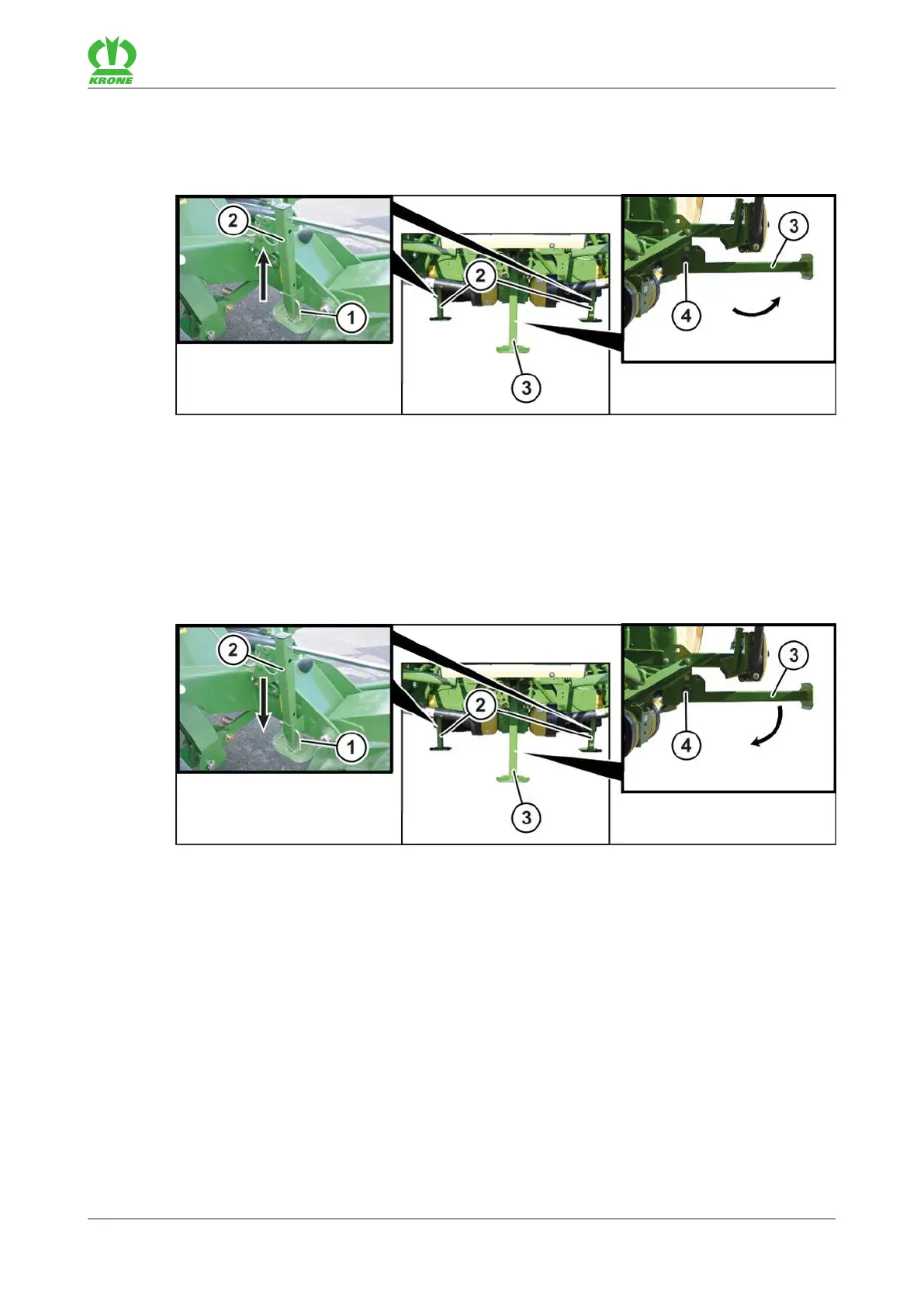

KMG000-015
 Raise the machine via rear hydraulics so that the support jacks can be swivelled up.
 Shut down and safeguard the machine, refer to page24.
 Pull the bolt (1), push the front support jack (2) upwards and lock it by means of the bolt (1).
 Pull the tension bar (4), swivel the rear support jack (3) upwards and lock it by means of the
tension bar (4).
8.3.2 Move parking jacks into support position
KMG000-016
 Raise the machine via rear hydraulics until the support jacks can be swivelled down.
 Shut down and safeguard the machine, refer to page24.
 Pull the bolt (1), push the front support jack (2) downwards and lock it by using the bolt (1).
 Pull the tension bar (4), swivel the rear support jack (3) downwards and lock it by using the
tension bar (4).
