Maintenance - General Information 11
Venting the friction clutch 11.4
EasyCut B 970
Original Operating Instructions 150000711_01_en 71

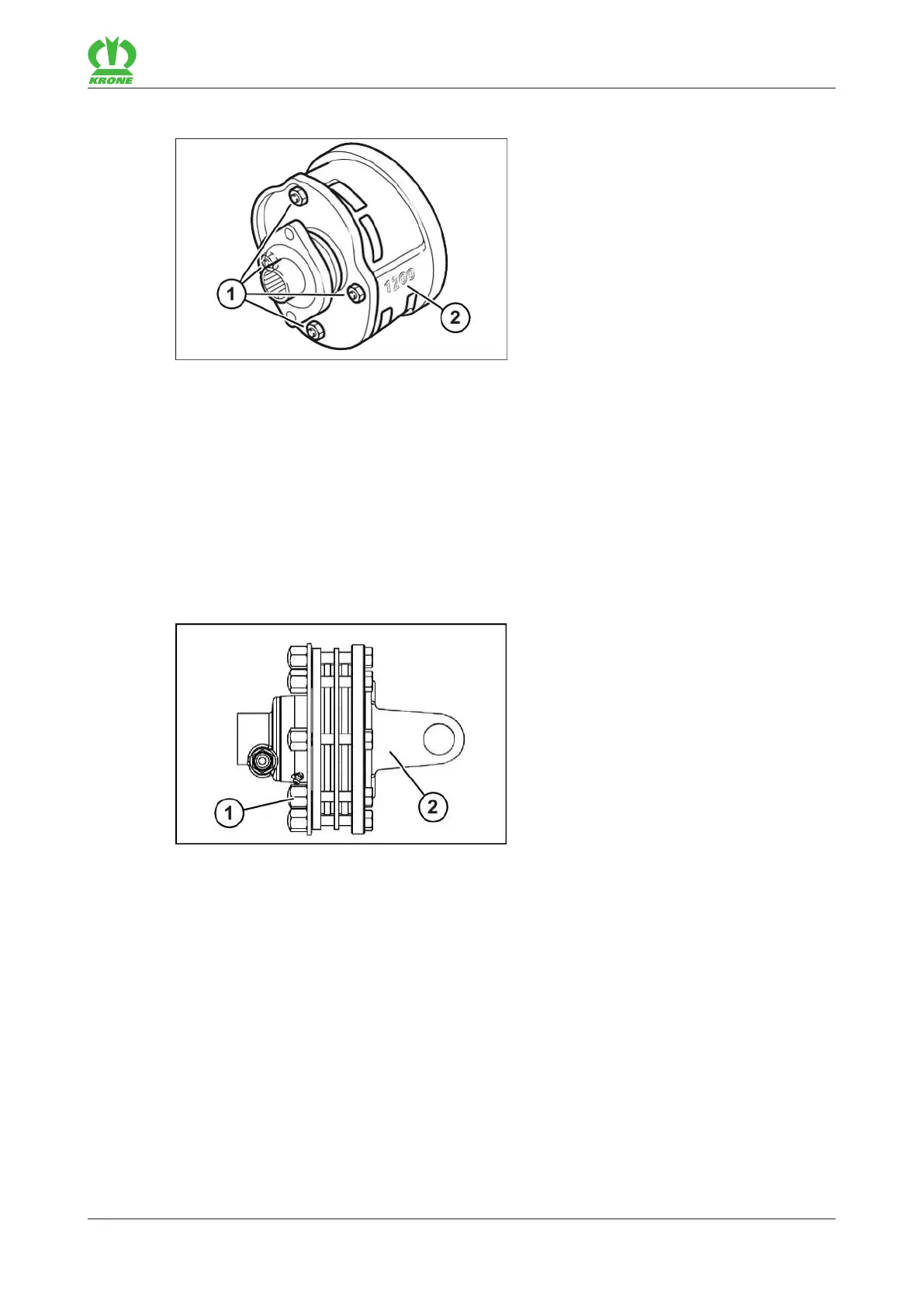

Venting friction clutch (Walterscheid)
KM000-072
ü The machine is in the working position, refer to page52.
ü The machine is shut down and safeguarded, refer to page24.
 Remove the universal shaft.
 Tighten the nuts (1) evenly.
ð The friction discs are relieved.
 Turn the friction clutch (2).
 Turn the nuts (1) back as far as the thread run-out.
Venting friction clutch (ByPy)
KM000-603
ü The machine is in the working position, refer to page52.
ü The machine is shut down and safeguarded, refer to page24.
 Remove the universal shaft.
 Loosen the cap nuts(1) uniformly but do not remove them.
ð The friction discs are relieved.
 Turn the friction clutch(2).
 Screw in the cap nuts(1) completely.
