14 Maintenance - Cutterbar
14.8 Checking oil level
88
EasyCut B 970
Original Operating Instructions 150000711_01_en
KM000-284
 Comply with the safety routine "Safe execution of oil level check, oil and filter element
exchange", refer to page25.
 Shut down and safeguard the machine, refer to page24.

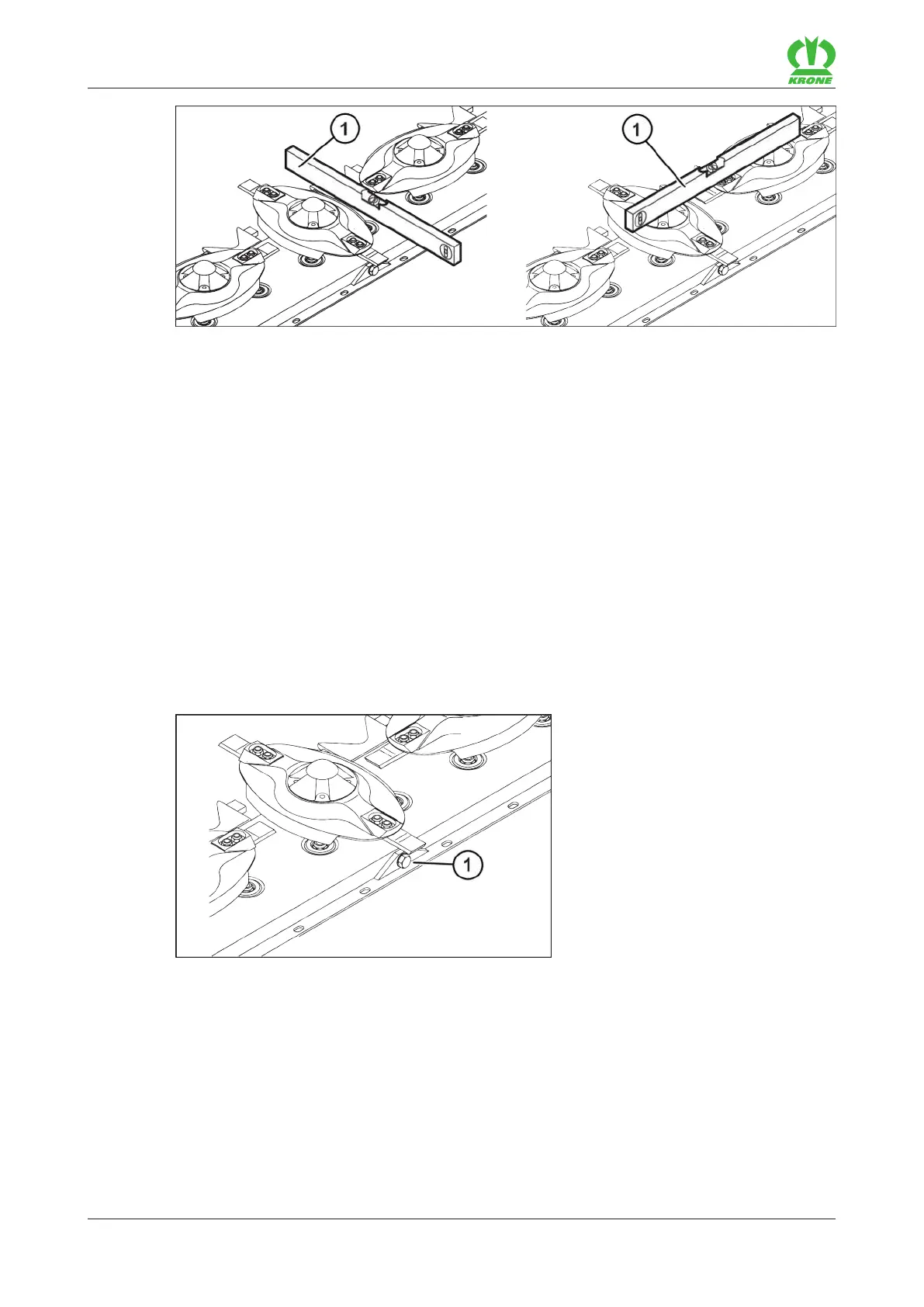

Aligning cutterbar in transverse direction (direction of travel)
 Place the spirit level (1) diagonally on the cutterbar.
 Align the cutterbar using the spirit level (1) and readjust, if necessary, via cutting height
setting, refer to page59.
Aligning the cutterbar in longitudinal direction
 Place the spirit level (1) on two cutting discs.
 Align the cutterbar using the spirit level (1); align it horizontally using wedges, if necessary.
Checking oil level
KM000-036
 Release the locking screw of the inspection hole (1).
ð The oil level must reach up to the inspection hole (1).
If the oil reaches the inspection hole (1):
 Mount the locking screw of the inspection hole (1),refer to page69.
If the oil does not reach the inspection hole (1):
 Top up new oil via the inspection hole (1) up to the inspection hole (1).
 Mount the locking screw of the inspection hole (1),refer to page69.
