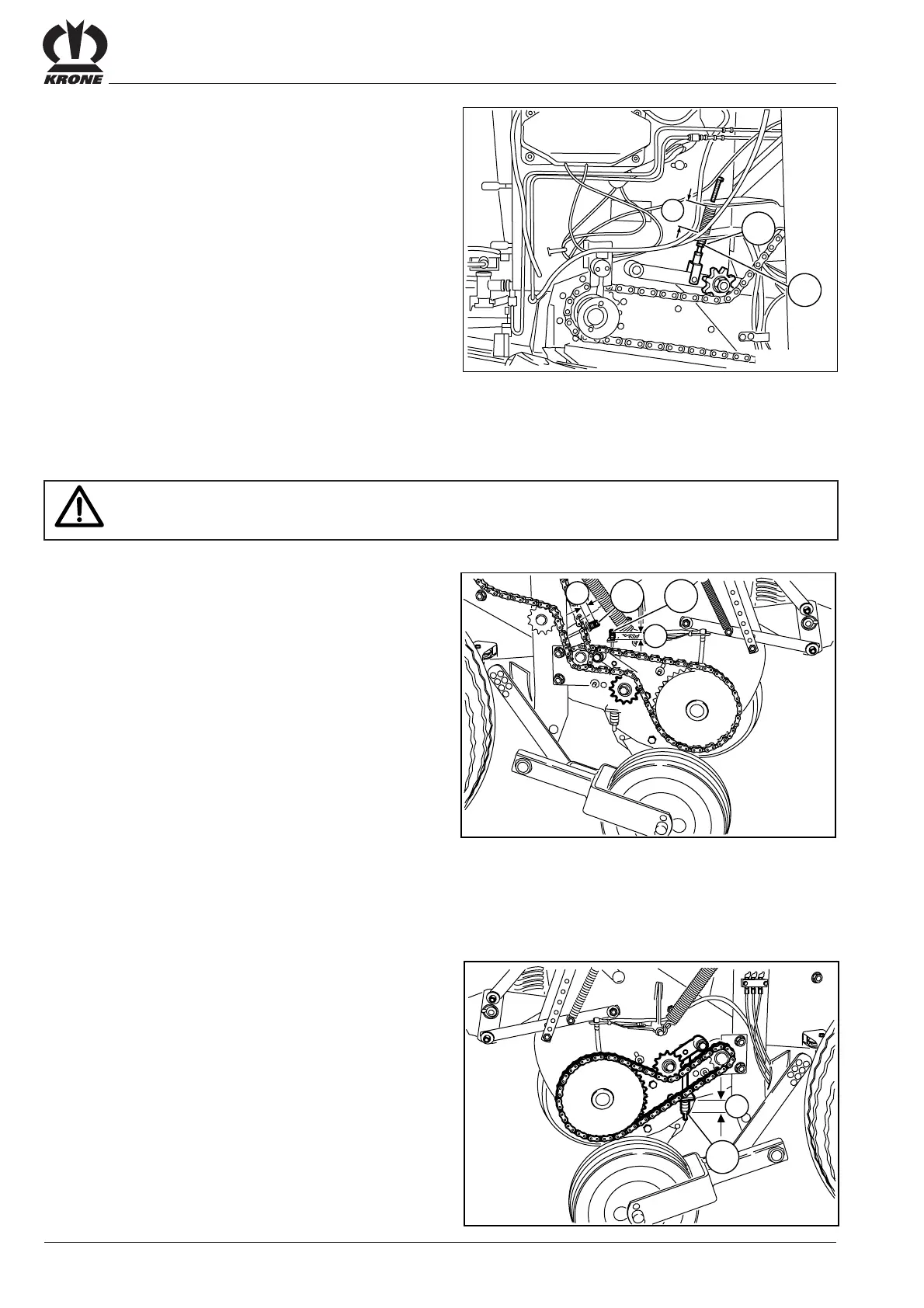

9.4.3 Setting Drive Chain Tension
Front Floor Conveyor Drive
The front floor conveyor drive is located on the left-hand
side of the machine.
length of stretched spring a = 80 - 90 mm.
• Slacken lock nut (1).
• Rotate the nut (2) until a = 80 - 90 mm.
• Tighten lock nut (1).
Filling Auger Drive
The filling auger drive is located on the pick-up on the
left-hand side of the machine.
length of stretched spring a = 30 mm.
• Slacken the lock nut.
• Rotate the nut (1) until a = 30 mm.
• Tighten the lock nut.
Pick-Up
Be careful! Risk of pinching!
Lower the pick-up onto the ground.
Pick-Up Main Drive
The main drive is located on the pick-up on the right-hand
side of the machine.
length of stretched spring a = 30 mm.
• Slacken the lock nut.
• Rotate the nut (1) until a = 30 mm.
• Tighten the lock nut.
Pick-Up Drive
The pick-up drive is located on the pick-up on the right-
hand side of the machine.
length of stretched spring b = 30 mm.
• Slacken the lock nut.
• Rotate the nut (2) until b = 30 mm.
• Tighten the lock nut.
RBV06280
1
a
RBV06200
b
a
1 2
RBV05020
2
1
a
