V - 8
Basic Settings and Operation

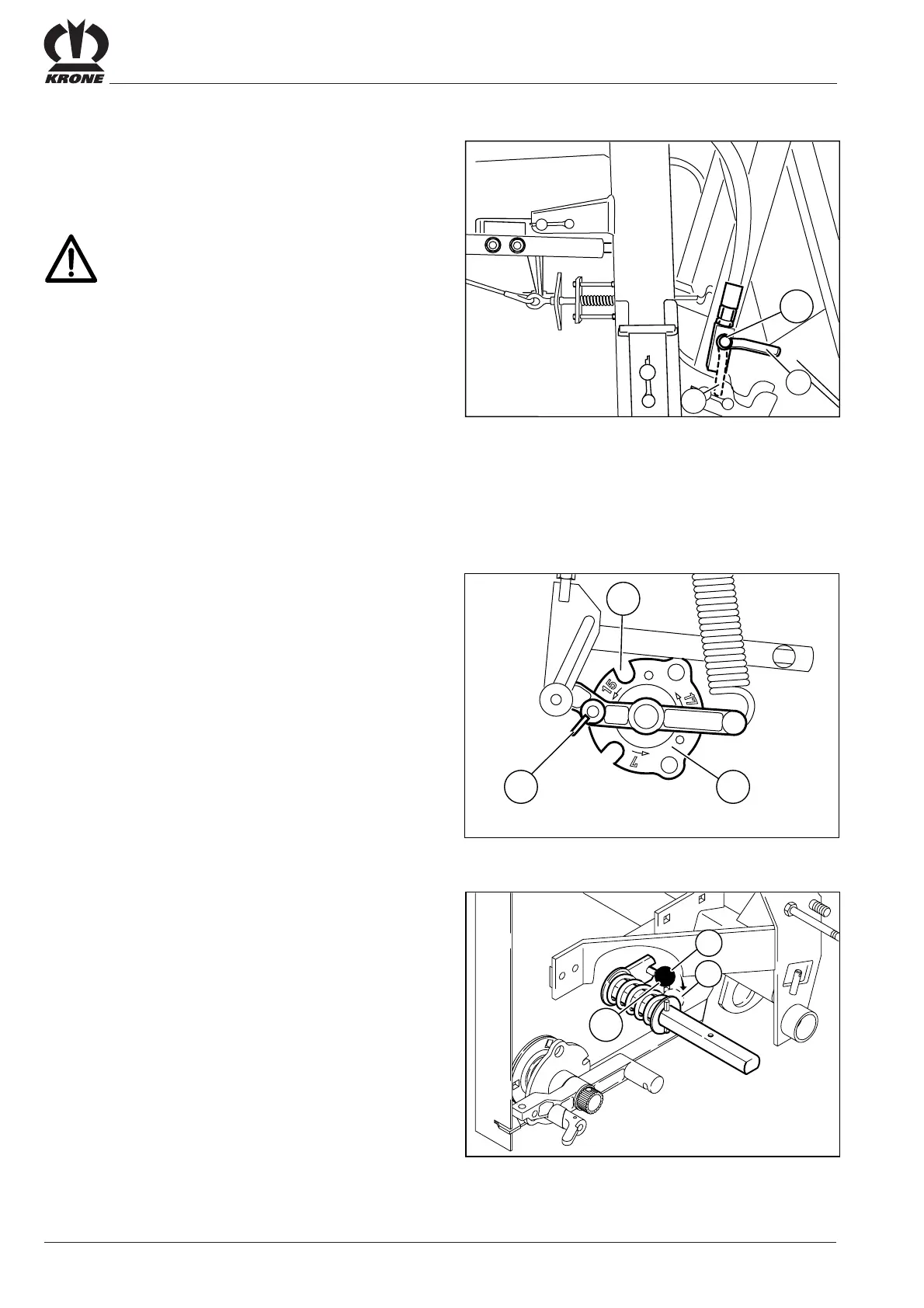

5.3.8 Replacing Blades
The cutting system blades are accessible from the bale
chamber.
• Open the tailgate.
Risk of accidents!
Secure the open tailgate against
unintentional shutting.
• Rotate the shut-off tap (1) of the left-
hand lifting cylinder from position (b) to
position (a).
Switch the blade control shaft mechanically to the
blade zero position
• Disengage the locking lever (2).
• Rotate the blade control shaft using the multi-purpose
key until the selector disc (1) is set at “0”.
The “0” setting is located between any 2 blade
settings.
Unlock the blade shaft:
• pull the locking pin out of the locking device by pulling
the handle (1) and rotate into position (b).
The supplied key can also be used for locking /
unlocking the blade shaft.
VP-1-058
1
"0"
2
VP-1-068
1
a
b
1
RP-99-018
b
a
