V - 10
Basic Settings and Operation

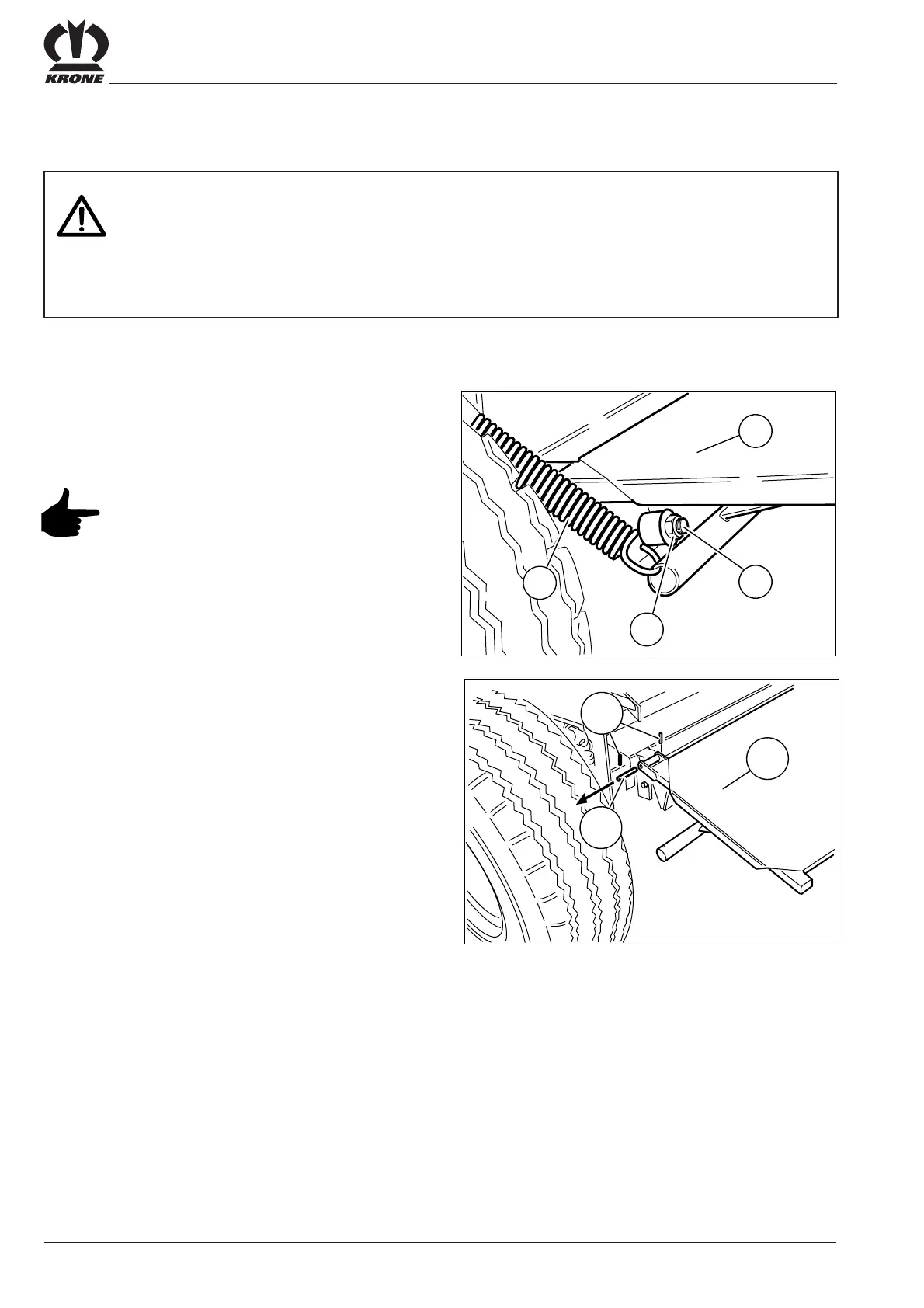

5.5 Straw Trap Attachment and Rem-
oval
Under certain operating conditions, e.g. extreme inclines,
it may be advisable to detach the bale ejector (3).
• Detach the nuts (1) from the threaded rod (2) on both
sides.
Caution! The ejector will kick upwards.
• Raise the ejector plate and detach the springs (4).
• Do installation work only when the machine is at a standstill.
• Switch off the motor. Remove the ignition key.
• The tailgate must be open in order to work on the straw trap. Make sure that the shut-off
tap on the left-hand tailgate cylinder is set in the closed position.
• The straw trap weighs approximately 40 kg. For this reason, be careful to avoid any pinch
points during installation or adjustment.
• Remove the dowel pins (2) on both sides.
• Remove the pins (1) on both sides.
• Detach the straw trap (3) by pulling backwards.
Attach the straw trap in reverse order.
RP-A-018
1
2
3
4
RBR09201
1
3
2
