VII - 1
Control unit Medium
• When doing any assembly work on the round baler, always disconnect the voltage feed
to the control unit.
• Repair work on the hydraulic system should be carried out by trained specialists only!
• When assembling the control unit make certain that the connecting cables to the round
baler do not tense during turning or come into contact with the tractor wheels.
7 Control unit Medium (Electro-Hydraulic)
Control unit Medium

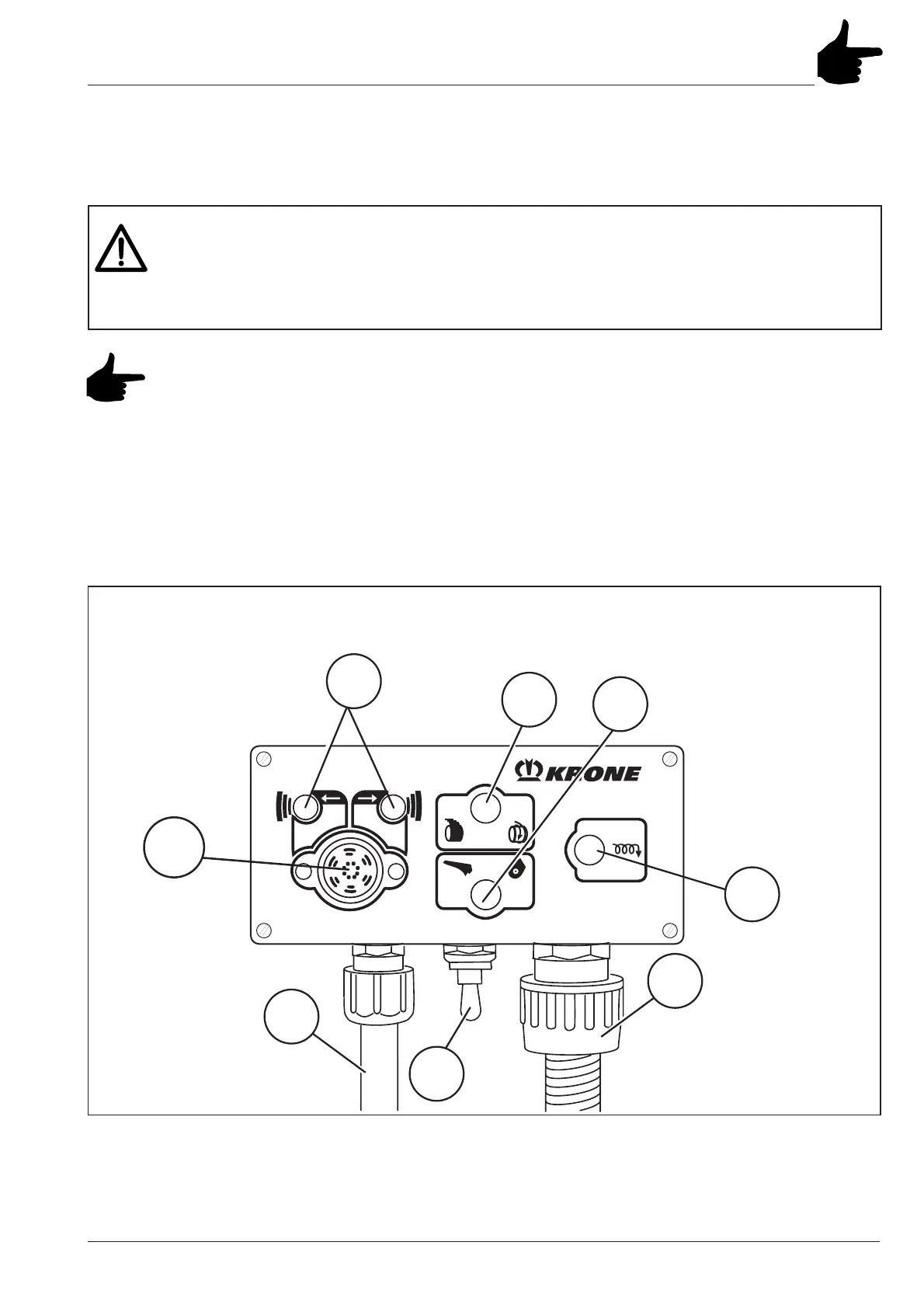

7.1 General Information
5. Indicator light for left/right side baling pressure
6. Wrapping mode switch net / twine
7. Valve control: 0-blade position / pick-up
8. Wrapping start button
1. ON/OFF switch
2. Control line to baler
3. Power supply
4. Horn
Special Safety Instructions
When doing welding work on the round baler or tractor with attached round baler,
overvoltage could cause damage to the electronic components of these controls. For
this reason, detach the controls from the tractor and disconnect the cable connections.
RP600006
3
2
1
4
6
8
5
7
