IV - 5
Use

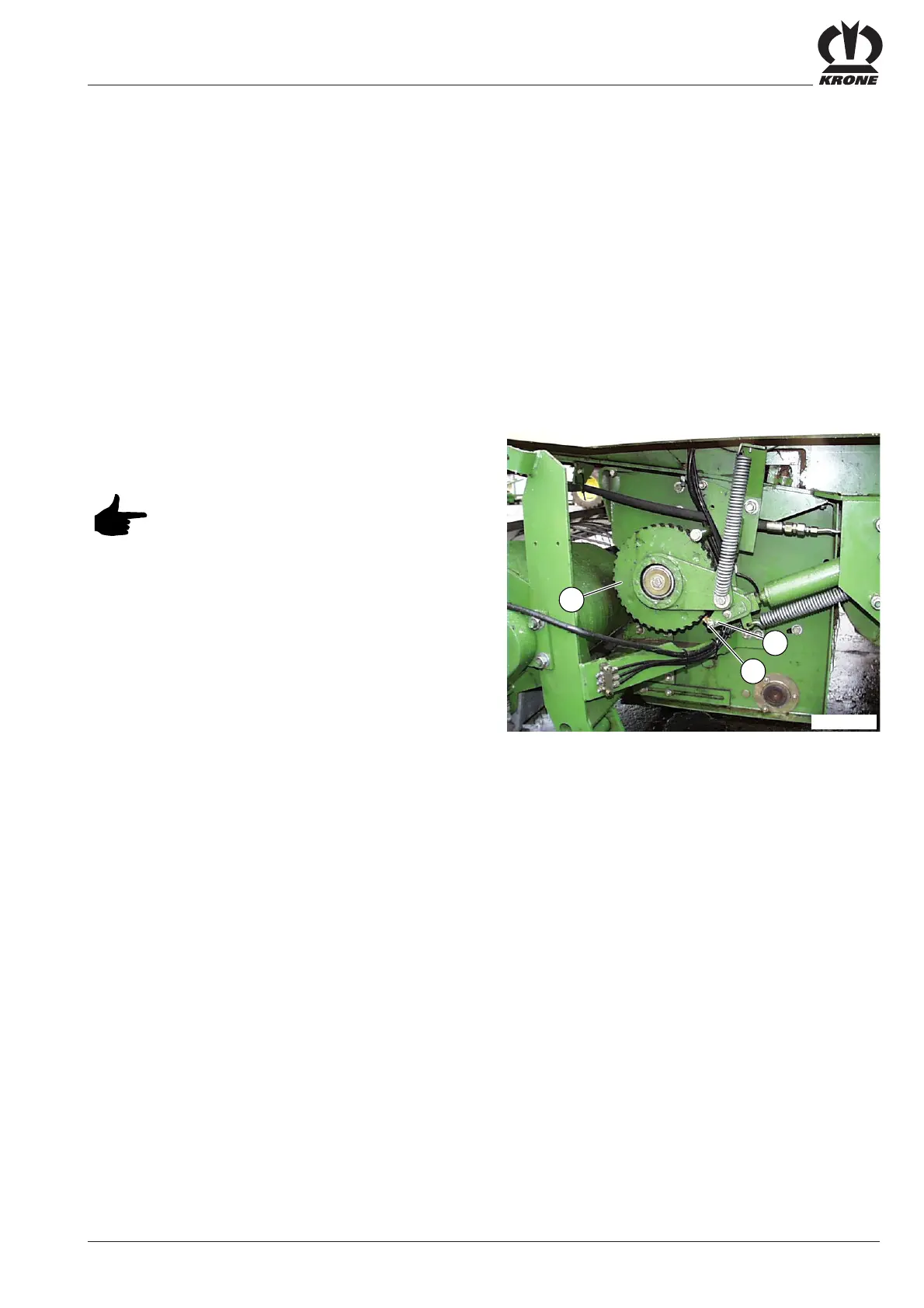

4.6 Rotor reversing device
The rotor reversing device is located on the left hand
machine side behind the front guard. This device permits
the rotor to be reversed hydraulically to clear a blockage.
For this proceed as follows:
• Switch off the power take-off (Move the PTO speed
adjusting lever of the tractor to neutral).
• Open the shut-off tap located on the hydraulic hose of
the control valve.
• Give pressure on the hydraulic ram by operating the
control valve to reverse the cutting rotor. Then set the
control valve to LOWERING to permit ratchet (1) to be
pulled back.
• Repeat this procedure approx. 4 to 5 times. The rotor
will be reversed by abt. ¼ turn.
• Back up the round baler and remove the obstruction.
Use protective gloves to clear the blockage.
Set the control valve again to LOWERING
to permit ratchet (1) to be released from
notched disc (2).
• Close the shut-off tap again.
• Switch on the power take-off and continue to work with
the baler.
Ratchet (1) is secured by shearbolt (3) which can break in
case of an operating error.
Shearbolt M 6 x50 DIN 24014 (PN 901 412-0) nut M6 (PN
908 704-1)
2
3
CP100003
1
