IV - 4
Use

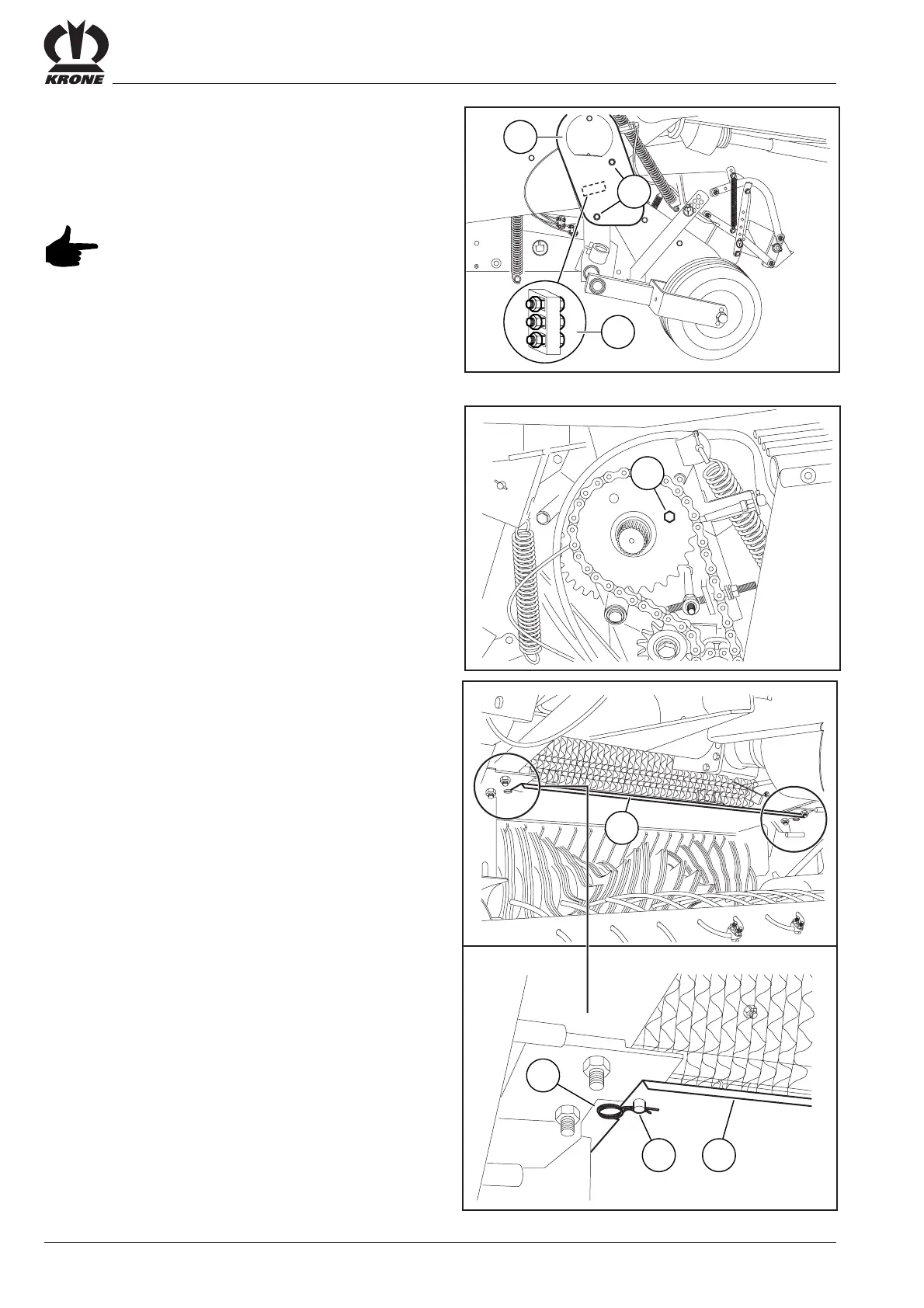

4.5 Splashguard
Remove the splashguard (2) when using the machine in
straw.
• Remove spring pin (1) from fastening bolt (3) (on both
sides).
• Remove splashguard (2).
Reassemble when using the machine in silage or hay.
KR201180
1
3
2
2
Drive chain for pick-up with shear bolt
To protect against overload the pick-up drive and the feed
auger drive, which is located behind the guard (3), are
secured with a shear bolt at the upper chain wheel.
There are 3 replacement screws (2) on the
inside of the guard (3).
M10 x 35 EW 24017, DIN 933 8.8
(order no. 900 638).
• In case of malfunctioning dismantle fastening nuts (1).
Remove guard (3).
• Check condition of shear bolt (4) and replace, if
necessary.
• Attach guard (3).
4
KR201201
KR201141
1
2
3
