IX - 11
Maintenance

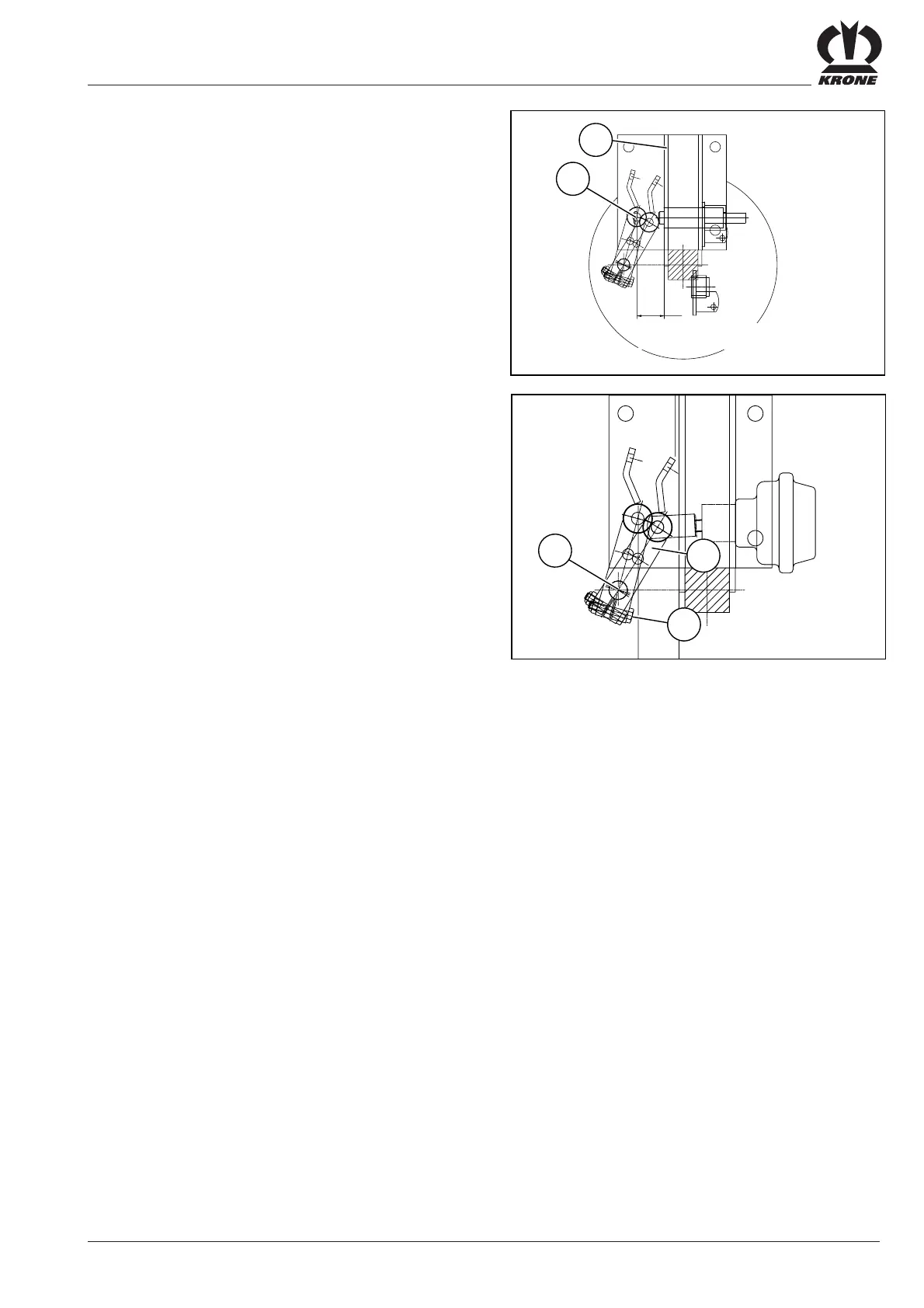

Single axle - hydraulic brake system
At an oil pressure of ca. 100 bar, the brake lever should be
ca. 55 mm from the plate (2) when in brake position.
This setting can be made at the brake shaft on the
profile:
• Remove Seeger circlip ring (1) and press the brake
shaft as far as possible towards the inside.
• Loosen screw (2).
• Pull off brake lever (3) and set.
• Tighten screw (2).
• Put Seeger circlip ring (1) back on.
Max. Bremshebelstellung
bei 100 bar
Hydraul. - Bremse
55 mm
RP-00-002
1
2
1
3
2
RP-00-003
Hydraulic air
brake system
max. brake lever
position at 100 bar
