CONTROLS 9

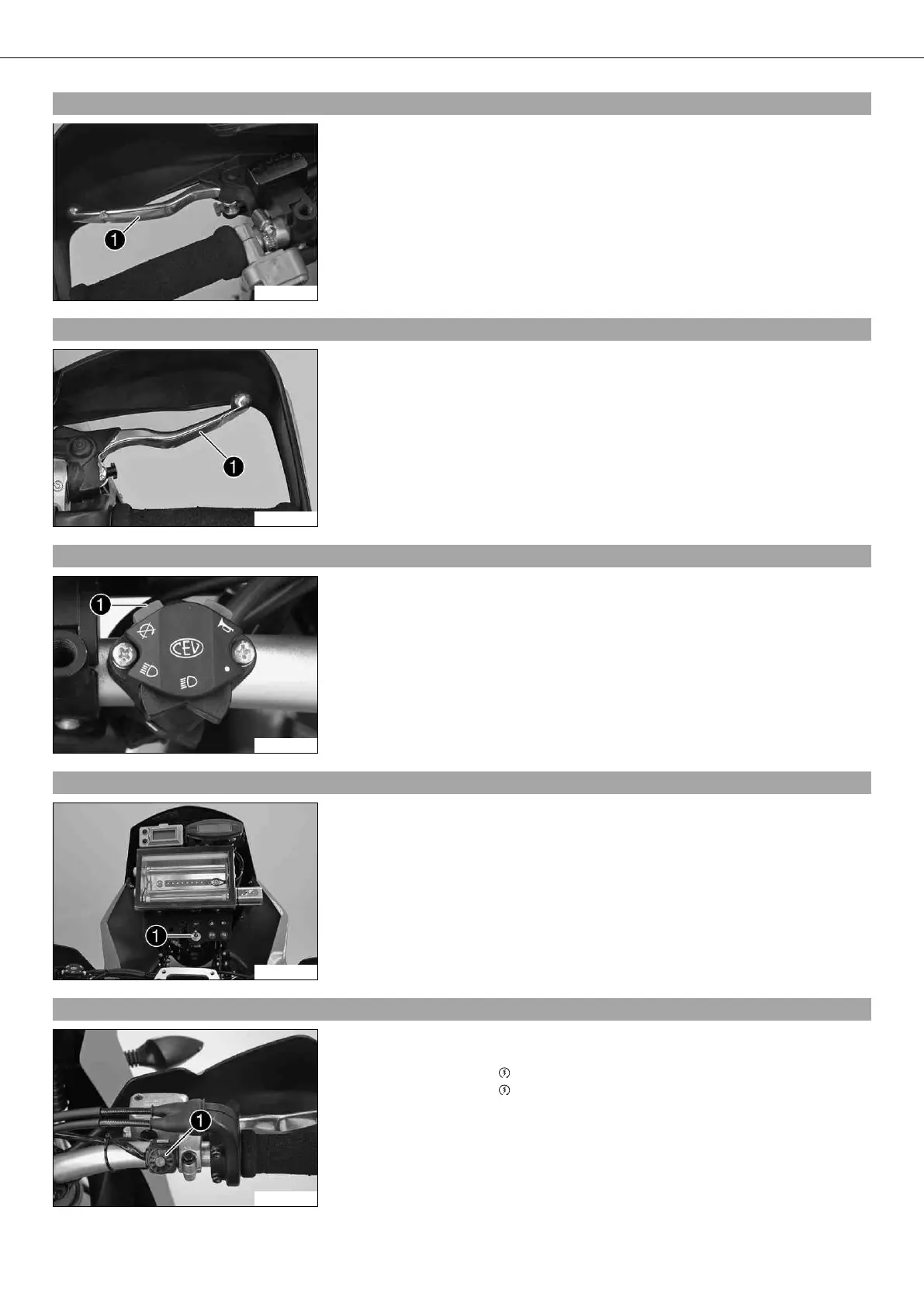

4.1Clutch lever
600006-10
The clutch lever is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
4.2Hand brake lever
400290-10
The hand brake lever is fitted on the right side of the handlebar.
The front brake is engaged using the hand brake lever.
4.3Short circuit button
600005-20
The short circuit button is fitted on the left side of the handlebar and has no func-
tion upon delivery.
4.4Ignition switch
600044-10
The ignition switch is located to the left of the indicator lamp on the instrument
support.
Possible states
• Ignition off – Ignition switch flipped up. In this position, the ignition circuit is
interrupted, a running engine stops, and a non-running engine will not start.
• Ignition on – Ignition switch flipped down. In this position, the ignition circuit is
closed, and the engine can be started.
4.5Electric starter button
600010-10
The electric starter button is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position.
• Electric starter button pressed – In this position, the electric starter is actuated.
