CONTROLS 17
600028-10

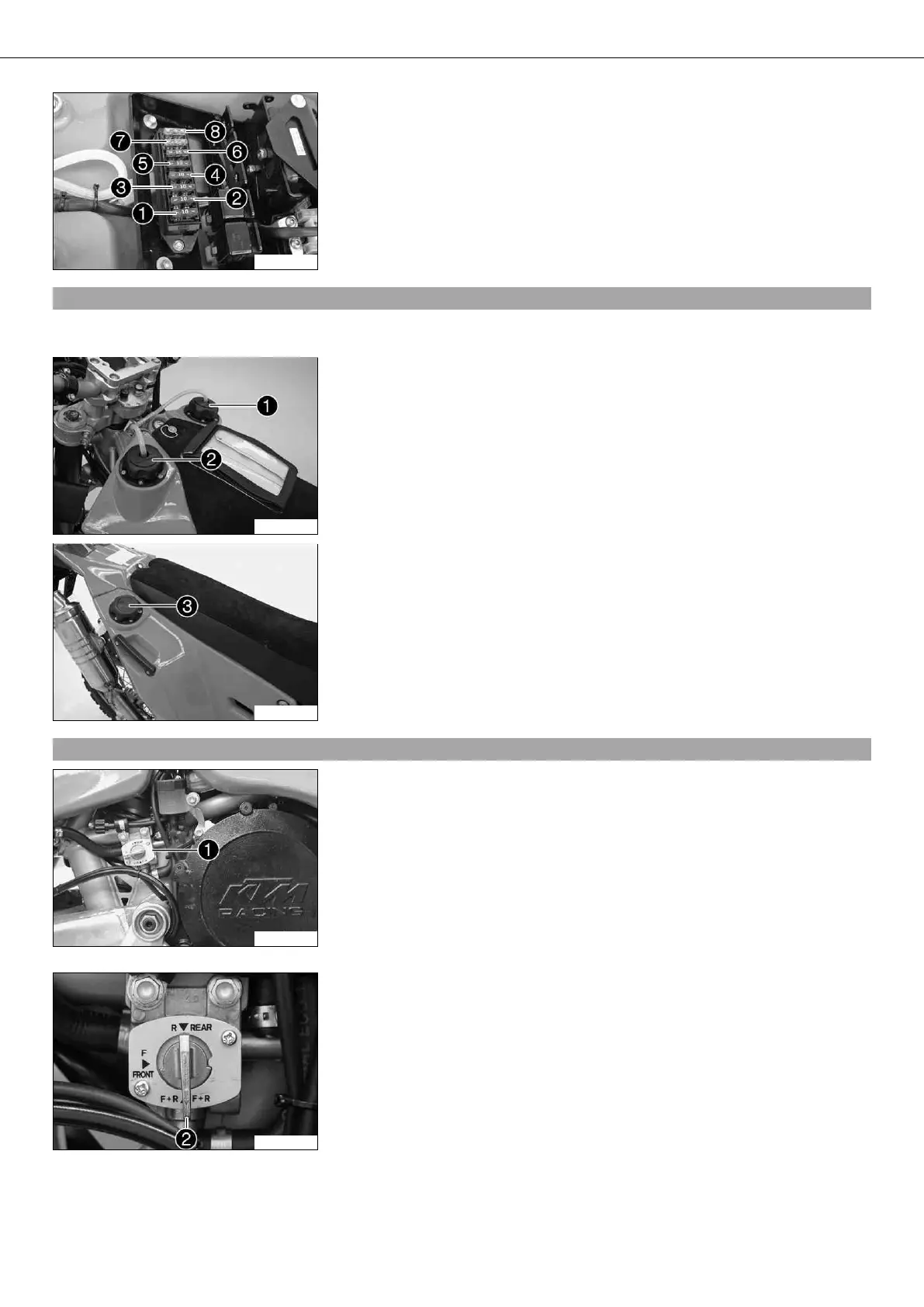

Fuse - Electric starter system
Fuse - Radiator fan
Fuse - lighting Sentinel (optional)
Fuse - Roadbook
Fuse - Not assigned
Fuse - Lighting
Fuse - GPS (optional)
Fuse - Iritrac (optional)
4.28Fuel tank
This model has three separate fuel tanks controlled by a fuel tap. Two fuel tanks are
located in front of the seat and one fuel tank is located beneath the seat.
600045-10
The right fuel tank is filled via filler cap and the left fuel tank is filled via filler
cap .
600046-10
The rear fuel tank is filled via filler cap .
4.29Fuel tap
600008-10
Fuel tap is located on the right over the fork pivot.
The fuel tap can be used to control the individual fuel tanks. The fuel tap does not
have an OFF position since the fuel pump does not let fuel pass when the engine is
stopped.
Possible states
600015-10
• F+R – If tap handle of the fuel tap points down, fuel is taken from all three fuel
tanks. All fuel tanks empty out completely.
