MAINTENANCE WORK ON CHASSIS AND ENGINE 52
– Remove the motorcycle from the work stand. ( p. 29)
– Pull the front wheel brake and push down hard on the fork several times to align
the fork legs.
– Tighten screws and .
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)

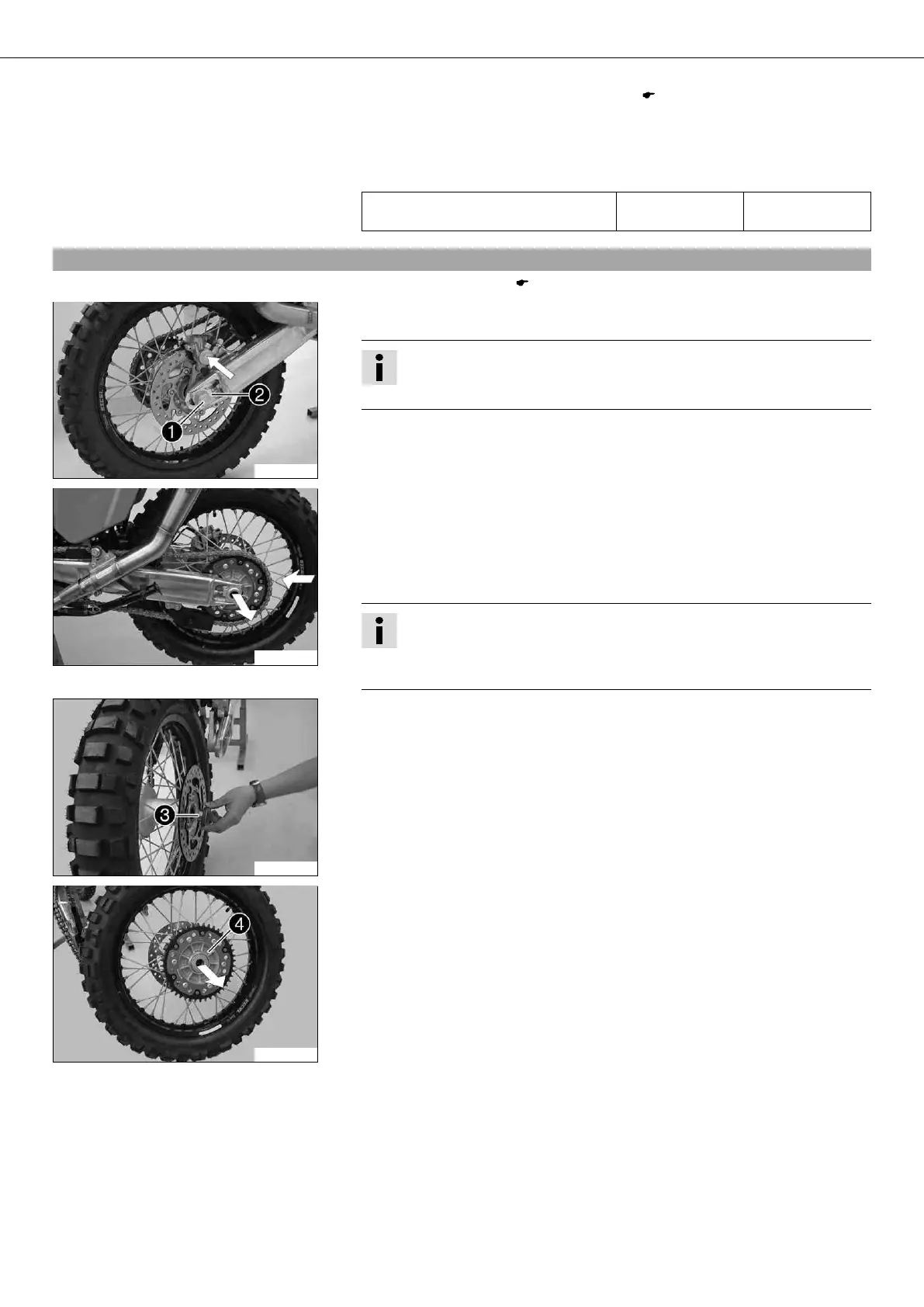

8.54Removing rear wheel x
– Jack up the motorcycle. ( p. 29)
600035-10
– Press the brake caliper by hand on to the brake disc in order to press back the
brake piston.
Info
Make sure when pushing back the brake piston that you do not press the
brake caliper against the spokes.
– Remove nut .
– Remove chain adjuster .
600036-10
– Withdraw the wheel spindle only enough to allow the rear wheel to be pushed for-
ward.
– Push the rear wheel forward as far as possible. Remove the chain from the rear
sprocket.
– Holding the rear wheel, withdraw the wheel spindle. Take the rear wheel out of the
swing arm.
Info
Do not operate the foot brake when the rear wheel is removed.
Always lay the wheel down in such a way that the brake disc is not dam-
aged.
600037-10
– Remove the distance bushing .
600038-10
– Remove the rear sprocket carrier .
