MAINTENANCE WORK ON CHASSIS AND ENGINE 37

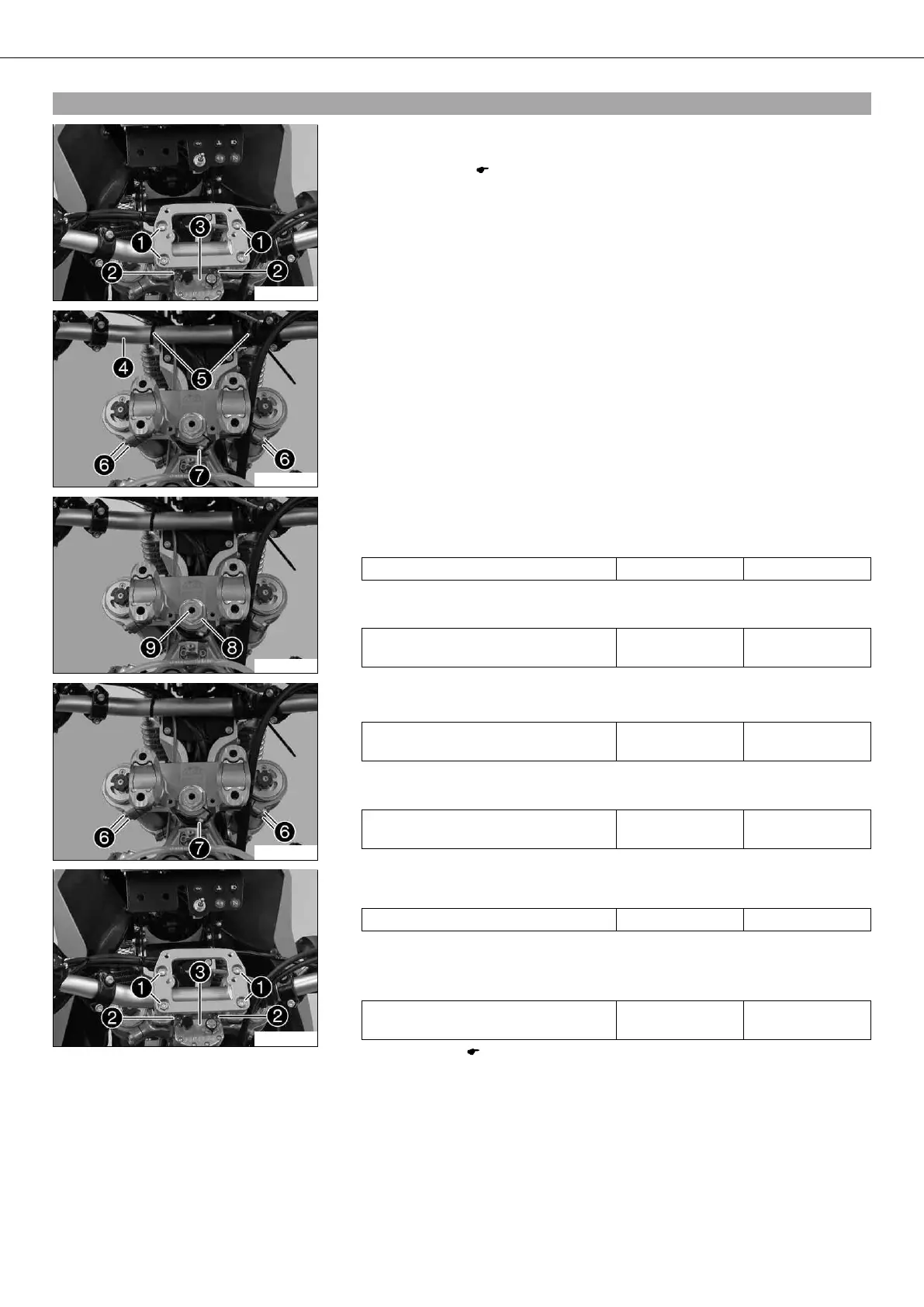

8.23Adjusting play of steering head bearing x
600099-11
– Remove screws . Remove the holding plate with handlebar clamps.
– Remove screws . Remove the steering damper .
– Remove the trim. ( p. 54)
600100-10
– Fix the handlebar onto the instrument support with cable ties .
– Loosen screws and .
600100-11
– Loosen the nut and screw .
– Retighten the scew .
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
– Lock the screw and nut.
Guideline
Lock nut, top steering head M20x1.5 25 Nm
(18.4 lbf ft)
600100-12
– Tighten screw .
Guideline
Screw, top steering stem M8 20 Nm
(14.8 lbf ft)
– Fully tighten screw .
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
600099-11
– Position the steering damper . Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Open the cable binders and position the handlebar.
– Position the holding plate with handlebar clamps. Mount and tighten screws .
Guideline
Screw, handlebar clamp M8 16 Nm
(11.8 lbf ft)
– Mount the trim. ( p. 55)
