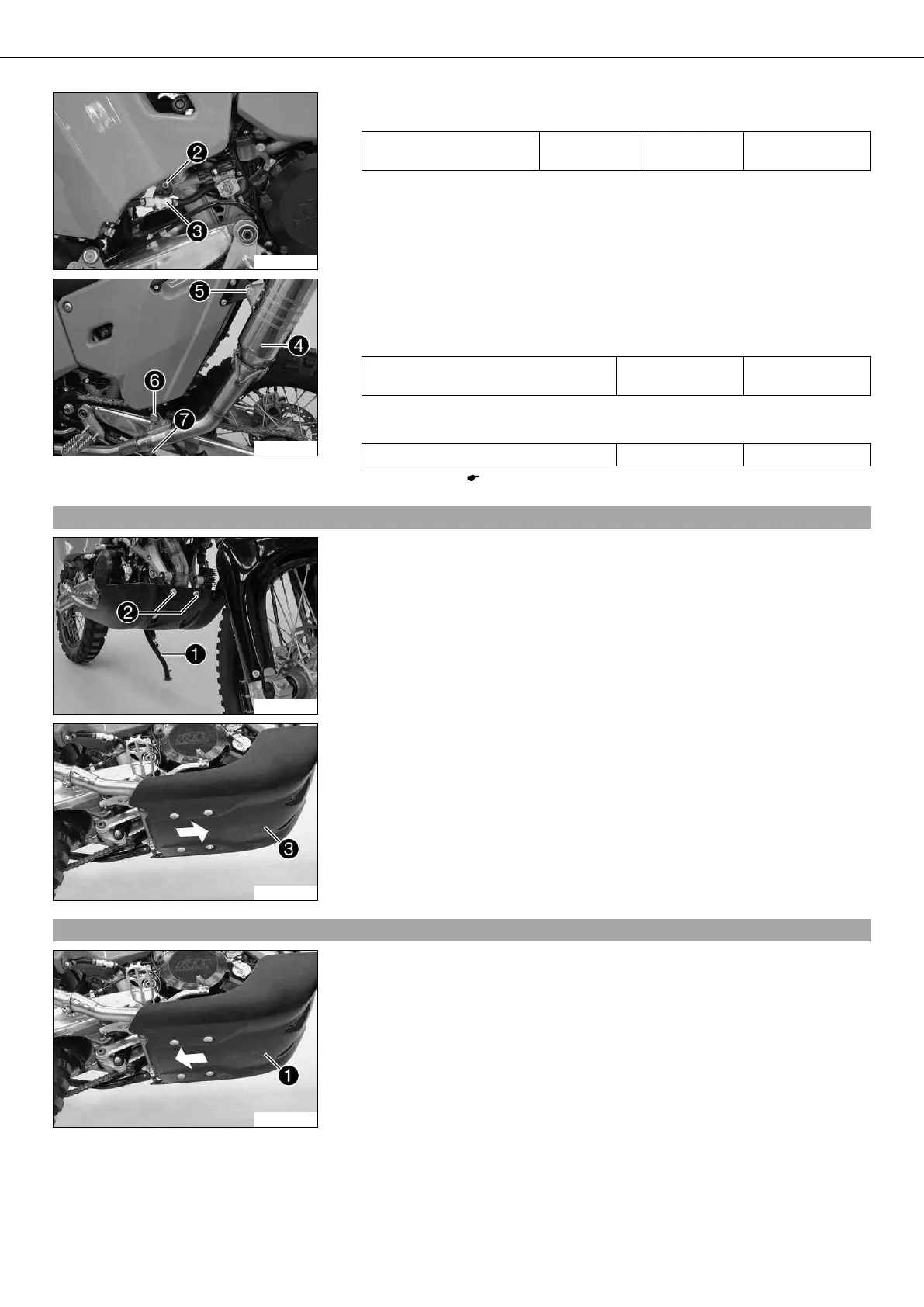

MAINTENANCE WORK ON CHASSIS AND ENGINE 59
600092-11
– Mount and tighten screw .
Guideline
Screw, rear tank fixing
bracket
M8 20 Nm
(14.8 lbf ft)
Loctite
®
243™
– Clean and connect the quick releases of the fuel line with each other.
600090-11
– Connect the main silencers with the manifolds on both sides. Mount the
screw on both sides but do not tighten it yet.
– Align the main silencer. Mount and tighten screws and on both sides.
Guideline
Remaining screws, chassis M8 25 Nm
(18.4 lbf ft)
– Tighten screw on both sides.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Mount the seat. ( p. 56)
8.67Removing the motor guard
600073-10
– Park the motorcycle on its side stand on a horizontal surface.
– Remove screws .
600074-11
– Pull the motor guard forward out of the frame.
8.68Mounting the motor guard
600074-10
– Insert the motor guard into the frame.
