MAINTENANCE WORK ON CHASSIS AND ENGINE 33
– Adjust the rebound damping of the shock absorber. ( p. 30)

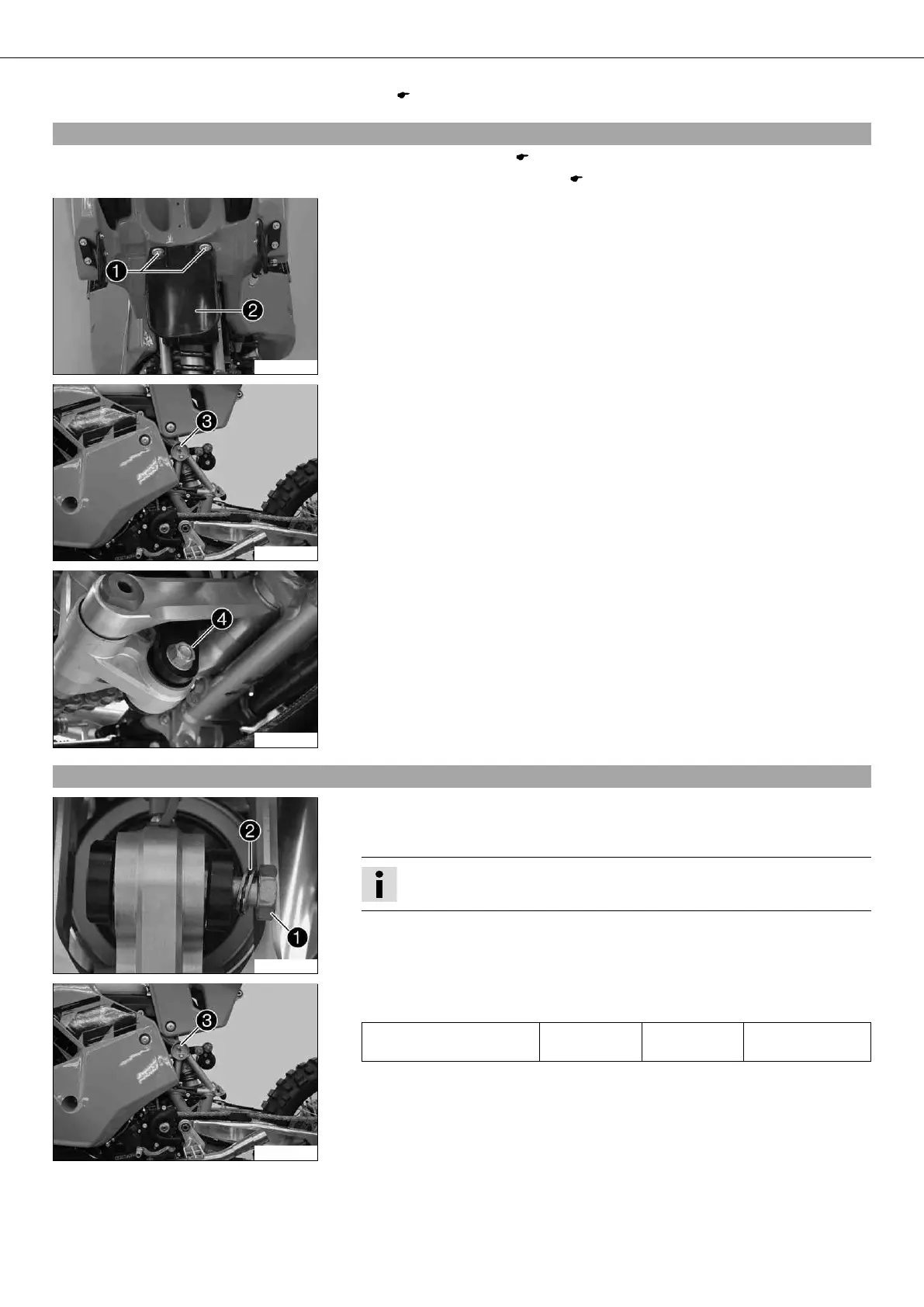

8.13Removing the shock absorber
– Jack up the motorcycle. ( p. 29)
– Fold up the fuel tank at the rear. ( p. 57)
600097-10
– Remove screws and splash protector .
600094-10
– Remove screw .
600095-10
– Remove screw .
– Remove shock absorber.
8.14Installing the shock absorber
600096-10
– Position the shock absorber.
– Mount the screw with the washers at the bottom of the shock absorber but do
not tighten it yet.
Info
Ensure that the washers are properly positioned.
600094-10
– Mount and tighten screw .
Guideline
Screw, top shock absorber M10 45 Nm
(33.2 lbf ft)
Loctite
®
243™
