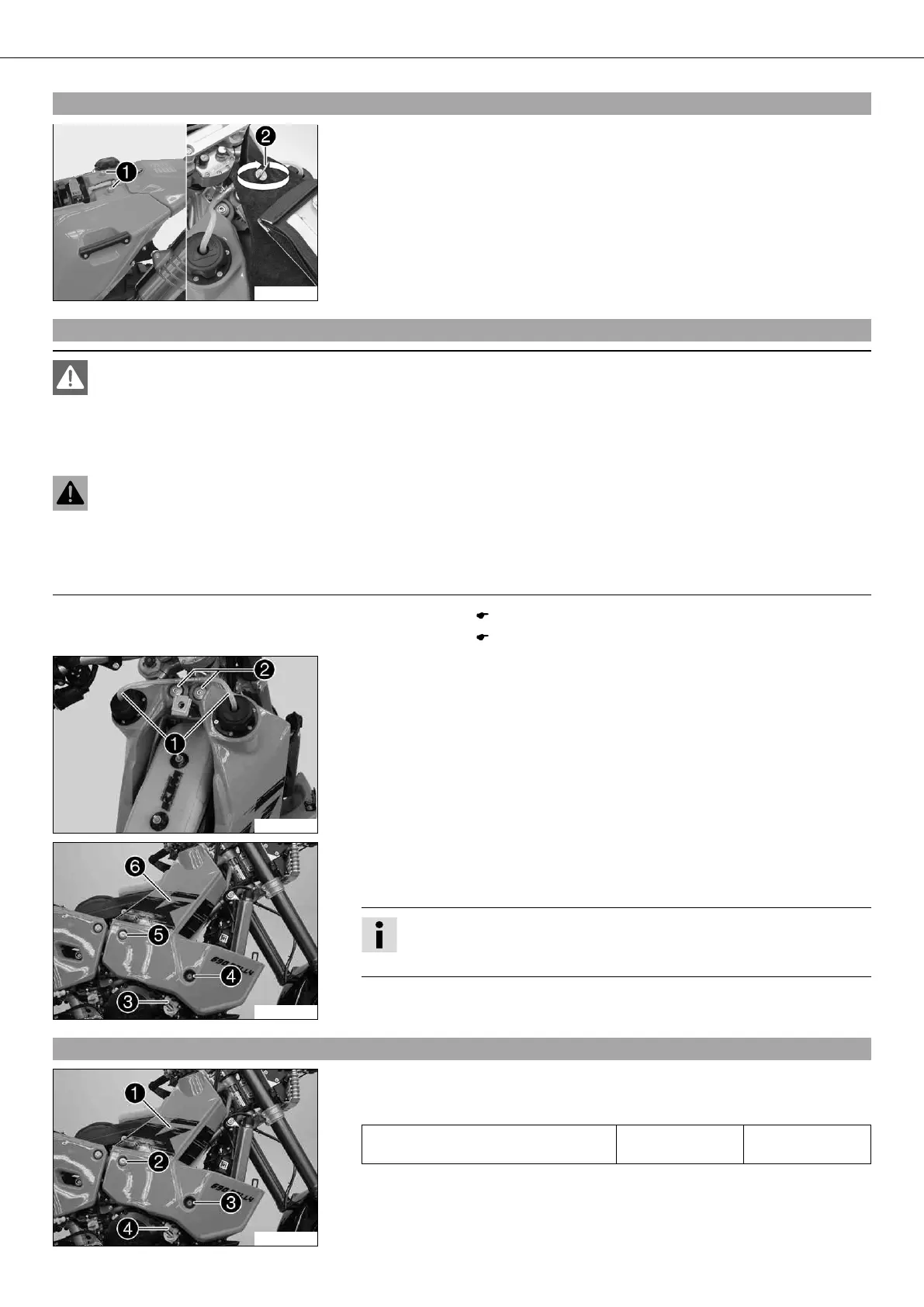

MAINTENANCE WORK ON CHASSIS AND ENGINE 56
8.62Mounting the seat
600069-10
– Put down the seat and fit it into collar sleeves of the fuel tank at the rear. Push
the seat forward at the same time.
– Push the seat down at the front, lift the quick release bracket and turn it in the
direction of the arrow until it engages.
– Make sure that the seat is correctly locked in.
8.63Removing the front fuel tank
Danger
Fire hazard Fuel can easily catch fire.
– Never fill up the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See specifications on filling up with fuel.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
– Remove the trim. ( p. 54)
– Remove the seat. ( p. 55)
600087-10
– Pull off the fuel tank breathers .
– Remove screws .
600088-10
– Open the quick release of the fuel line on the left and right.
– Remove screws and of the left and right halves of the fuel tank.
– Remove the fuel tank on the left and right.
Info
Set the fuel tank halves down in an upright position as otherwise fuel can
escape from the fuel tank breathers.
8.64Installing the fuel tank
600088-11
– Position the fuel tank on the left and right. Mount and tighten screws and
on the left and right.
Guideline
Remaining screws, chassis M8 25 Nm
(18.4 lbf ft)
– Clean and connect the left and right quick releases of the fuel line with each
other.
