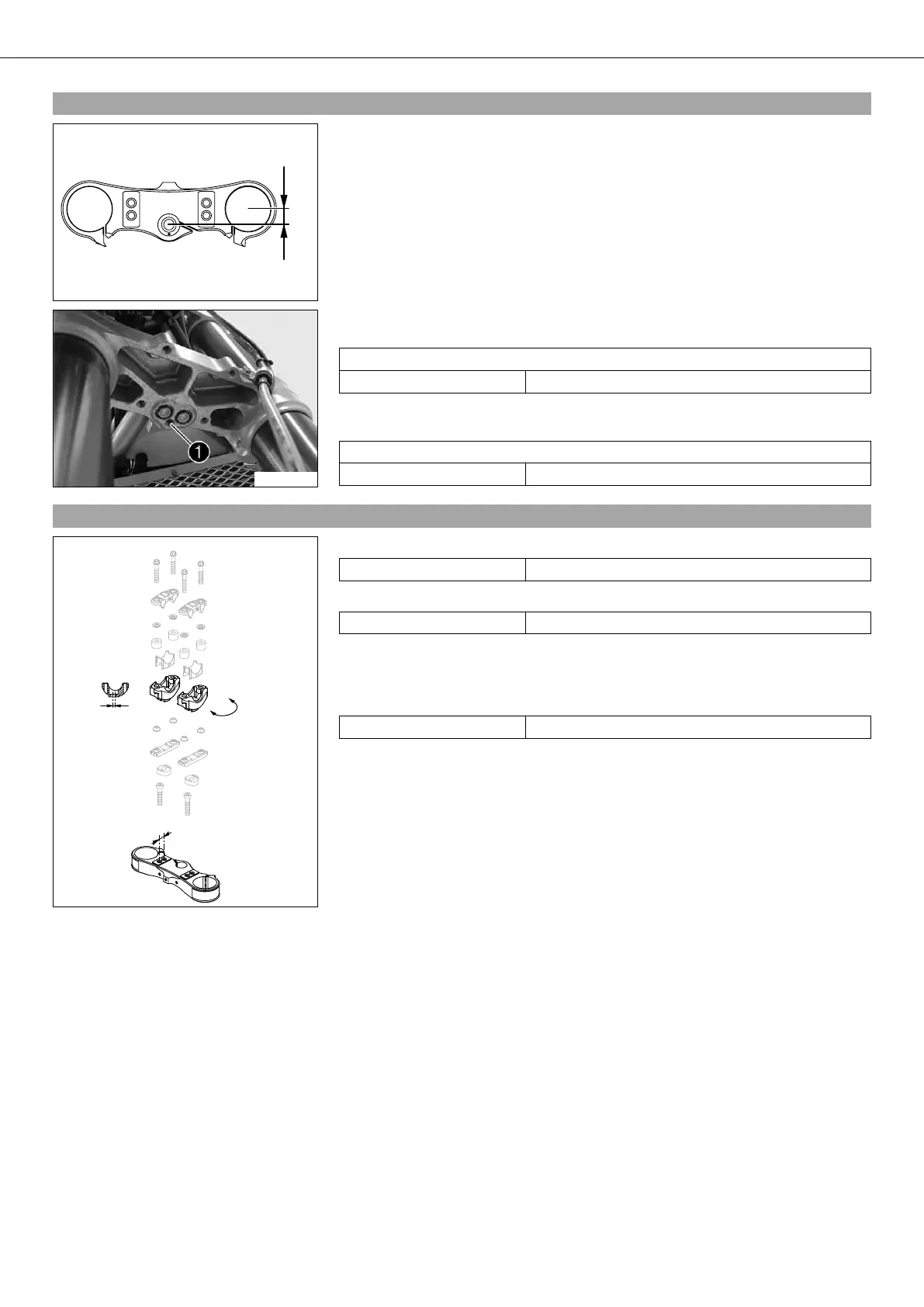

MAINTENANCE WORK ON CHASSIS AND ENGINE 38
8.24Fork offset
0
0
AA
400566-10
The fork offset has an impact on the handling of the vehicle. It is calculated from
the center of the fork leg to the center of the steering head bearing.
The fork offset can optionally be adjusted.
600111-10
When mark 1 is visible in drill hole (as delivered), you will achieve better handling in
bends.
Fork offset
Mark 1 visible 20 mm (0.79 in)
If mark 1 is not visible in drill hole , you will achieve better riding stability on fast
stretches.
Fork offset
No mark 22 mm (0.87 in)
8.25Handlebar position
0
0
BB
0
0
AA
400361-10
On the upper triple clamp, there are 2 holes at a distance of to each other.
Distance between holes 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance of from the center.
Distance between holes 3.5 mm (0.138 in)
The handlebar can be mounted in 4 different positions. This enables you to mount the
handlebar in the position most suitable for the rider.
The handlebar supports can also be mounted at 2 different heights (with and without
spacer).
Thick spacer 9 mm (0.35 in)
