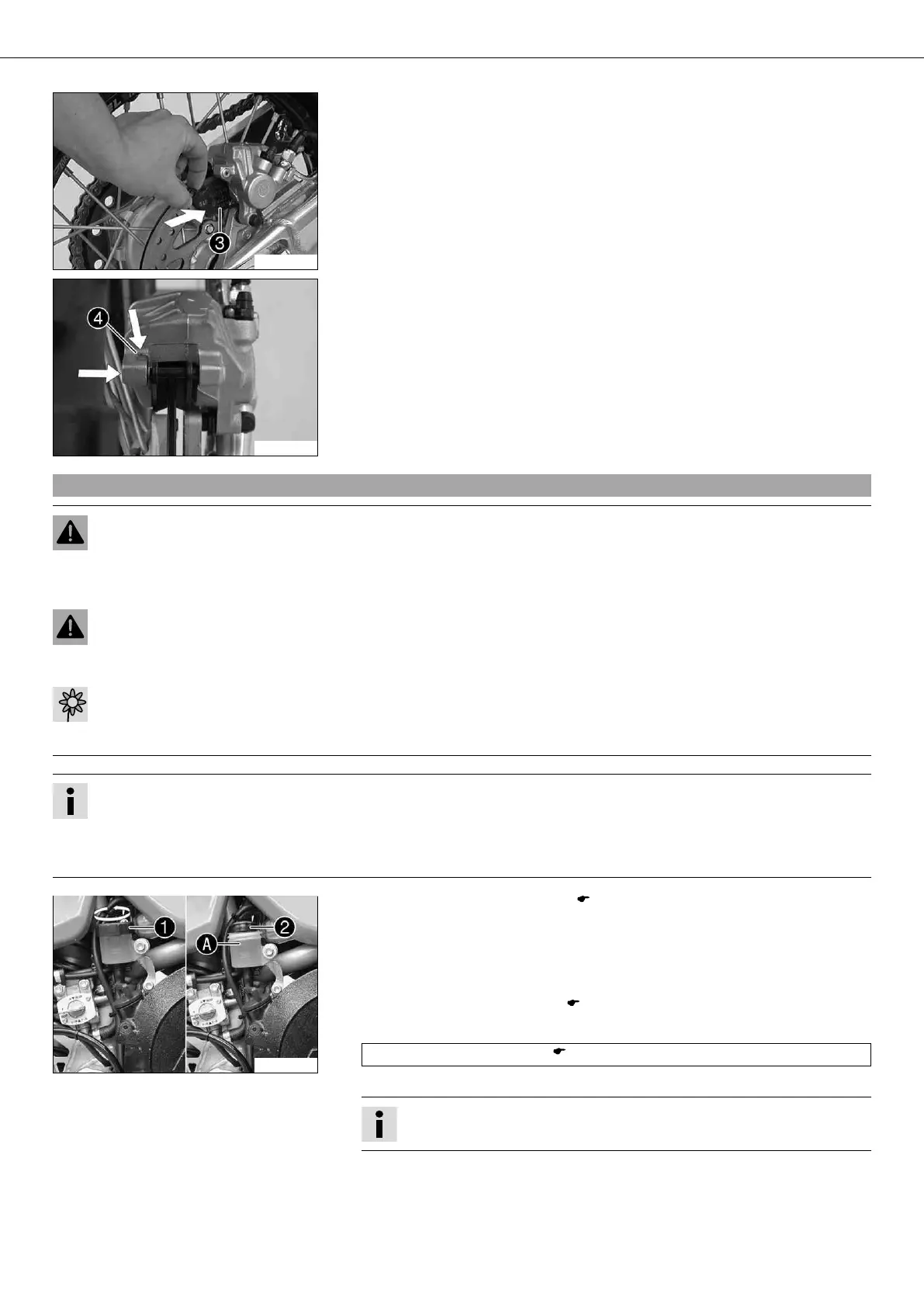

MAINTENANCE WORK ON CHASSIS AND ENGINE 50
600065-11
– Insert brake linings .
600042-11
– Mount the bolt with a suitable tool and insert the lock pin .
– Operate the foot brake lever repeatedly until the brake linings lie on the brake disc
and there is a tight spot.
8.51Changing the rear brake linings x
Warning
Skin irritations Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– If brake fluid gets into your eyes, rinse thoroughly with water and contact a doctor immediately.
Warning
Danger of accidents Reduced braking due to old brake fluid.
– Have the front and rear brake fluid replaced according to the service plan in an authorized KTM workshop.
Warning
Environmental hazard Problem materials cause environmental damage.
– Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
Info
Never user DOT 5 brake fluid! This is based on silicone oil and is colored purple. Oil seals and brake lines are not designed for
DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint!
Use only clean brake fluid from a sealed container!
600061-10
–
Remove the rear brake linings. x ( p. 49)
– Stand the vehicle upright.
– Turn screw cap in the direction of the arrow and remove it with membrane .
– Press the brake piston back to its basic position and make sure that no brake fluid
overflows from the brake fluid reservoir.
–
Install the rear brake linings. x ( p. 49)
– Add brake fluid to level .
Brake fluid DOT 4 / DOT 5.1 ( p. 96)
– Mount the screw cap with the membrane.
Info
Clean up overflowed or spilt brake fluid immediately with water.
