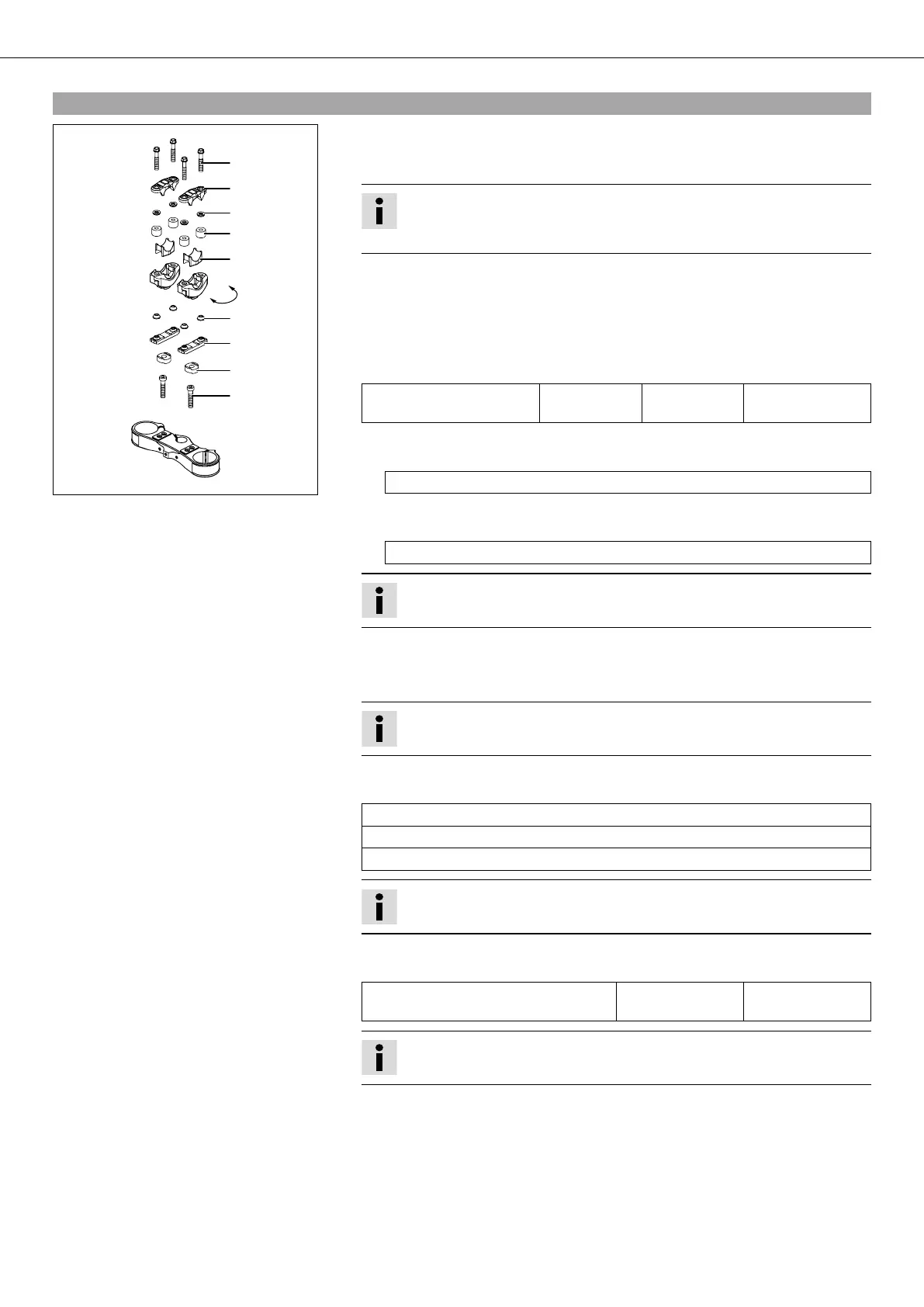

MAINTENANCE WORK ON CHASSIS AND ENGINE 39
8.26Adjusting the handlebar position x
0
0
33
0
0
22
0
0
11
0
0
44
0
0
55
0
0
66
0
0
77
0
0
88
0
0
99
400343-10
– Remove the four screws . Remove the holding plate with handlebar clamps 
with intermediate rubber pieces  and elastomers .
– Remove the handlebar and lay it to one side.
Info
Protect the motorcycle and its attachments from damage by covering them.
Do not bend the cables and lines.
– Remove the lower shells .
– Remove the clamp bar  with the rubber cones .
– Remove the two screws . Remove the handlebar support.
– Place the handlebar support in the required position. Mount and tighten the two
screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Condition
Spacer  mounted:
Use a M10x35 screw
Condition
Without a spacer :
Use a M10x25 screw
Info
Position the left and right handlebar supports evenly.
– Insert rubber cones  and clamp bar .
– Insert lower shells .
– Position the handlebar.
Info
Make sure cables and wiring are positioned correctly.
– Position the holding plate with handlebar clamp  with intermediate rubber
pieces  and elastomers .
Elastomer kit green - soft quality (SXS05125203)
Elastomer kit yellow - medium quality (standard) (SXS05125204)
Elastomer kit red - hard quality (SXS05125205)
Info
The elastomers are available in different versions.
– Mount and evenly tighten the four screws .
Guideline
Screw, handlebar clamp M8 16 Nm
(11.8 lbf ft)
Info
Make sure the gap width is even.
