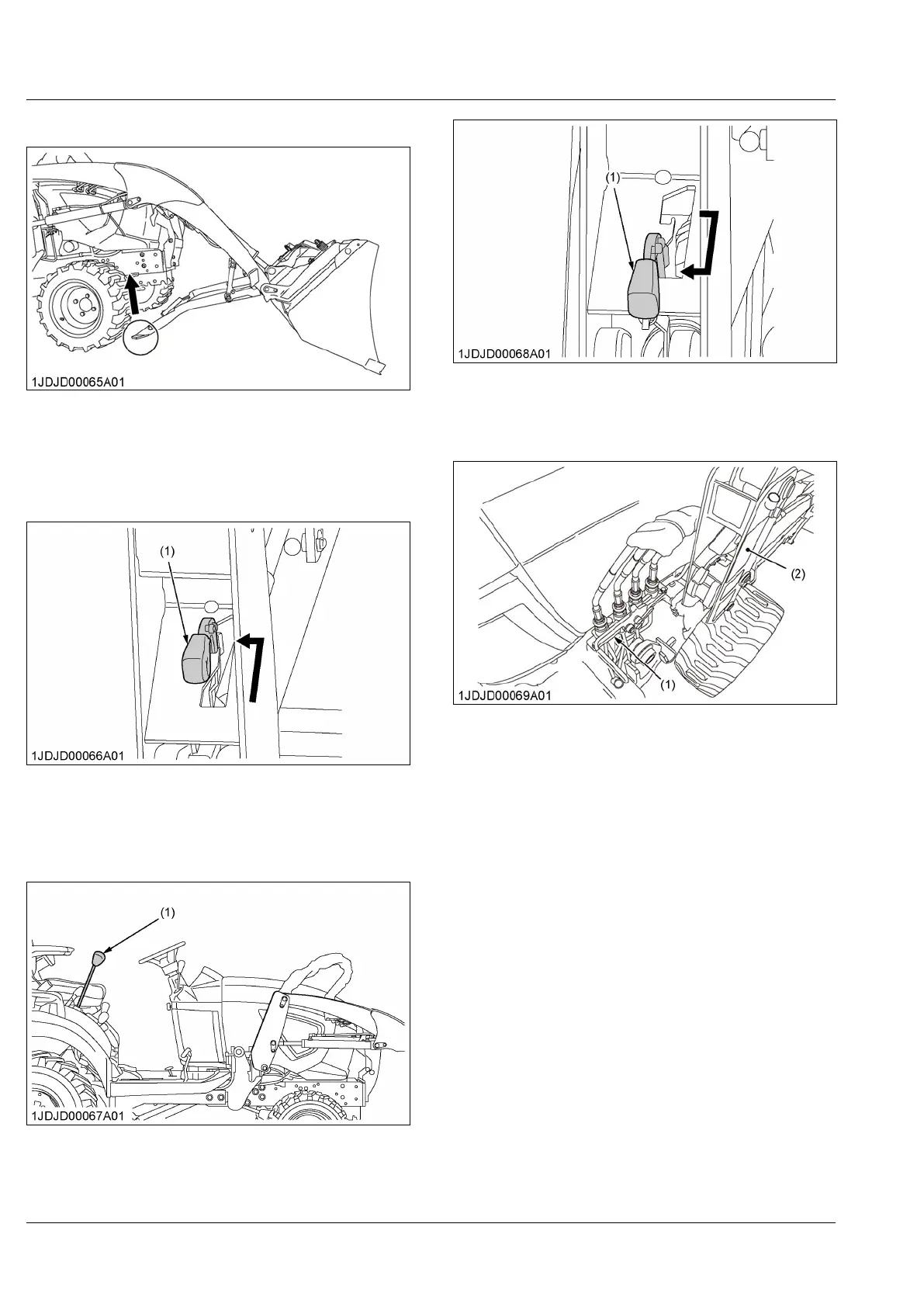

5. Lower the boom and raise the front wheels slightly.
IMPORTANT :
• When raising
the front wheels, the stands
are not to be grounded.
6. Slide the mounting levers of both sides to the
upward direction as shown in the following figure.
(1) Mounting lever
7. Slowly
move
the loader-control-lever to the
rollback position to raise the side frames of the
loader up and out of the receivers of the main
frames as shown in the following figure.
(1) Loader control lever
8. Down the mounting levers of both sides as shown
in the following figure.
(1) Mounting lever
9. Back the tractor so that the quick coupler is
positioned at the back of side frame as shown in the
following figure.
(1) Quick coupler (2) Side frame
10. Stop
the engine, and slowly release all hydraulic
pressure
by moving the loader-control-lever in all
directions.
REMOVING THE LOADER
