9.2.1 Lower the harrow
The machine is in working position.
9.2.2 Lower the radar arm (Optional
equipment)
Hazard should the harrow fall unexpectedly.
This operation must be carried out by 2
people.

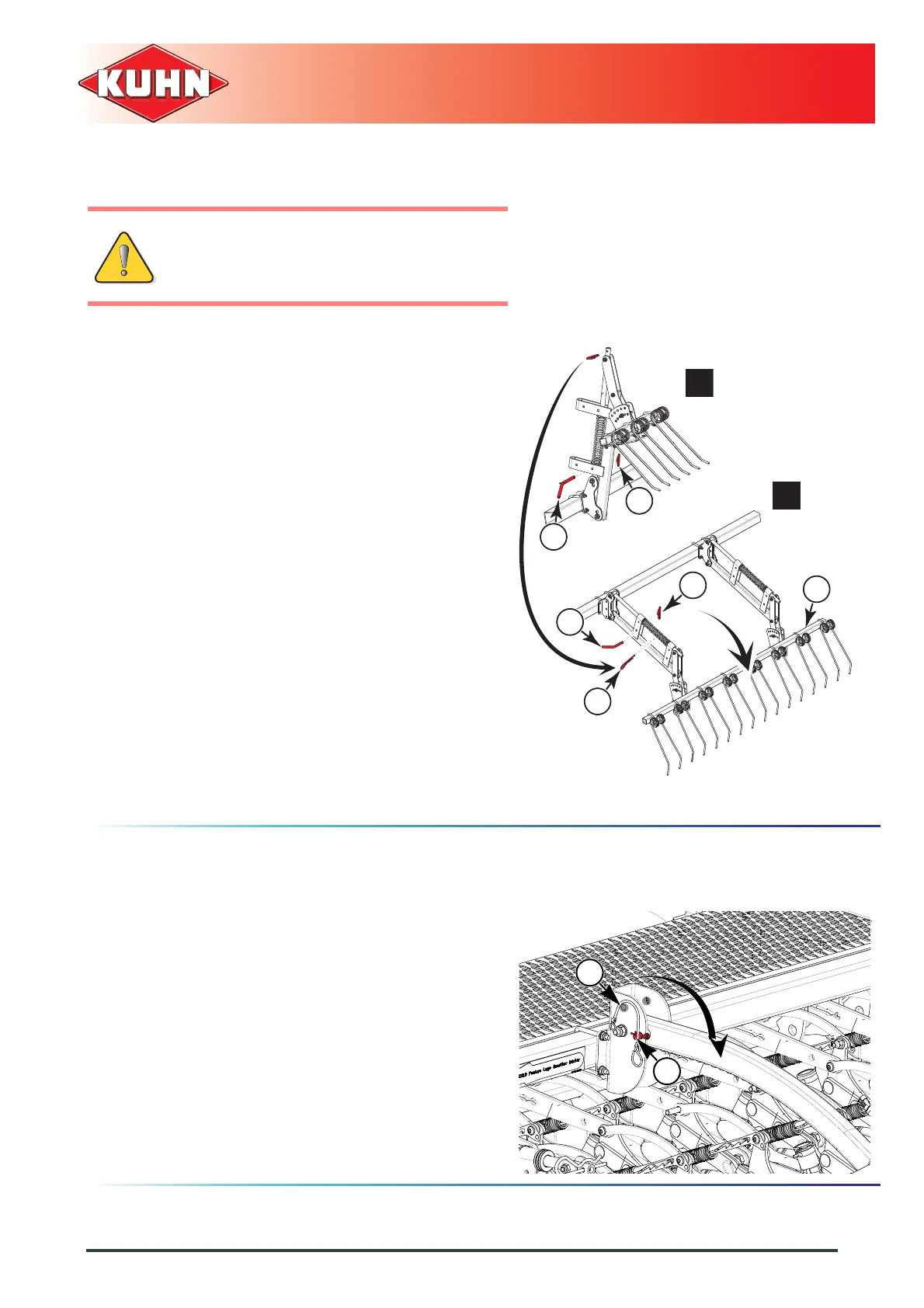

- Lowering the covering harrow in working position:
• Remove R-clips (1) and pins (2).
• Lower the covering harrow (4).
• Insert pins (2) and lock them using R-clips (1).
- Reinstall R-clip (3).
1
1
3
2
2
4
b
a
- Hold the radar arm with one hand.
- Remove R-clip.
- Remove the pin from position (1).
- Lower the radar arm.
- Secure pin (2) using R-clip.
1
2
