KUHN Venta 3030 - Fitting of the Tramlining Valve

10. - Optional equipment
Venta 3030-3530-4030
95
RN034AGB D
Seed Drill
10.1.2 Fitting of the tramlining valve

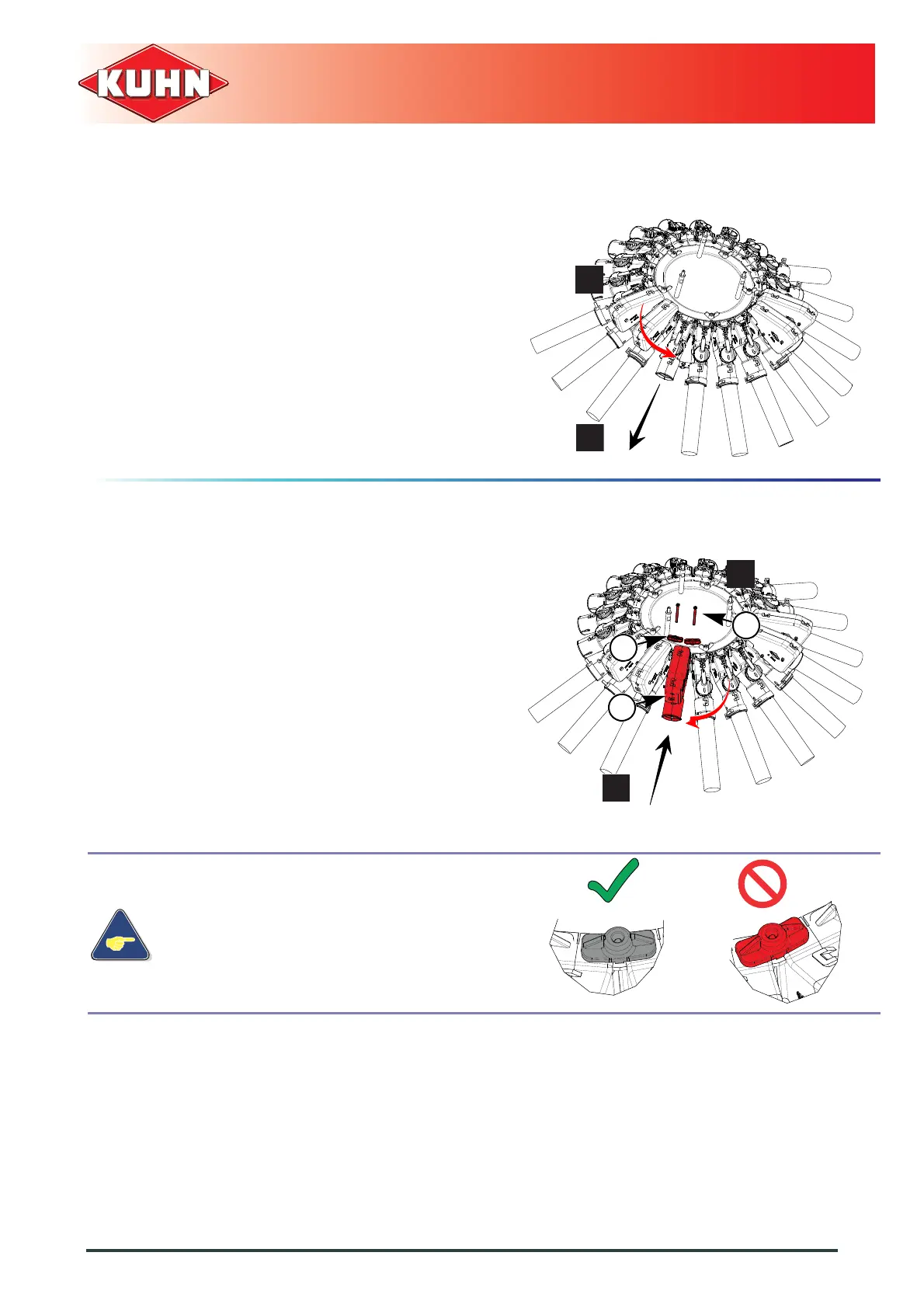

- a: Pivot the mechanical valve.
- b: Remove the mechanical valve.
a
b
- Fit the tramlining valve (1) on the distribution head
and pivot it.
- above/at the bottom: Fit the wedges (2) and tighten
them using screws (3).
• Torque: approximately 1.5 Nm (1.1 lbf ft)
a
b
3
1
2
Respect the alignment of the wedge. The
parts must not be askew.
