23 / 109Issued: 11.10.2013 Version: KST VisionTech 2.1 V1

4 Technical data

4.4 Dimensions of the camera

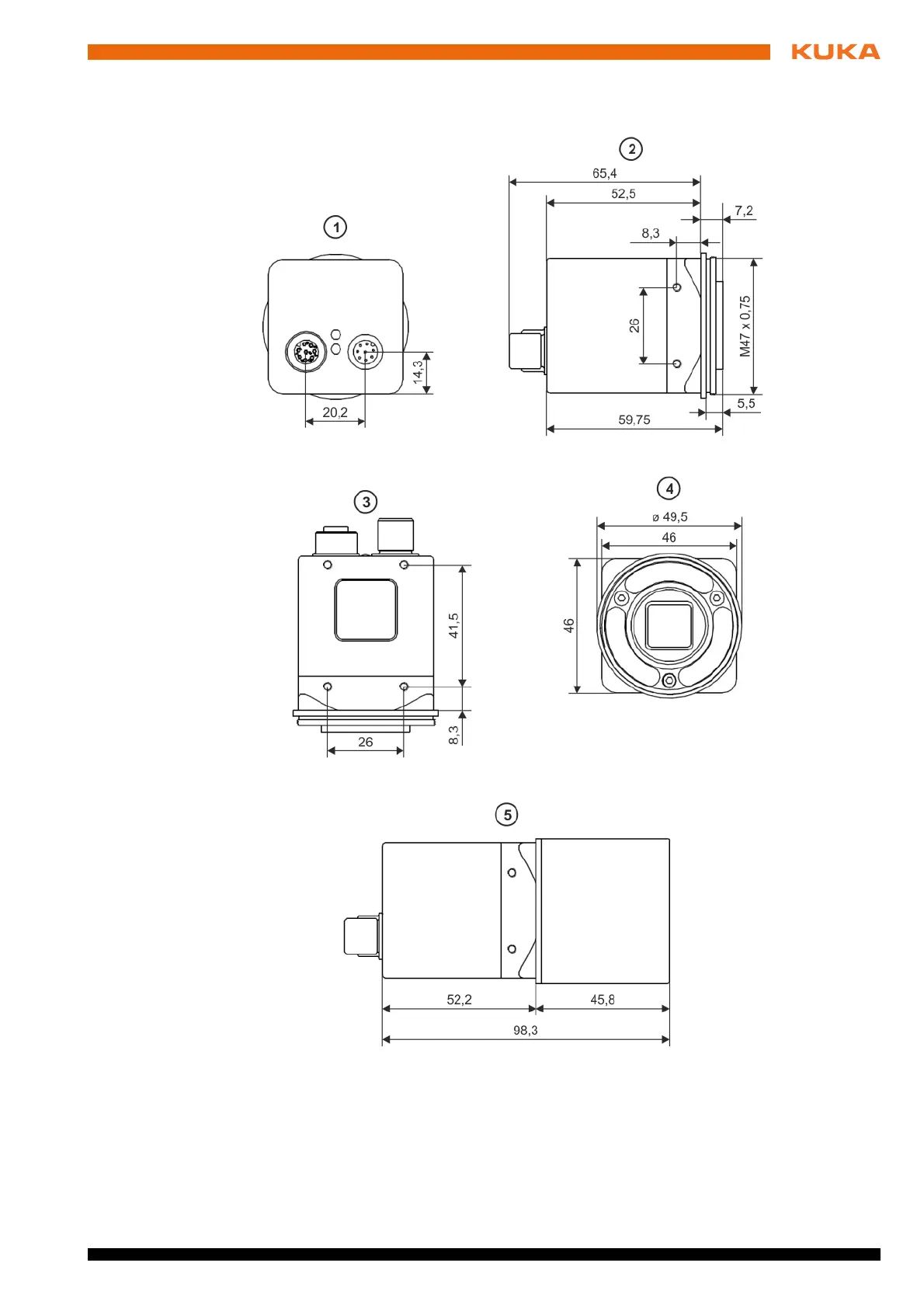

Fig. 4-1: Dimensions of the camera (dimensions in mm)

1 Rear view

2 Side view

3 View from below

4Front view

5 Side view with protective lens hood
