9. Select the calibration plane.
10. Optionally: Enter the exposure time or set it using the plus/minus keys or
the slider control.
11. Press Save. The settings are saved.
Configuration of the task has been successfully completed when the icon
in the Status column changes to green.
Description

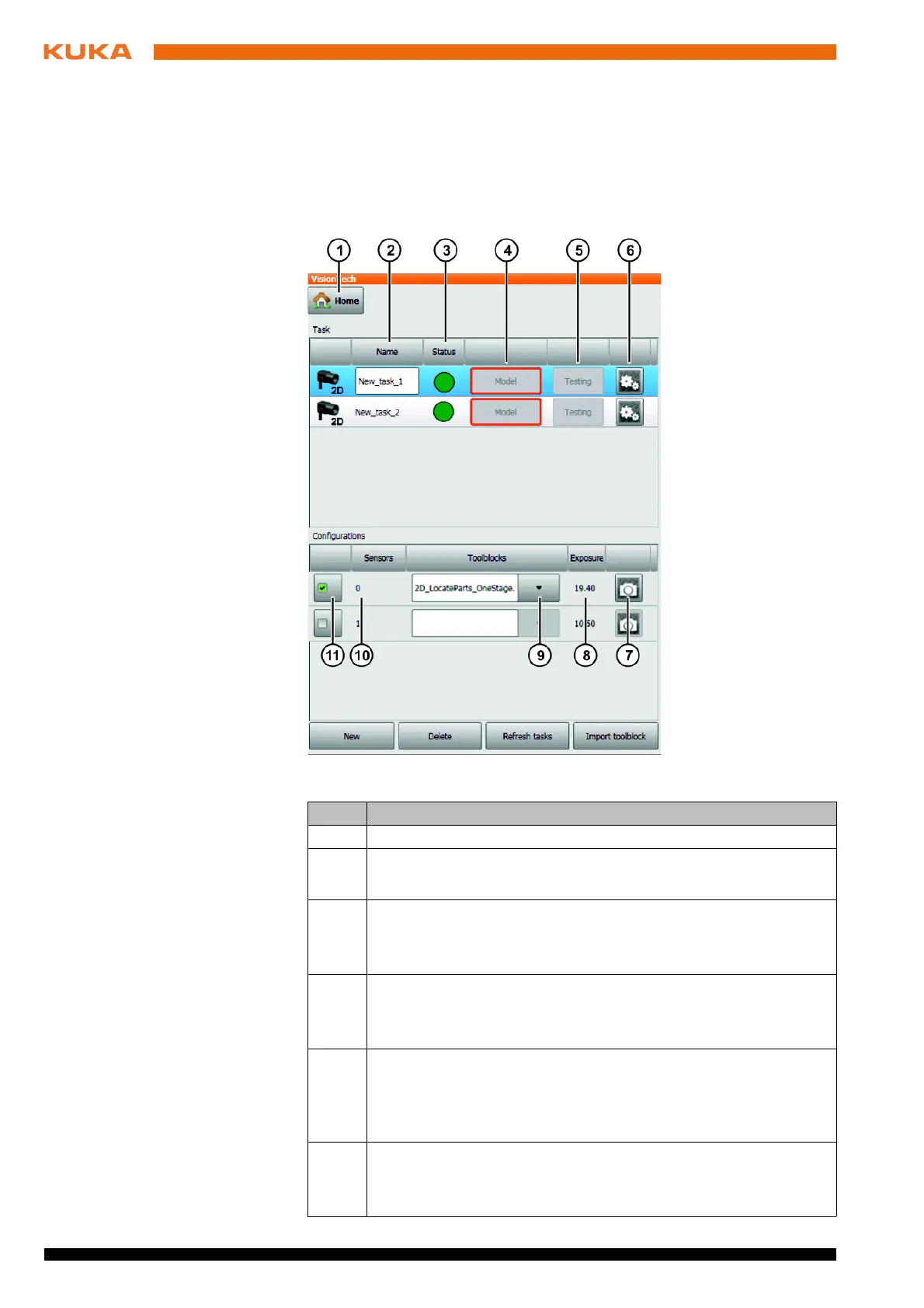

Fig. 10-3: Configuring a 2D task
Item Description
1 Back to Overview
2 Name of the task
The name is freely selectable.
3 State of the task
 Green: Task has been successfully configured.
 Red: Task is not configured.
4 Generate model.
 Green frame: Model has been successfully generated.
 Red frame: No model has yet been generated.
5Test task
 Activated: The task can be tested.
 Deactivated: The task cannot be tested. No model has yet
been generated, or the task is not configured.
6 Settings icon
 Select the number of parts
 Take images from all cameras
