Troubleshooting
Center-Folding Unit (Option)
Ejection Section

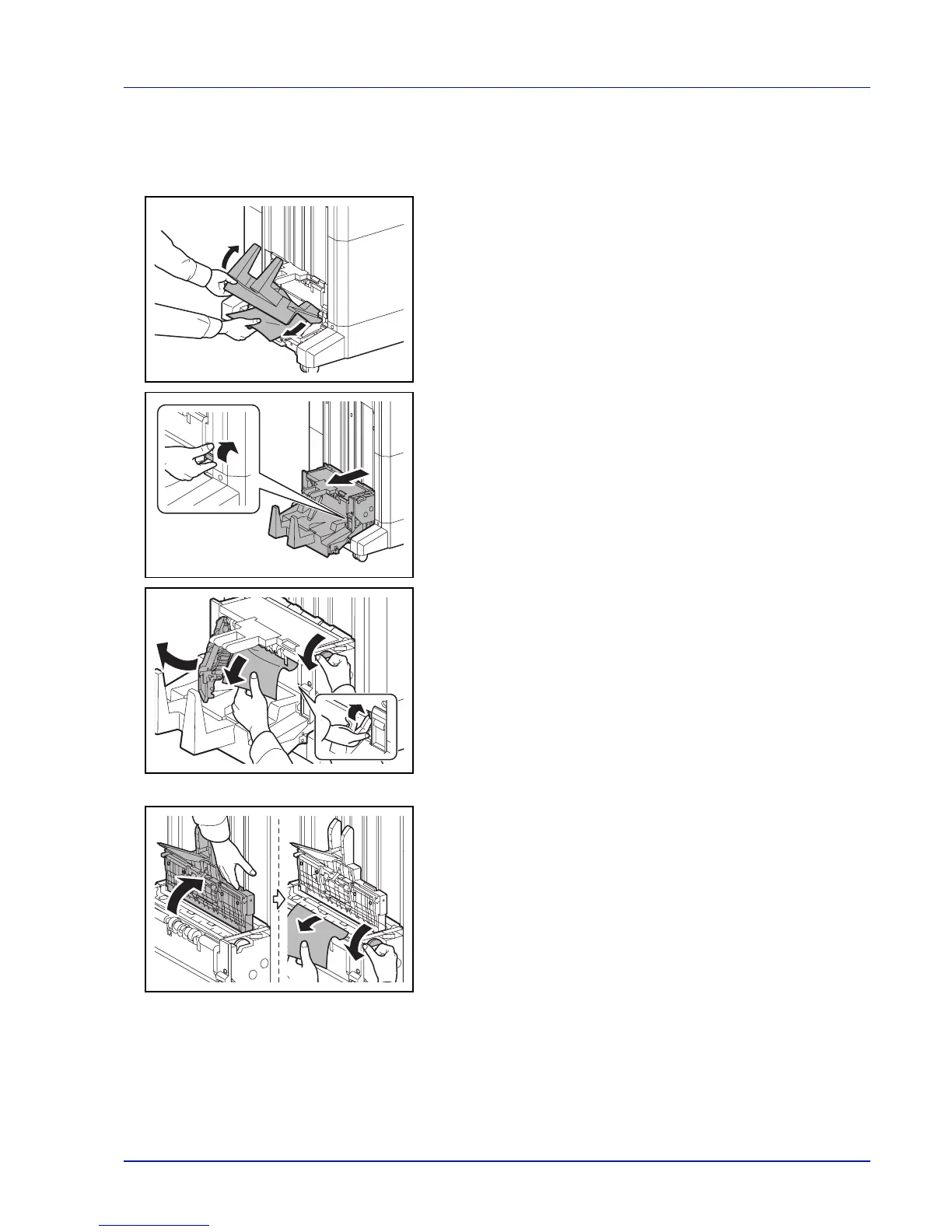

1 Lift up the folding tray and remove any jammed paper.
2 Push the folding unit release lever and pull out the folding unit.
3 Press the release lever, open the left cover of the center fold unit, and
remove the jammed paper.
4 Turn feed knob D9 until the jammed paper is in a location where it is
easy to remove.
5 Close the folding unit left cover.
6 Open the folding unit top cover and remove the paper jam.
7 Turn feed knob D9 until the jammed paper is in a location where it is
easy to remove.
8 Close the folding unit top cover, and return the folding unit to its
original position.
