8-43
Troubleshooting

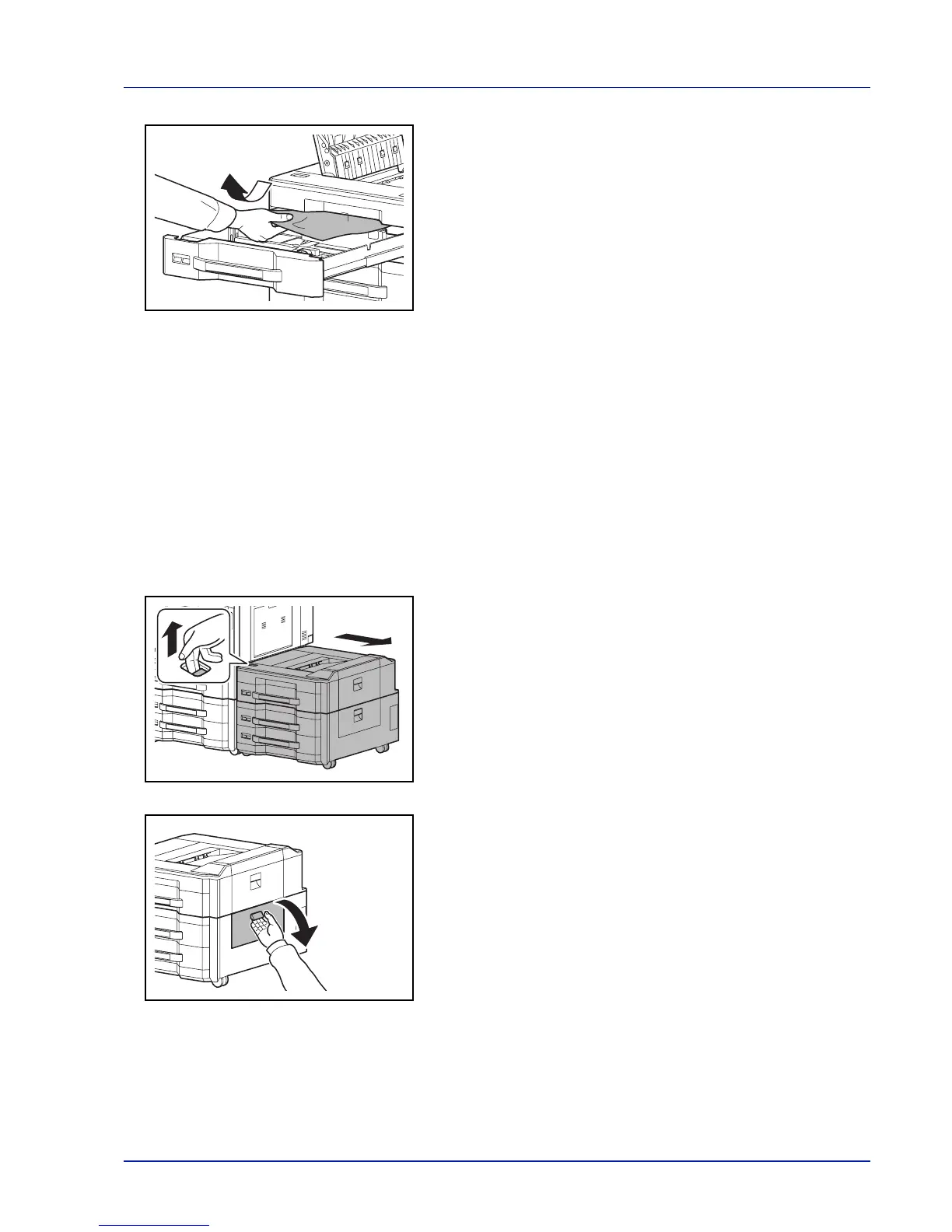

6 Remove the jammed paper.
7 Push the cassette back in place securely.
8 Close the top cover and right cover 1.
9 Connect to the multifunction machine.
Cassette 6,7 (Option)
If a paper jam occurs in cassette 6 or 7 when you are using the optional side feeder (500-sheet x 3) or large capacity side
feeder (500, 1,500-sheet x 2), follow the steps below to remove the jam.
Side Feeder (500-sheet x3)
1 Pull up the release lever and separate the side feeder from the
multifunction machine.
2 Follow steps 2 to 5 on page 8-42 to remove the jammed paper.
3 Open the right cover 2.
To Next Page
