2K8
1-5-22

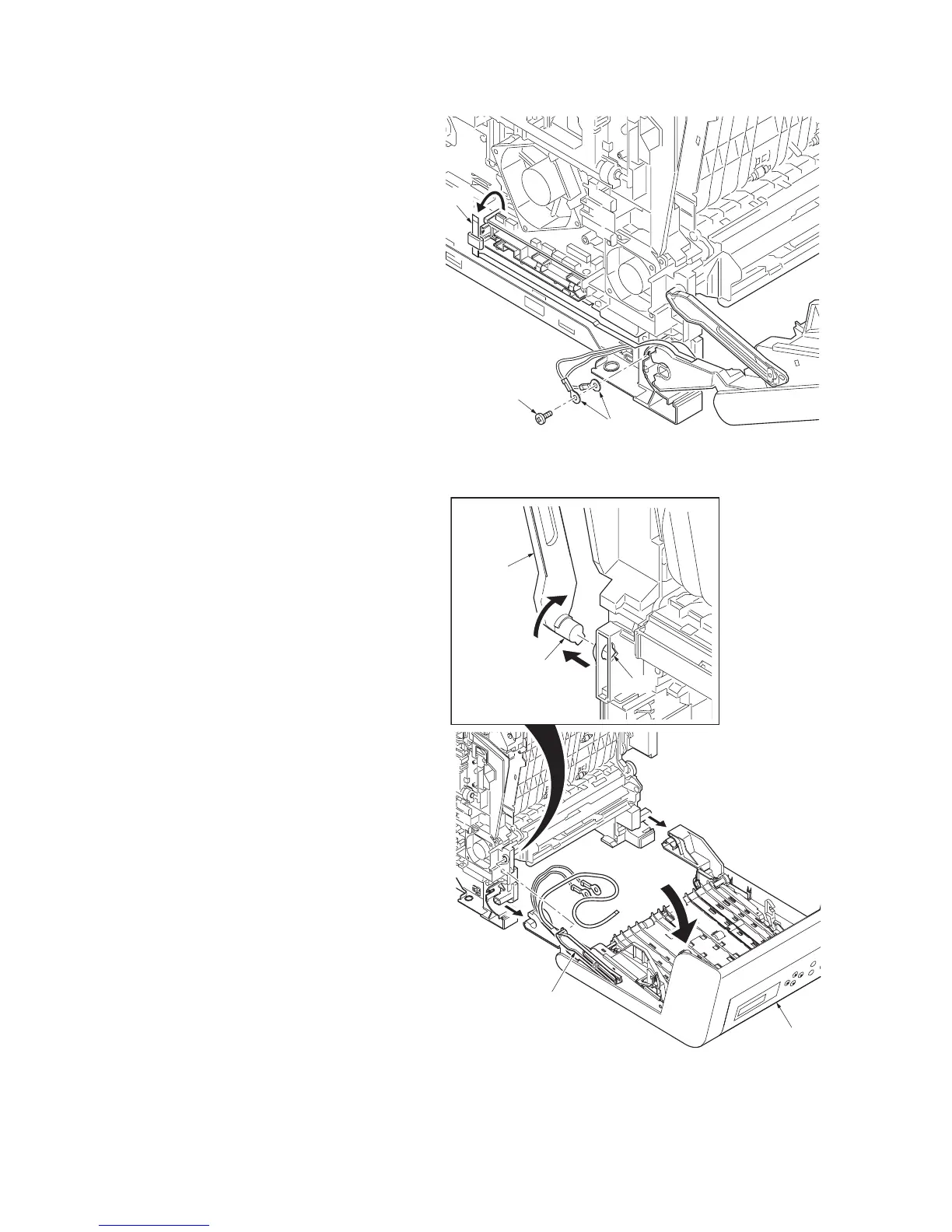

8. Remove the FFC.
9. Remove the screw and then remove the two
grounding terminals.
Figure 1-5-28
10. Remove the axis of the front cover left stop-
per from the hole.
11. Remove the front cover.
Figure 1-5-29
Screw
Grounding terminals
FFC
Axis
Front cover left stopper
Front cover
left stopper
Front cove
r
Hole
