1-2-4 Installing the memory card (option)
<Procedure>
1. Turn off printer power switch.
Caution:
Do not insert or remove memory card while
printer power is on.
Doing so may cause damage to the printer
and the memory card.
2. Remove the two screws and then remove
the main PWB.

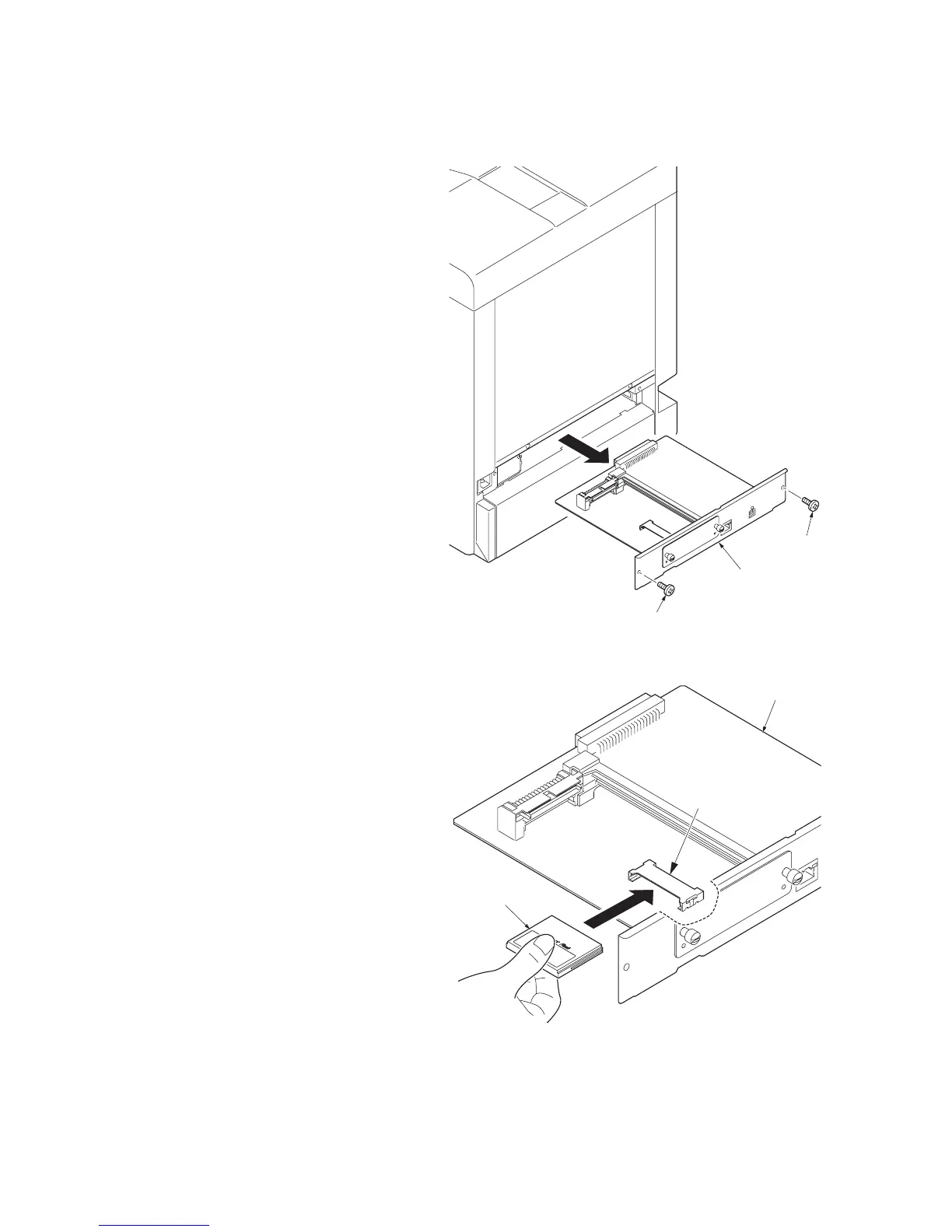

Figure 1-2-7
3. Insert the memory card into the memory
card slot. Push it in all the way.
4. Refit the main PWB.
Figure 1-2-8
Main PWB
Screw
Screw
Memory card socket
Main PWB
Memory card
To Next Page
