Kyocera FS-C5350DN

2K8
1-1-5

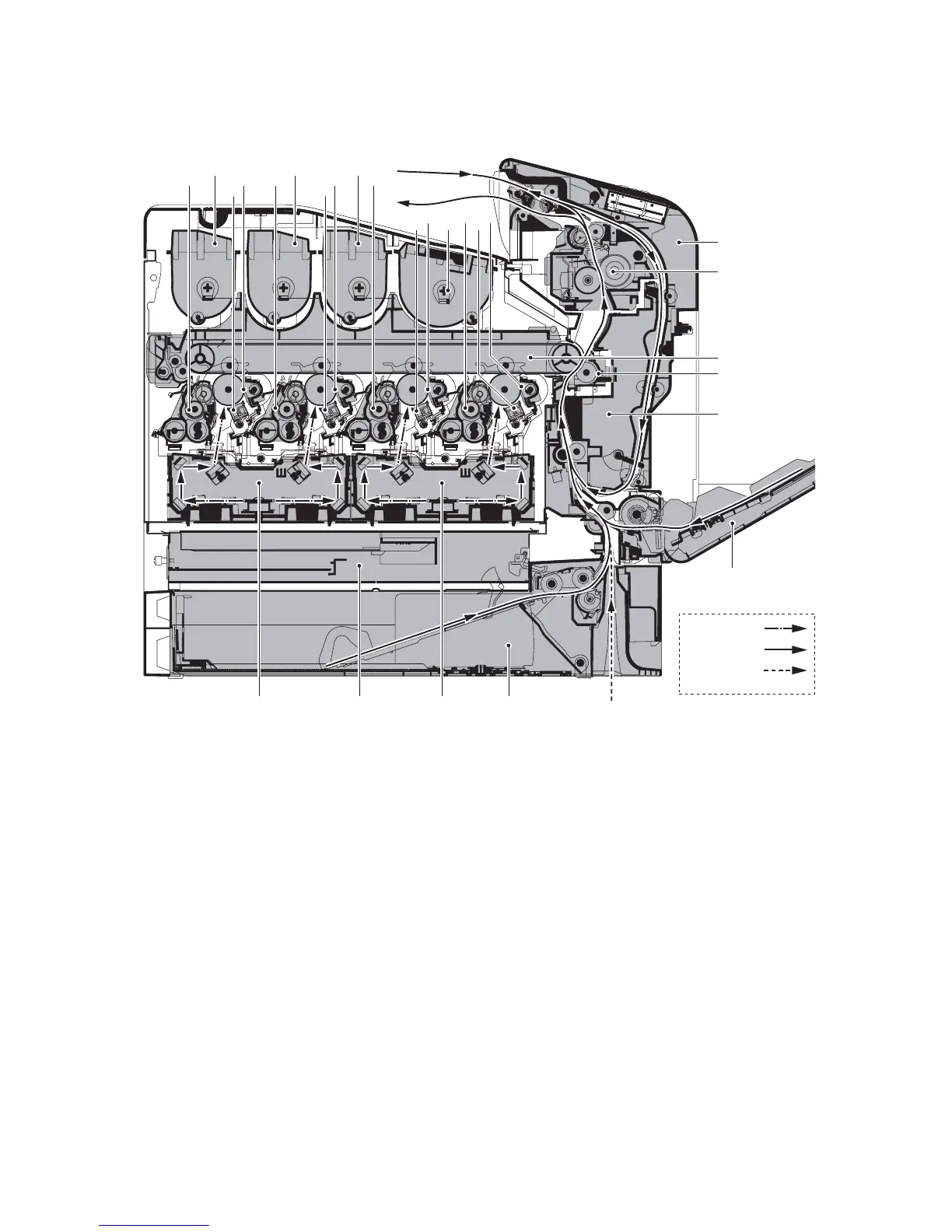

1-1-3 Machine cross section
Figure 1-1-3
19
16
20
24
25
3
22
23
2
126 1312
21
17
11
7
18
4
8
9
14 15 5
6
10
Paper path
Light path
Paper path
(optional)
1. Cassette
2. MP tray
3. Duplex unit B
4. Drum unit M
5. Drum unit C
6. Drum unit Y
7. Drum unit K
8. Main charger unit M
9. Main charger unit C
10. Main charger unit Y
11. Main charger unit K
12. Laser scanner unit MC
13. Laser scanner unit YK
14. Developing unit M
15. Developing unit C
16. Developing unit Y
17. Developing unit K
18. Toner container M
19. Toner container C
20. Toner container Y
21. Toner container K
22. Intermediate transfer unit
23. Transfer roller unit
24. Fuser unit
25. Front cover
26. Controller box
