2K8
1-5-25
1-5-7 Fuser section

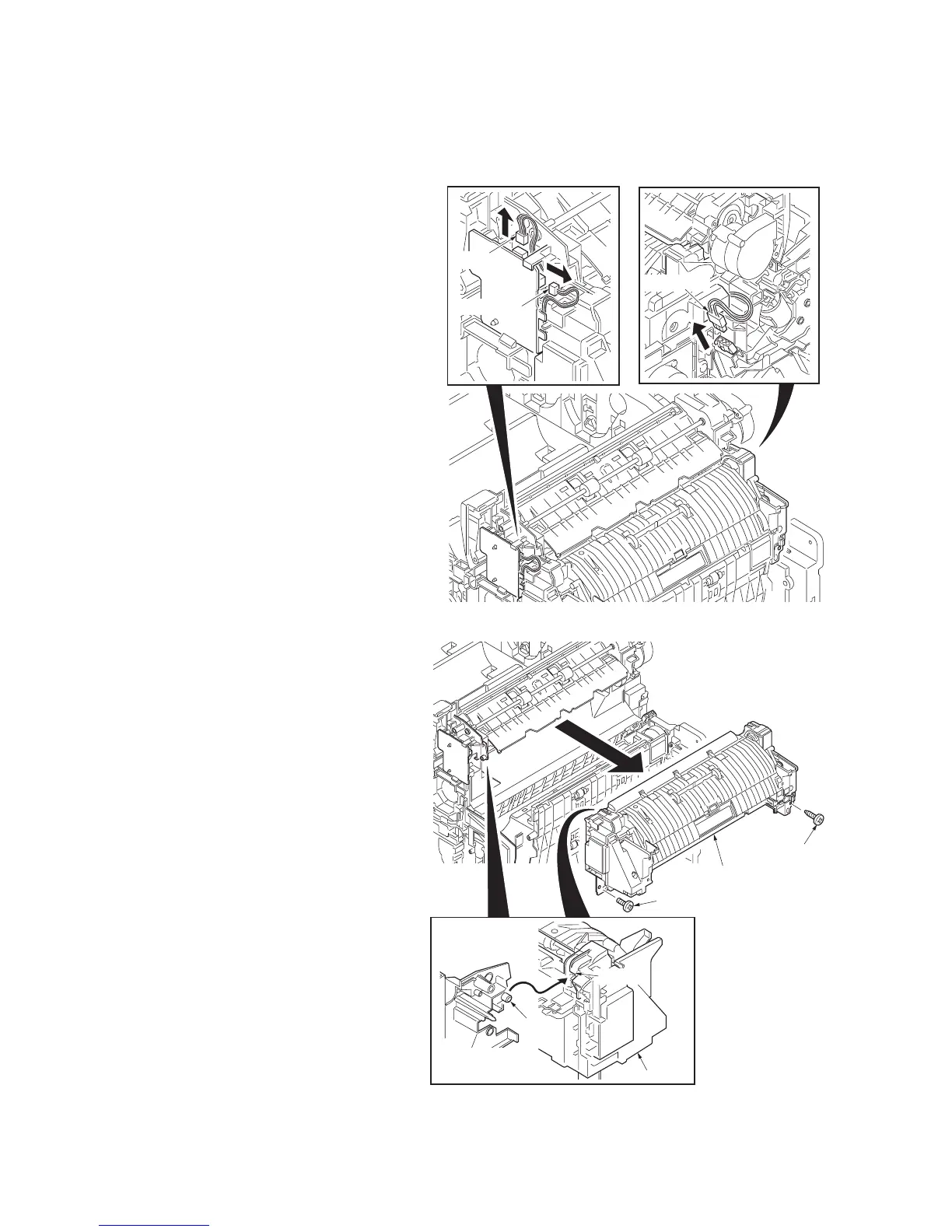

(1) Detaching and refitting the fuser unit
Procedure
1. Remove the outer covers (See page 1-5-3).
2. Remove three connectors.
Figure 1-5-33
3. Remove two screws (P tight and S tight).
4. Unhook the hook and then remove the fuser
unit.
5. Check or replace the fuser unit and refit all
the removed parts.
Figure 1-5-34
Connector
Connector
Connector
Screw (S tight)
Screw
(P tight)
Boss
Fuser unit
Fuser unit
Hook
To Next Page
