Kyocera FS-C5350DN Service Manual

2K8
2-2-4
(2) Switches and sensors

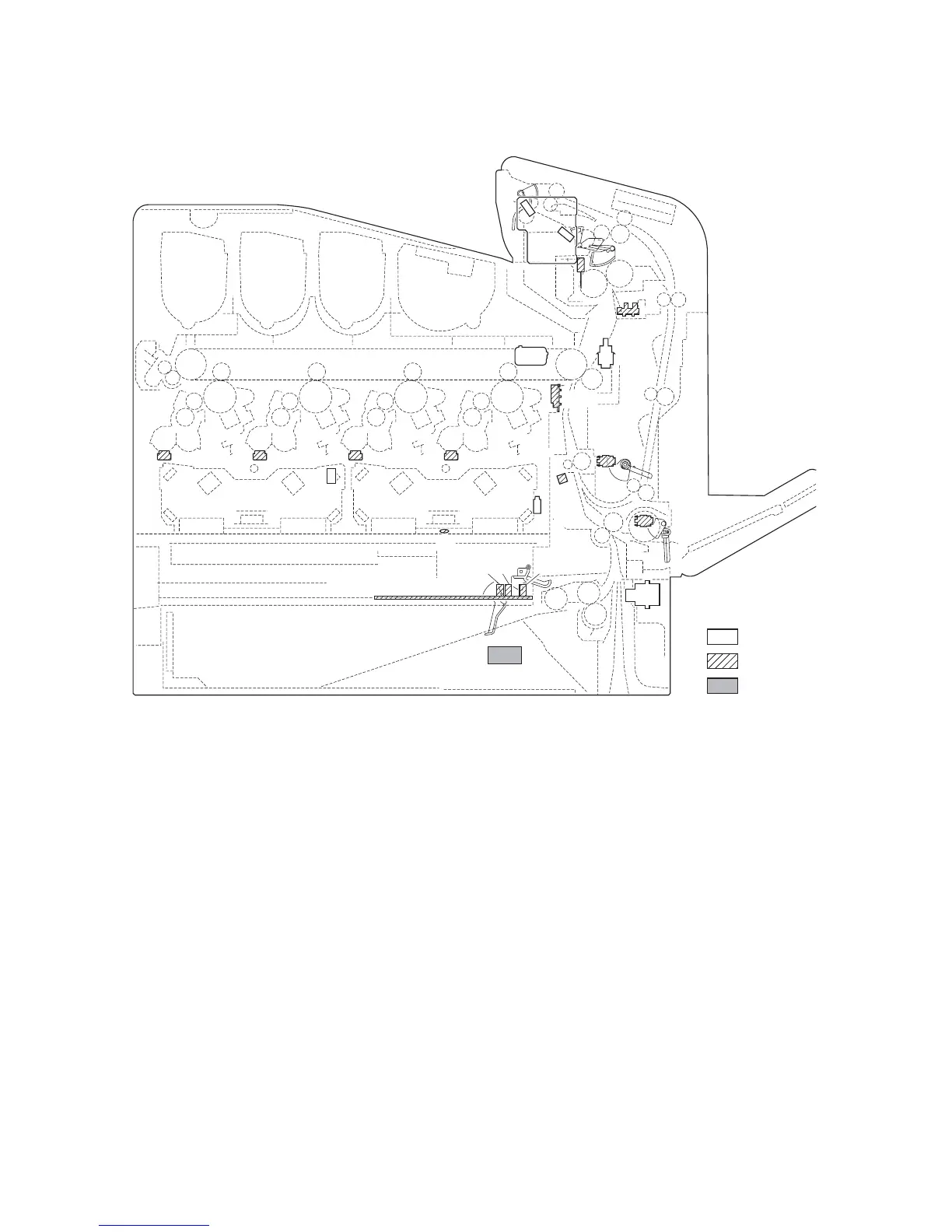

Figure 2-2-2 Switches and sensors
1. Power switch................................................ Turns ON/OFF the AC power source.
2. Interlock switch ............................................ Shuts off 24 V DC power line when the top cover and front cover are
opened.
3. Left cover switch .......................................... Shuts off 24 V DC power line when the left cover is opened.
4. Cassette size switch .................................... Detects the paper size dial setting of the paper setting dial.
5. Paper sensor 1............................................. Detects the presence of paper in the cassette.
6. Paper sensor 2............................................. Detects the presence of paper in the cassette.
7. Lift limit sensor ............................................. Detects activation of upper limit of the bottom plate in the cassette.
8. Registration sensor ...................................... Detects the timing of primary paper feed.
9. MP tray sensor............................................. Detects the presence of paper on the MP tray.
10. Duplex conveying sensor............................. Detects paper jam in the duplex section.
11. Paper exit sensor ......................................... Detects paper jam in the fuser/paper exit section.
12. Paper full sensor .......................................... Detects the paper full in the top tray.
13. Toner sensor M ............................................ Detects the toner density in the developing unit M.
14. Toner sensor C............................................. Detects the toner density in the developing unit C.
15. Toner sensor Y............................................. Detects the toner density in the developing unit Y.
16. Toner sensor K............................................. Detects the toner density in the developing unit K.
17. Right ID sensor ............................................ Measures image density for color calibration.
18. Left ID sensor............................................... Measures image density for color calibration.
19. Waste toner full sensor ................................ Detects the waste toner box being full.
20. Envelope switch ........................................... Detects the envelope mode setting.
Machine inside
Machine left
Machine right
21
3
19
1
4
56 7
12
11
22
2
10
8
9
16
17,18
151413
20
23

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
