Kyocera FS-C5350DN Service Manual

2K8
2-1-3
(2) MP tray paper feed section
The MP tray can contain about 150 sheets. Feeding from the MP tray is performed by the rotation of the MP paper feed
roller. Also, function of the MPF separation pad prevents paper from multiple feeding.

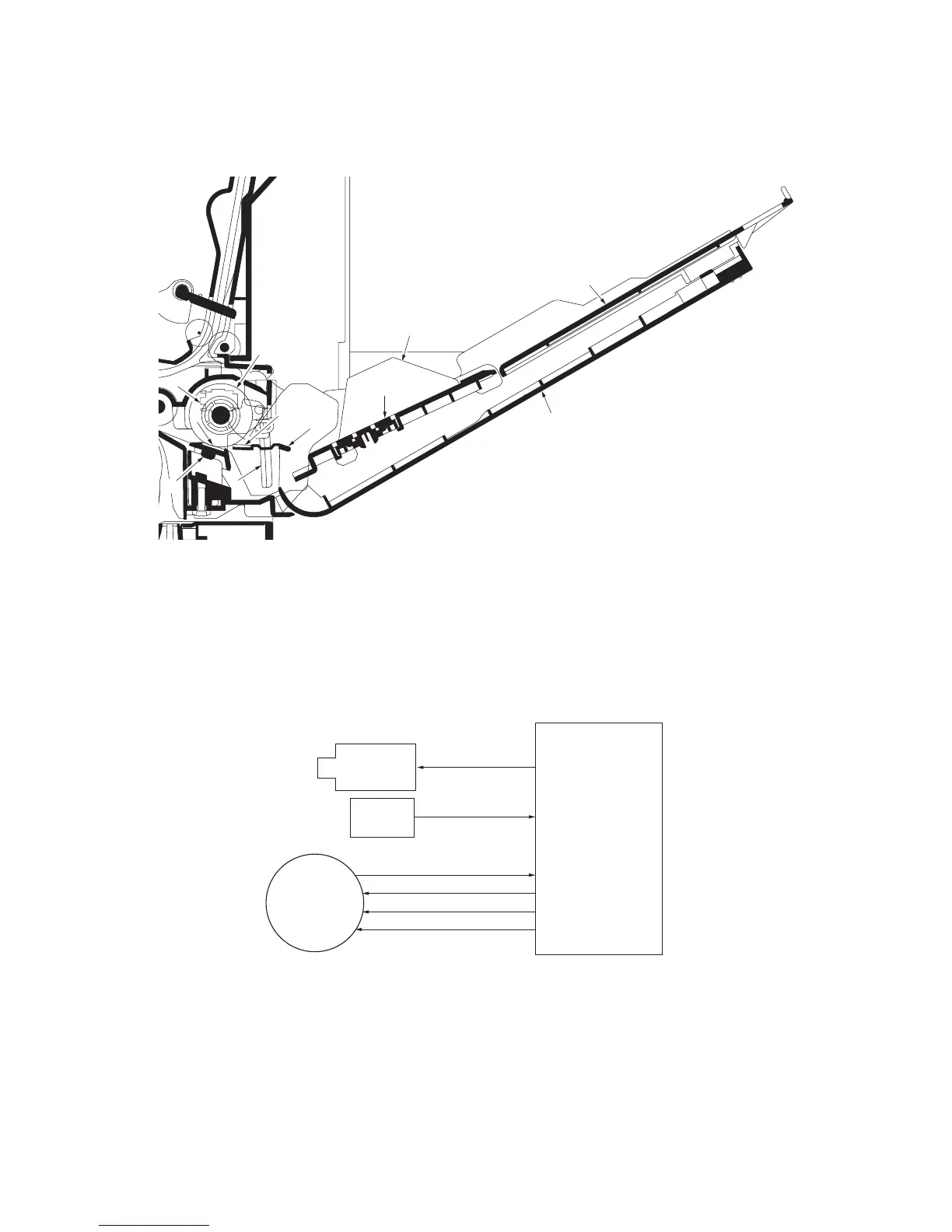

Figure 2-1-3 MP tray paper feed section
Figure 2-1-4 MP tray paper feed section block diagram
4
5
8
10
9
11
2
3
7
6
1
(1) MP paper feed roller
(2) MPF separation pad
(3) MPF separator
(4) MPF bottom plate
(5) MPF friction pad
(6) MP tray sensor
(7) Actuator (MP tray sensor)
(8) MPF guide R/L
(9) MPF base
(10) MPF upper tray
(11) MPF cover
MPSOLDRN
MP paper
feed solenoid
Engine PWB
YC40-2
MP tray
sensor
MPHANDS
YC21-6
FEMOTRDYN
Paper feed motor
SPEEDSEL
FECLKCLK
YC3-1
YC3-2
YC3-3
REMOTREN
YC3-4
