Kyocera FS-C5350DN Service Manual

2K8
1-4-25
(7) White streaks are printed vertically.
(8) Black streaks are printed vertically.
(9) Streaks are printed horizontally.
(10) Spots are printed.

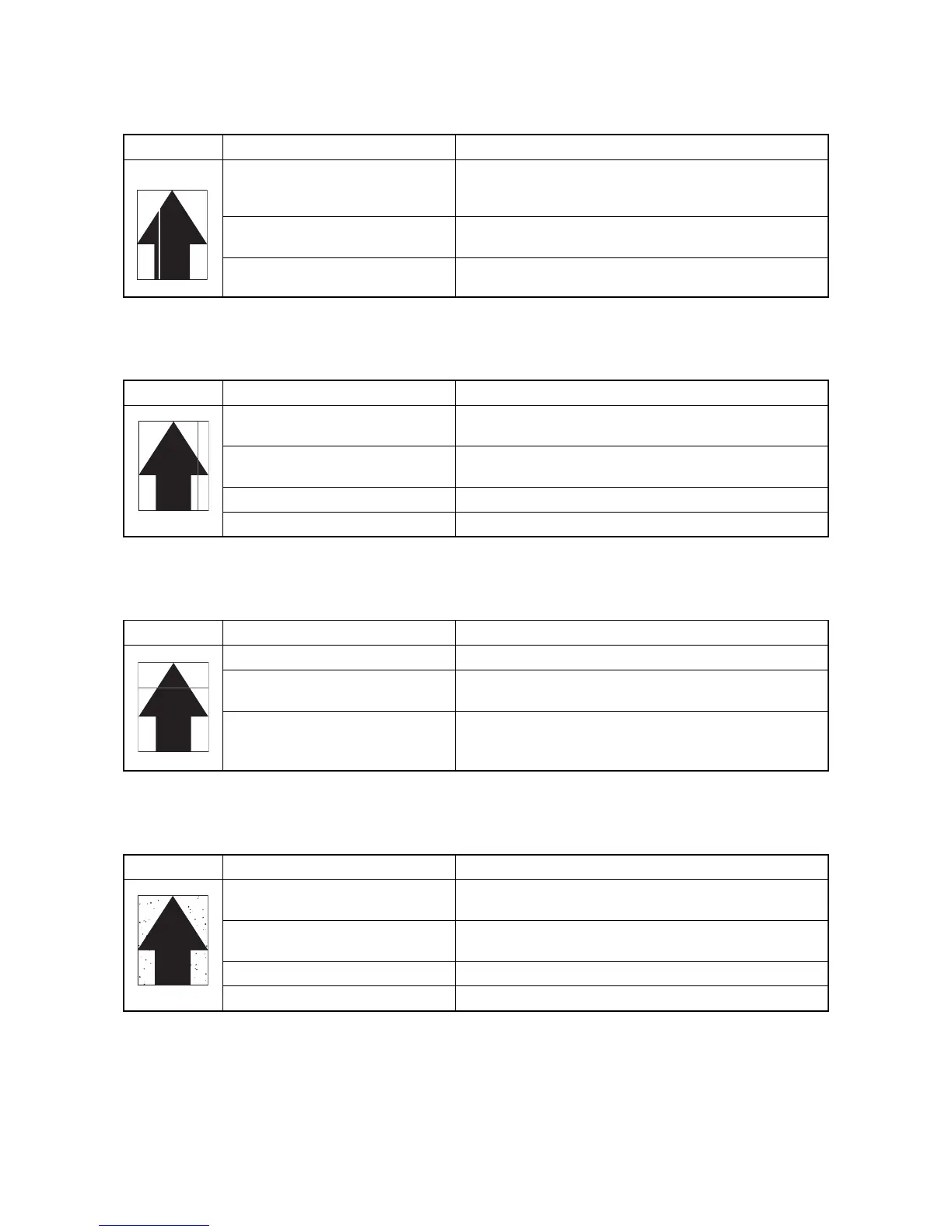

Print example Causes Check procedures/corrective measures
Foreign object in one of the develop-
ing units.
Check the image by using the test print of service mode. If the
white line appears on a particular page, replace the developer
for that color (See page 1-5-12).
Adhesion of soiling to primary transfer
belt.
Replace the intermediate transfer unit (See page 1-5-16).
Dirty LSU protective glass. Perform the LSU dust shield glass cleaning (See page 1-3-11).
Print example Causes Check procedures/corrective measures
Dirty or flawed drum. Perform the drum surface refreshing (See page 1-3-12).
Flawed drum. Replace the drum unit (See page 1-5-14).
Deformed or worn cleaning blade in
the drum unit.
Replace the drum unit (See page 1-5-14).
Worn primary transfer belt. Replace the intermediate transfer unit (See page 1-5-16).
Dirty main charger wire. Perform the main charger cleaning (See page 1-3-11).
Print example Causes Check procedures/corrective measures
Flawed drum. Replace the drum unit (See page 1-5-14).
Dirty developing section. Clean any part contaminated with toner in the developing sec-
tion.
Poor contact of grounding terminal of
drum unit.
Check the installation of the drum unit. If it operates incor-
rectly, replace it (See page 1-5-14).
Print example Causes Check procedures/corrective measures
Dirty or flawed drum. Perform the drum surface refreshing (See page 1-3-12).
Flawed drum. Replace the drum unit (See page 1-5-14).
Deformed or worn cleaning blade in
the drum unit.
Replace the drum unit (See page 1-5-14).
Flawed developing roller. Replace the developing unit (See page 1-5-12).
Dirty heat roller and press roller. Clean the heat roller and press roller.

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
