Kyocera FS-C5350DN Service Manual

2K8
2-1-19
2-1-7 Paper exit/feed shift section
The paper exit/feedshift section consists of the conveying path which sends the paper that has passed the fuser section to
the top tray or the duplex section. The conveying path is switched by the change guide activated by the duplex solenoid.

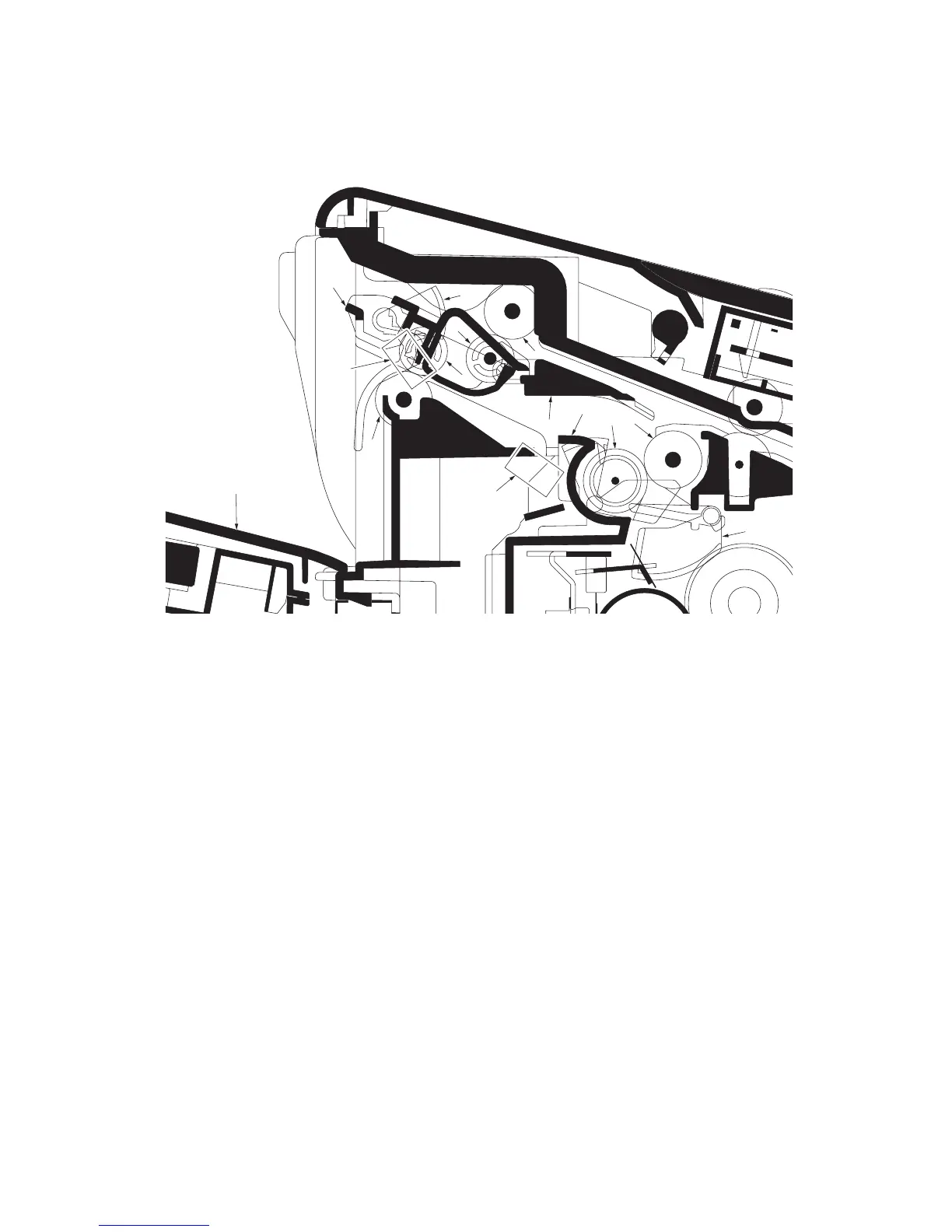

Figure 2-1-20 Paper exit/feed shift section
13
12
8
14
3
2
5
1
4
9
11
7
6
10
(1) Paper exit roller
(2) Paper exit pulley
(3) Paper exit sensor
(4) Actuator (paper exit sensor)
(5) Actuator (paper exit sensor)
(6) Change guide
(7) Paper exit upper guide
(8) FD roller
(9) Middle pulley
(10) Switchback roller
(11) Middle pulley
(12) Paper full sensor
(13) Actuator (paper full sensor)
(14) Top tray

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
