2-1-2 Drum section
(1) Drum section
The drum section consists of the drum, the main charger unit, and the cleaning unit, and the drum surface is uniformly
charged in preparation for formation of residual image by laser beam. After transfer is complete, toner remaining on the
drum surface is chipped off with the cleaning blade and is collected to the waste toner box with the drum screw. Also elec-
tric charge remaining on the drum surface is eliminated by irradiating the eraser lamp for preparing for next charge of the
main charger.

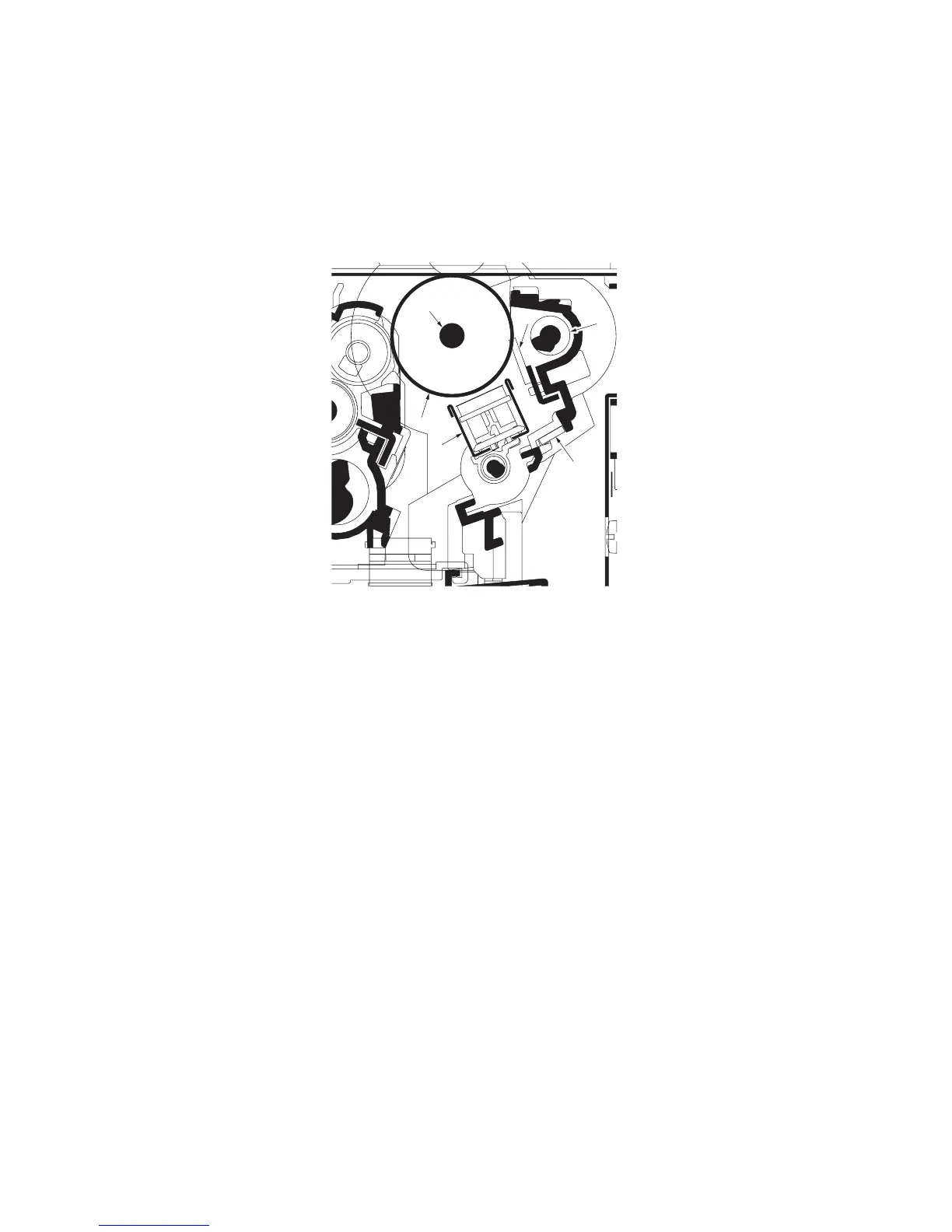

Figure 2-1-7 Drum section
1
3
2
6
5
4
(1) Drum
(2) Drum shaft
(3) Main charger unit
(4) Cleaning blade
(5) Drum screw
(6) Eraser lamp

Kyocera FS-C5350DN Specifications

General

Color	Yes
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	256 MB
Processor model	PowerPC 750CL
Maximum internal memory	1280 MB
Sound power level (standby)	36 dB
Sound pressure level (printing)	55 dB
Total input capacity	150 sheets
Total output capacity	250 sheets
Maximum input capacity	2150 sheets
Maximum print size	210 x 297 mm
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Safety	GS, TÜV, CE
Power management	AC 220 - 240 V, 50/60 Hz
Custom media sizes	70 x 138 mm - 216 x 356 mm
Networking features	10/100BaseTX
Power consumption (active)	516 W
Compatible operating systems	Windows, Mac OS X 10.2, UNIX, LINUX
Maximum duty cycle	100000 pages per month
Power consumption (standby)	74 W
Power consumption (PowerSave)	8 W

Weight and Dimensions

Dimensions (WxDxH)	345 x 518 x 480 mm
