1-5-33
14. Remove the two screws and then remove
the engine PWB.
15. Check or replace the engine PWB and refit
all the removed parts.
To replace the engine PWB, remove the
EEPROM (U4) from the old engine PWB
and mount it to the new engine PWB.
Caution on re-installing the engine board
assembly
Insert the engine PWB assembly in the
printer so that both the engine PWB and the
harness bracket are flush at each end.
Do not insert the engine PWB assembly the
way beyond the above, otherwise, the
engine PWB plate will be deformed, causing
malfunctioning of the ID sensor cleaning
system.

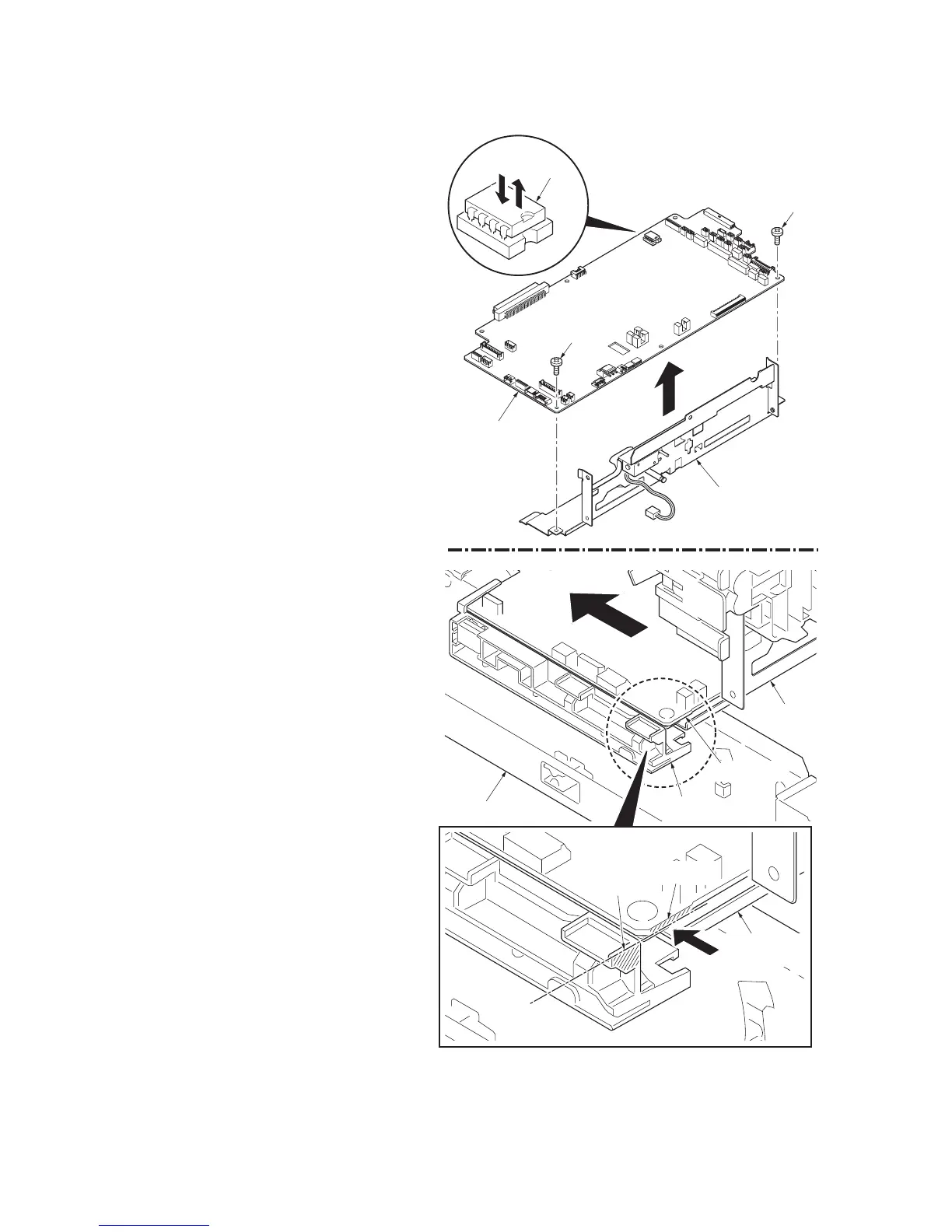

Figure 1-5-47
Printer
Side of
Harness
bracket
Insert
position
Engine PWB
Engine PWB
Engine PWB
Harness bracket
Engine PWB
assembly
Engine PWB
assembly
Engine PWB plate
EEPROM
U4
Screw
Screw
