Kyocera FS-C5350DN

2K8
1-5-36

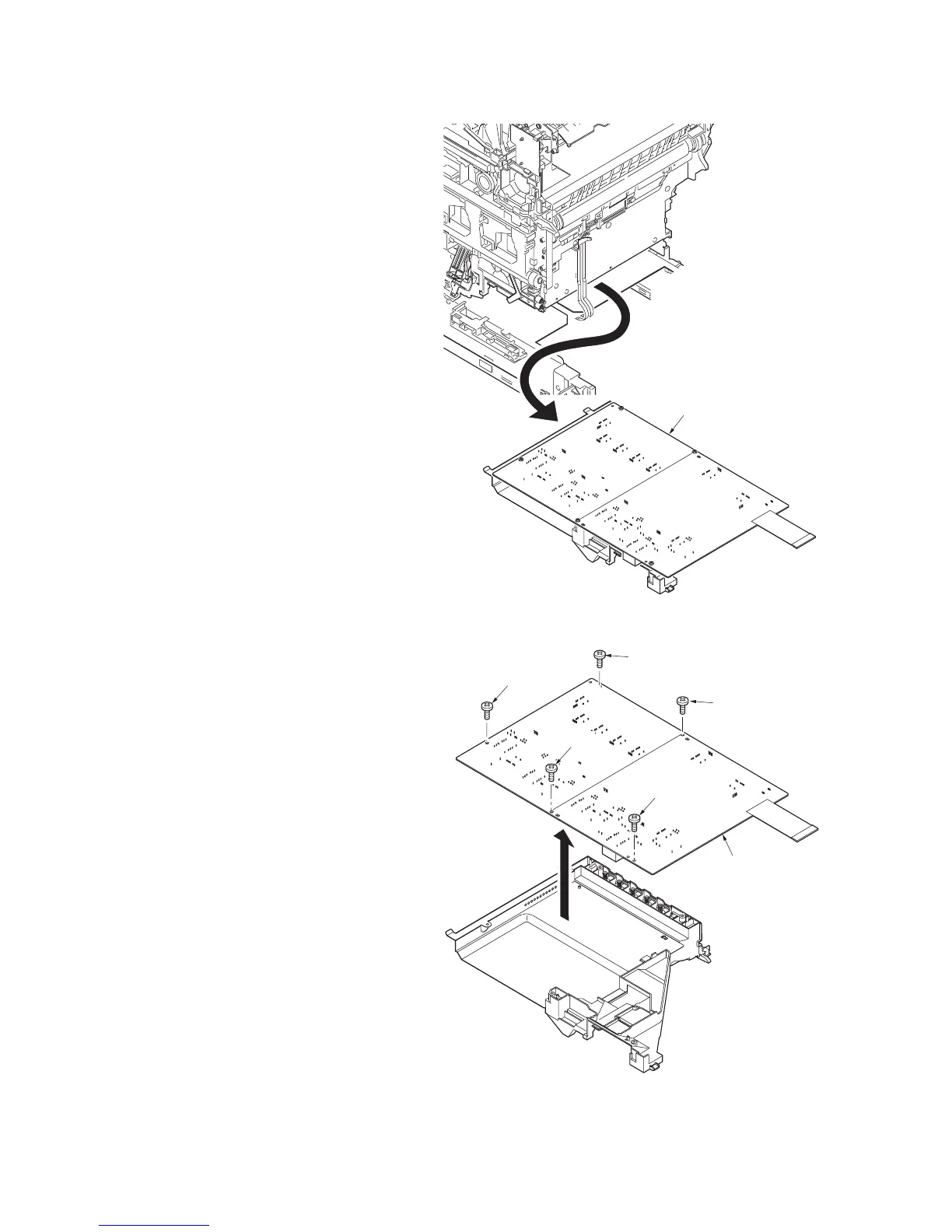

11. Remove the high voltage PWB assembly.
Figure 1-5-52
12. Remove five screws and then remove the
high voltage PWB.
13. Check or replace the high voltage PWB and
refit all the removed parts.
Figure 1-5-53
High voltage PWB assembly
Screw
Screw
Screw
Screw
Screw
High voltage PWB
