Kyocera KM-2550

2FT
1-6-9
(5) Detaching and refitting the drawer forwarding pulley and drawer paper feed pulley
Follow the procedure below to replace the drawer forwarding pulley and drawer paper feed pulley.
Procedure
1. Remove the main body from the paper
feeder (see page 1-6-7).
2. Remove the lower paper feed unit (see page
1-6-8).
3. Remove the drawer rear cover.
4. Remove the stop ring and drawer paper
feed clutch from the machine rear side.
Remove the stop ring and bushing.

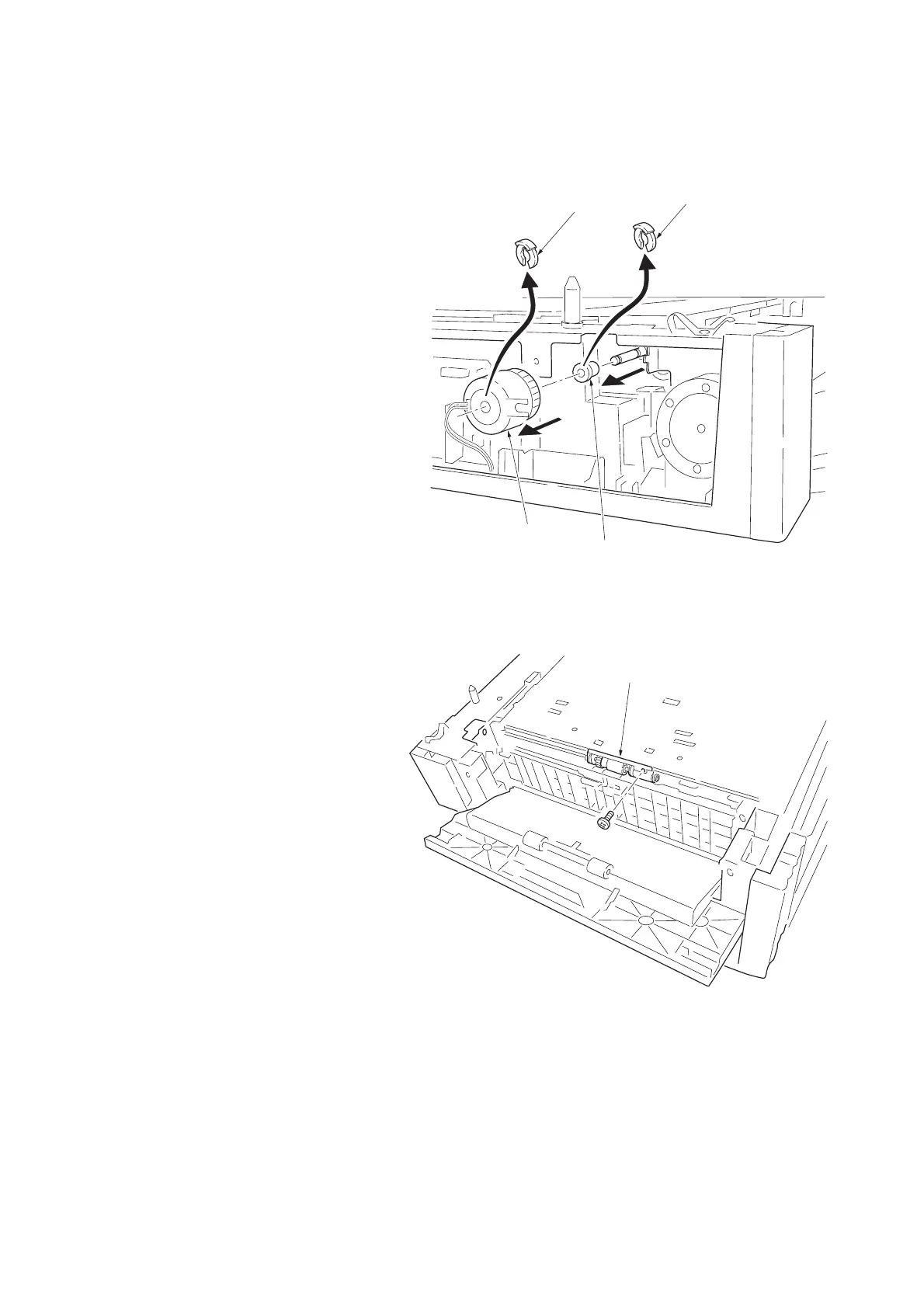

Figure 1-6-13
5. Remove the screw and then the upper
paper feed unit.
Figure 1-6-14
Drawer paper
feed clutch
Stop ring
Bushing
Stop ring
Upper paper feed unit
