1-6-2 Paper feed section
(1) Detaching and refitting the separation pulley
Follow the procedure below to replace the separation pulley.
Procedure
1. Open the front cover and left cover. Remove
the waste toner box.
2. Pull out the drawer.

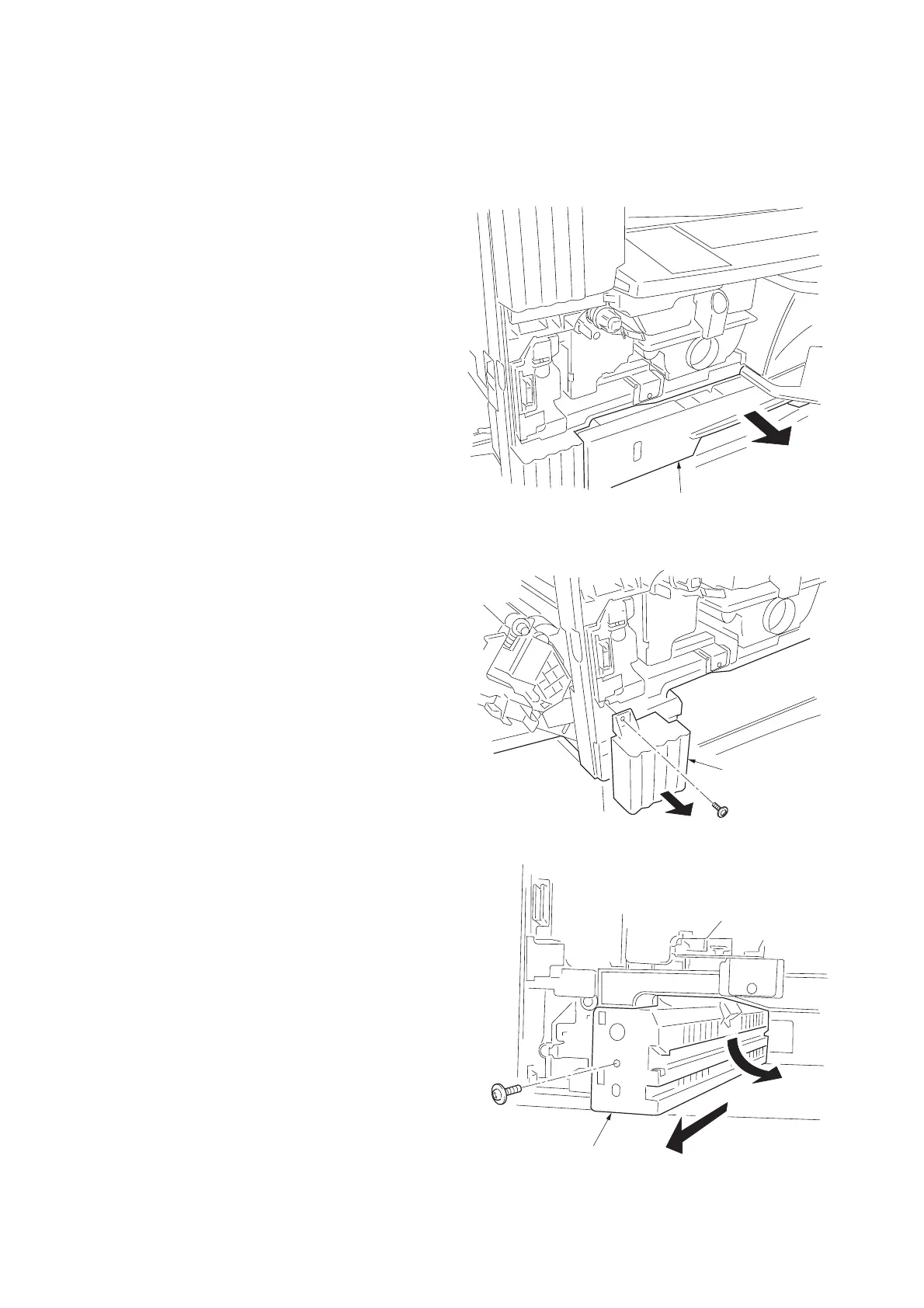

Figure 1-6-1
3. Remove the screw and then the front left
lower cover.
Figure 1-6-2
4. Remove the screw and then the lower paper
feed unit.
Figure 1-6-3
Drawer
Front left lower
cover
Lower paper feed unit
