Kyocera KM-2550

2FT
2-2-4
(3) Motors

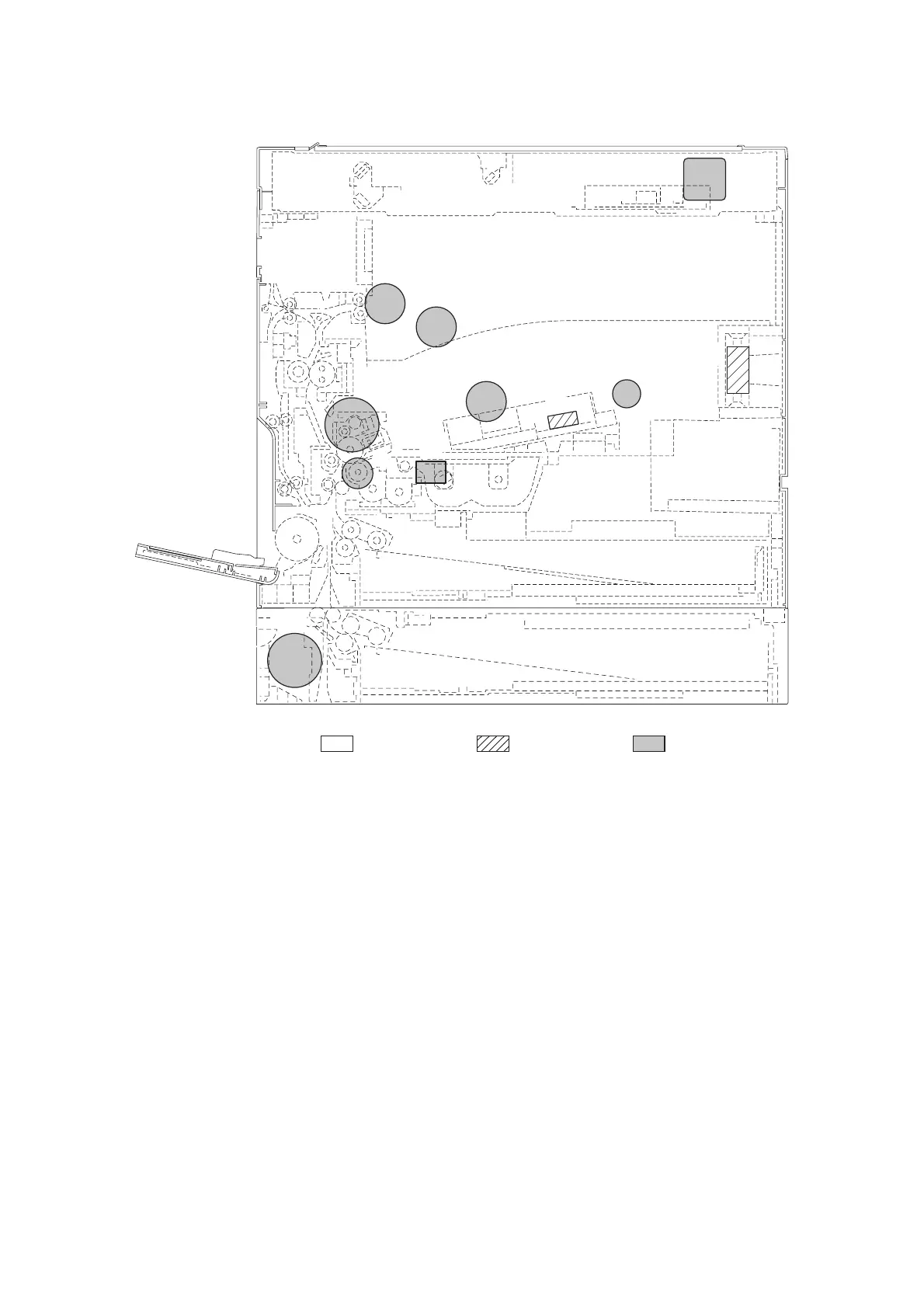

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Scanner motor (SM)..................................... Drives the optical system.
3. Exit motor (EM)............................................ Drives the exit section.
4. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
5. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
6. Cooling fan motor 3 (CFM3) ........................ Cools the machine interior.
7. Cooling fan motor 4 (CFM4) ........................ Cools the machine interior.
8. Polygon motor (PM)..................................... Drives the polygon mirror.
9. Registration motor (RM)............................... Drives the registration roller
10. Drawer drive motor (DDM)........................... Drives the drawer section.
11. Toner motor (TM) ......................................... Agitates toner.
2
3
4
7
6
8
5
1
10
11
9
Machine front
Machine inside
Machine rear
