(4) Other electrical components

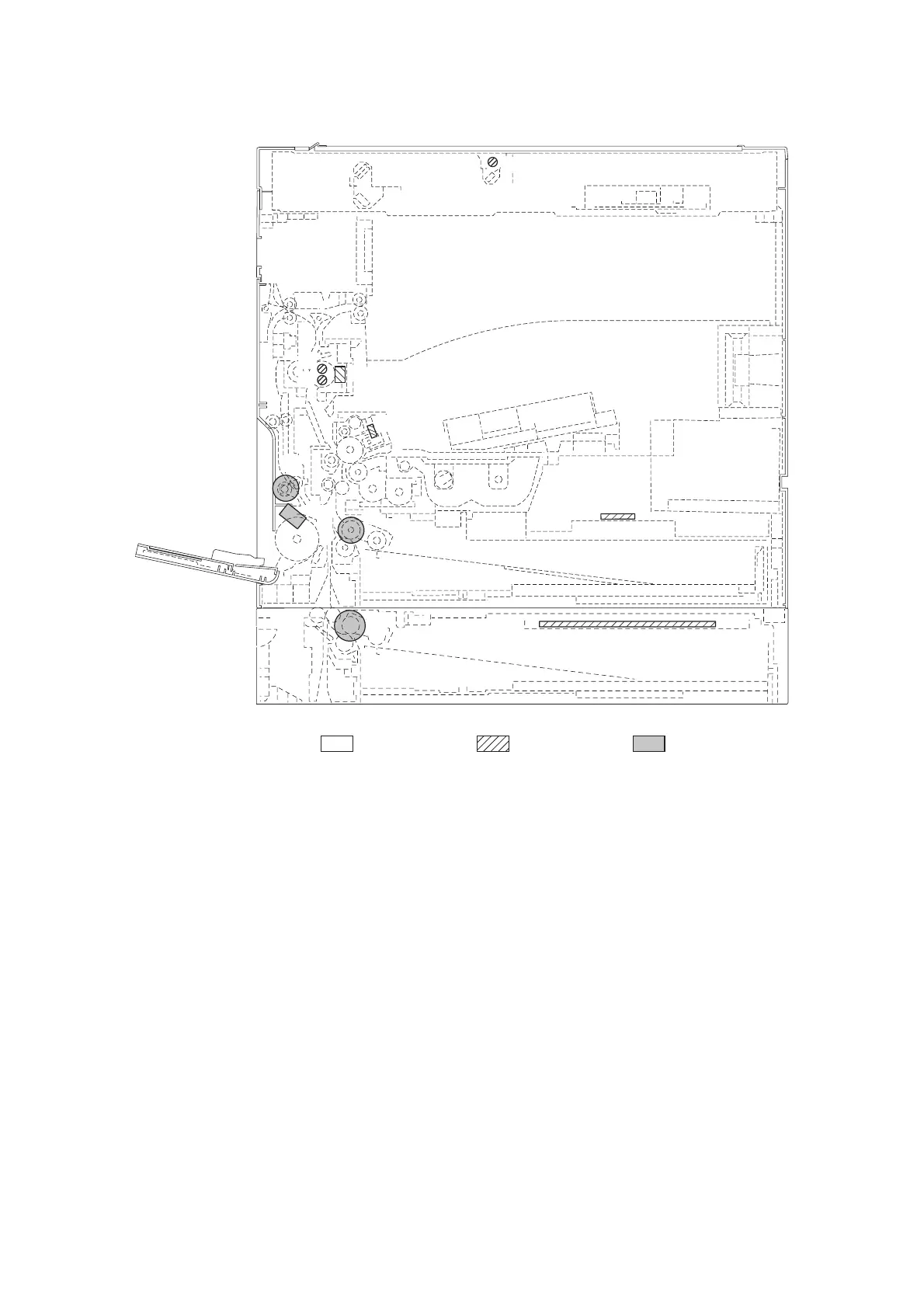

Figure 2-2-4 Other electrical components
1. Paper feed clutch (PFCL) ............................ Primary paper feed from the drawer.
2. Bypass paper feed solenoid (BYPPFSOL).. Primary paper feed from the bypass tray.
3. Exposure lamp (EL) ..................................... Exposes originals.
4. Cleaning lamp (CL) ...................................... Removes residual charge from the drum surface.
5. Fixing heater M (FH-M)................................ Heats the heat roller.
6. Fixing heater S (FH-S) ................................. Heats the heat roller.
7. Fixing thermostat (FTS) ............................... Prevents overheating in the fixing section.
8. Drawer heater (DH)* .................................... Dehumidifies the drawer section.
9. Drawer heater (DH)...................................... Dehumidifies the drawer section.
10. Drawer paper feed clutch (DPFCL).............. Primary paper feed from the drawer.
11. Duplex feed clutch (DUPFCL)* .................... Controls the drive of the duplex feed roller.
*: Optional.
3
7
11
4
1
2
8
9
6
5
10
Machine front
Machine inside
Machine rear
