2WA/2NJ/2RK
4-160

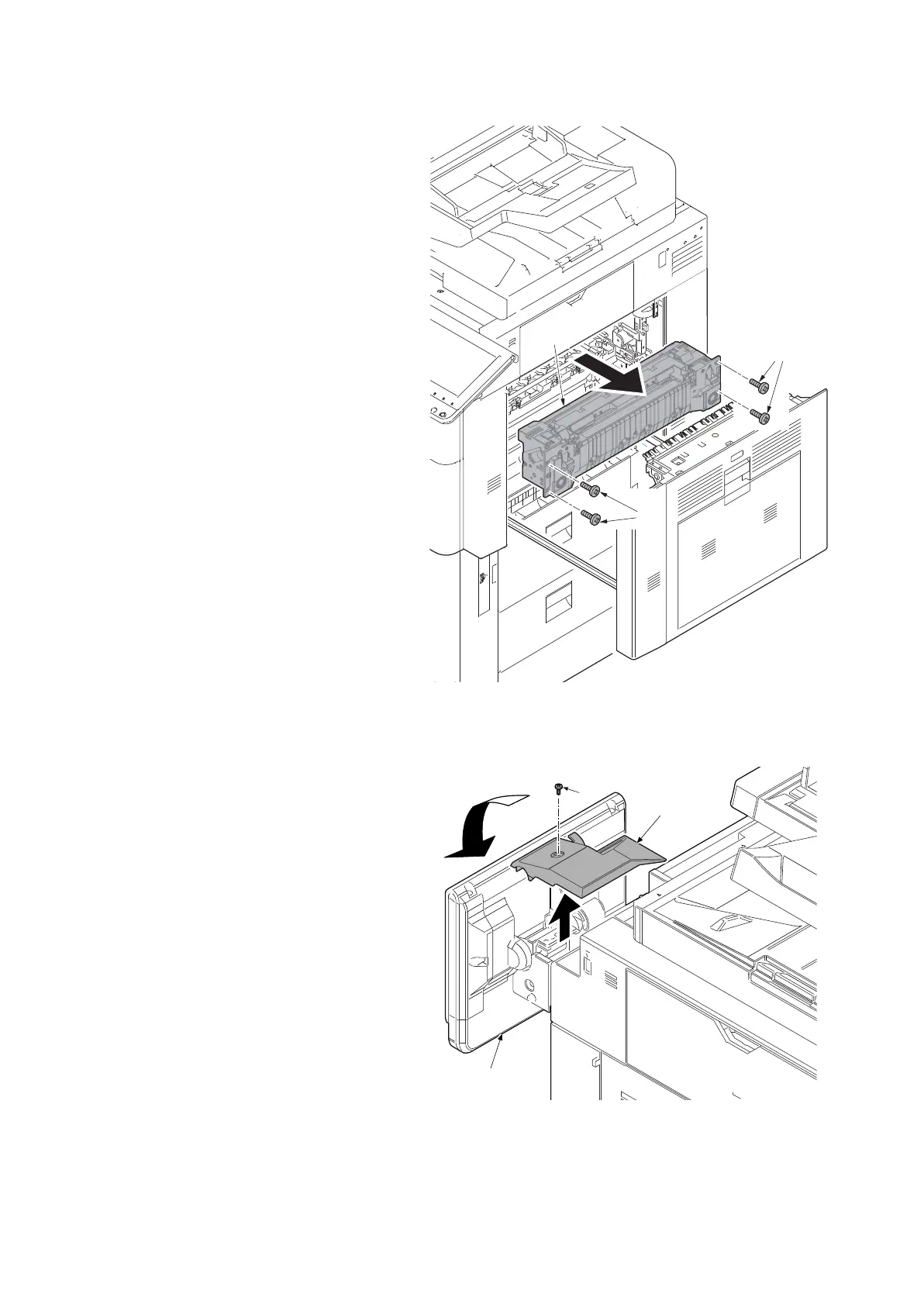

4. Remove four screws (a)(M4x12) and
remove the fuser unit (b).
Figure 4-237
5. Tilt up the operation unit (a).
6. Remove the screw (b)(M3x8) and
remove the operation unit rear side
cover (c) in the direction of the arrow.
Figure 4-238
a
b
a
14j0067
c
b
a
14j0214
