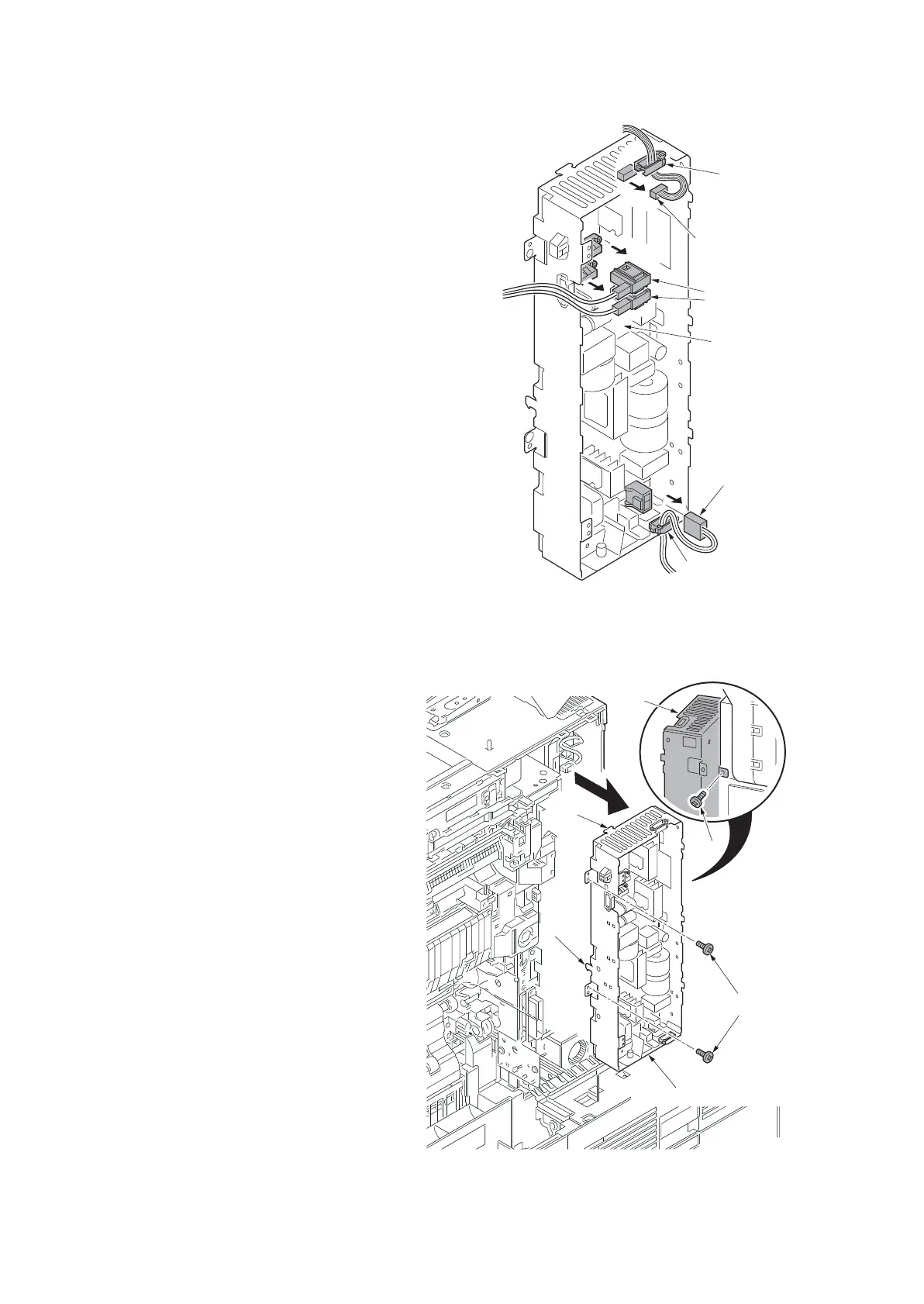

20. Release two wire saddles (a).
21. Disconnect four connectors (b) from the
IH PWB (c).
Figure 4-296
22. Remove three screws (a)(M4x8).
23. Release two hooks (b) and remove the
IH box assembly (c).
Figure 4-297
