17. Separate the KARA-MINIBU/KARA-MINIBUEX rigging structure from SB18#1 as follows:
a. Remove the four T-BLP from both KARA-MINIBUEX.
b. Lift the rigging structure up and separate it from SB18#1.
c. Rotate the four SB18#1 link arms down.
d. Lock the link arms in closed position by re-inserting the four T-BLP into the top SB18#1 link points.

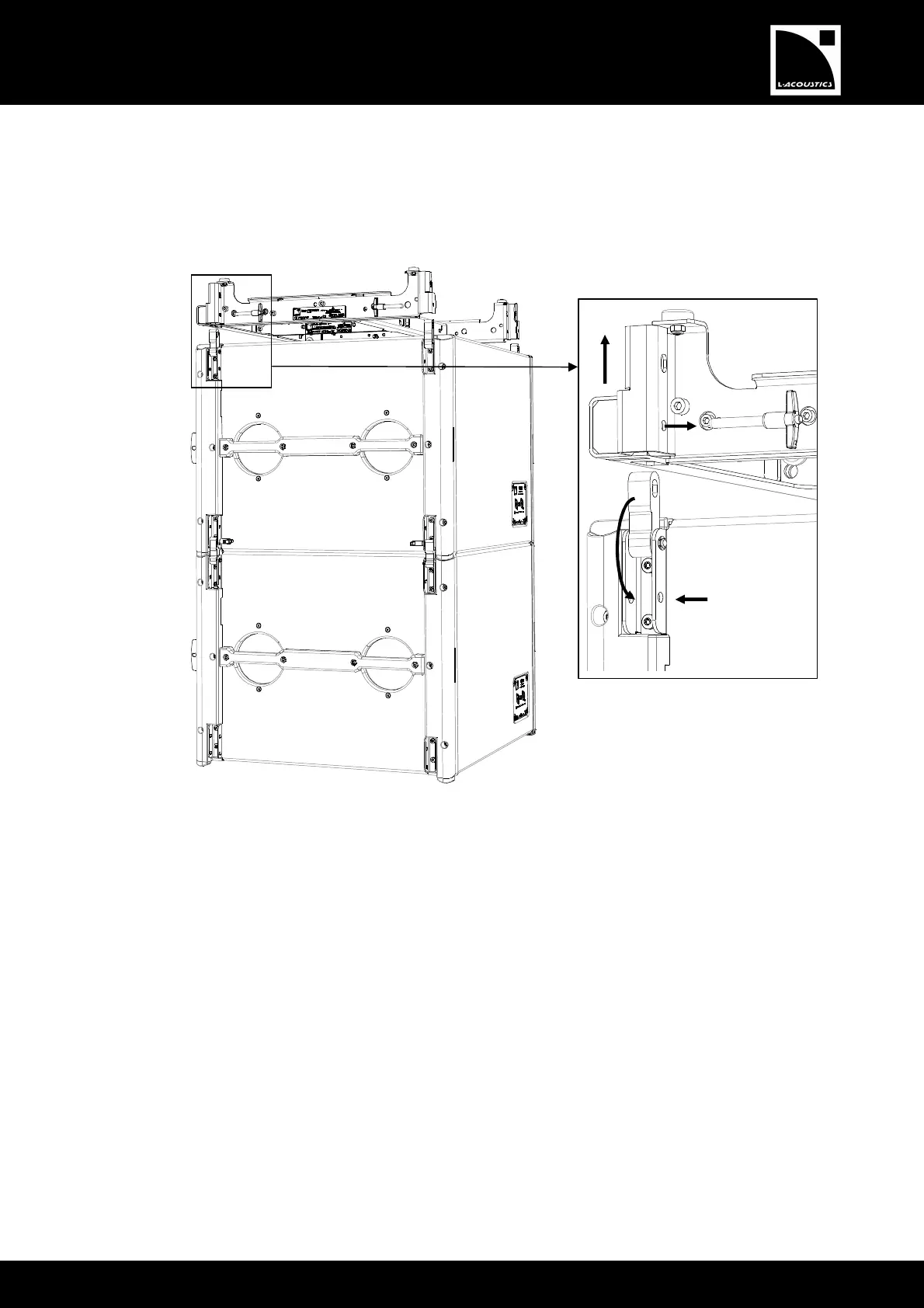

Figure 34: Separating the rigging structure from SB18#1
18. Attach a dolly board to each subwoofer.
19. Separate SB18#2 from SB18#1 by applying step 10 and remove both subwoofers from the rigging location.
(x4)
SB18#1
SB18#2
d.
b.
a.
c.
