KARA_SRM_EN_1-0
w w w . l - a c o u s t i c s . c o m
33
3333
33

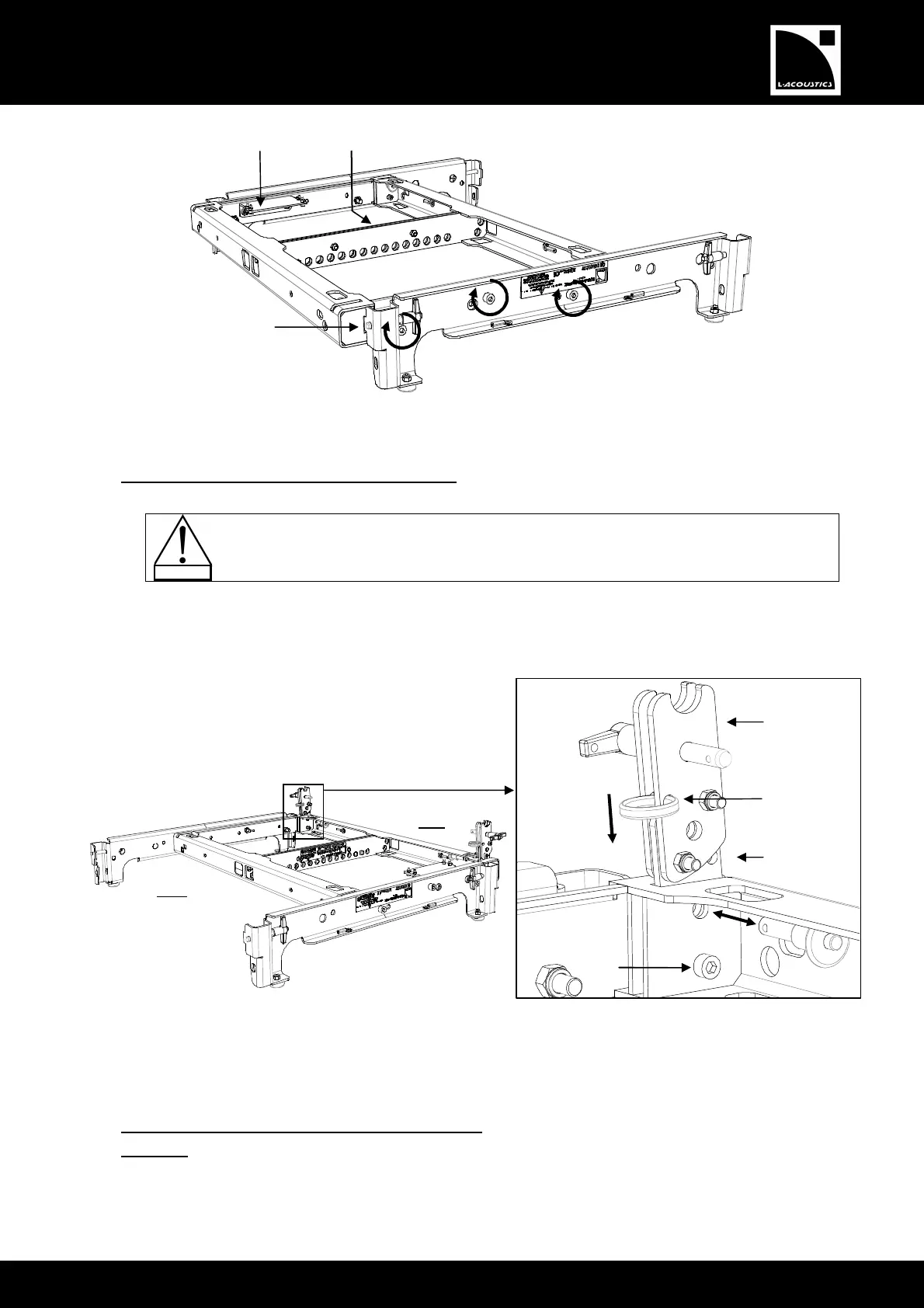

Figure 35: Assembling a KARA-MINIBU/KARAMINIBUEX stacking platform
2. If KARA-ANGARMEX are intended to be used [9.3.2], attach two KARA-ANGARMEX to the platform as follows:
a. Remove an R-BLP from a rear corner of the KARA-MINIBU.
When using KARA-ANGARMEX the platform must be put in front extension configuration
[9.3.1].
b. Insert the single part of a first KARA-ANGARMEX into the corner slit: position it vertically with sling ring
towards the front and indentation resting on the spacer.
c. Align the KARA-ANGARMEX and KARA-MINIBU holes and secure them together by re-inserting the R-BLP.
d. Repeat the procedure with a second KARA-ANGARMEX on the other rear corner of the KARA-MINIBU.
Figure 36: Attaching two KARA-ANGARMEX to the platform (front extension configuration)
3. Remove both front R-BLP from the KARA-MINIBU. Note: The front and rear sides are defined according to the
chosen configuration.
4. If KARA-ANGARMEX are attached to the KARA-MINIBU, remove both T-BLP from them.
Otherwise, remove both rear R-BLP from the KARA-MINIBU.
5. Bring a full KARA flight-case to the stacking location and remove the lid. In the following, the enclosures will be
designated as KARA#1 to KARA#3 from top to bottom.
inserted
Spacer
Sling ring
Rear
